Authorised Victron Energy Installer1 / 5MPPT: Ultra Fast Maximum Power Point Tracking By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing. Remote Monitoring and Control. Load output.
Source: Victron SmartSolar 75/10 to 100/20-48V datasheet
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
Solar, battery monitoring and remote access together.
| Model | Max PV voltage | Charge current | PV power at 12 V | Battery | Price | Source | |
|---|---|---|---|---|---|---|---|
| SmartSolar MPPT 75/10 | 75 V | 10 A | 145 W | 12/24 V | £53.21 | Datasheet | View |
| SmartSolar MPPT 75/15 This one | 75 V | 15 A | 220 W | 12/24 V | £56.97 | Datasheet | In stock |
| SmartSolar MPPT 100/20-48V | 100 V | 20 A | 290 W | 12/24/48 V | £57.99 | Datasheet | View |
| SmartSolar MPPT 100/30 | 100 V | 30 A | 440 W | 12/24 V | £94.99 | Datasheet | View |
| SmartSolar MPPT 100/50 | 100 V | 50 A | 700 W | 12/24 V | £127.99 | Datasheet | View |
Figures from the manufacturer's published specifications, linked per row. Sizing depends on your loads, battery bank and hook-up. Get it sized on a free 30-minute call
The first is the maximum PV open-circuit voltage, the second is the maximum charge current. A 100/30 takes up to 100 V from the panels and charges at up to 30 A.
The table shows nominal PV power at 12 V from the Victron datasheet. If more is connected, the controller limits input power.

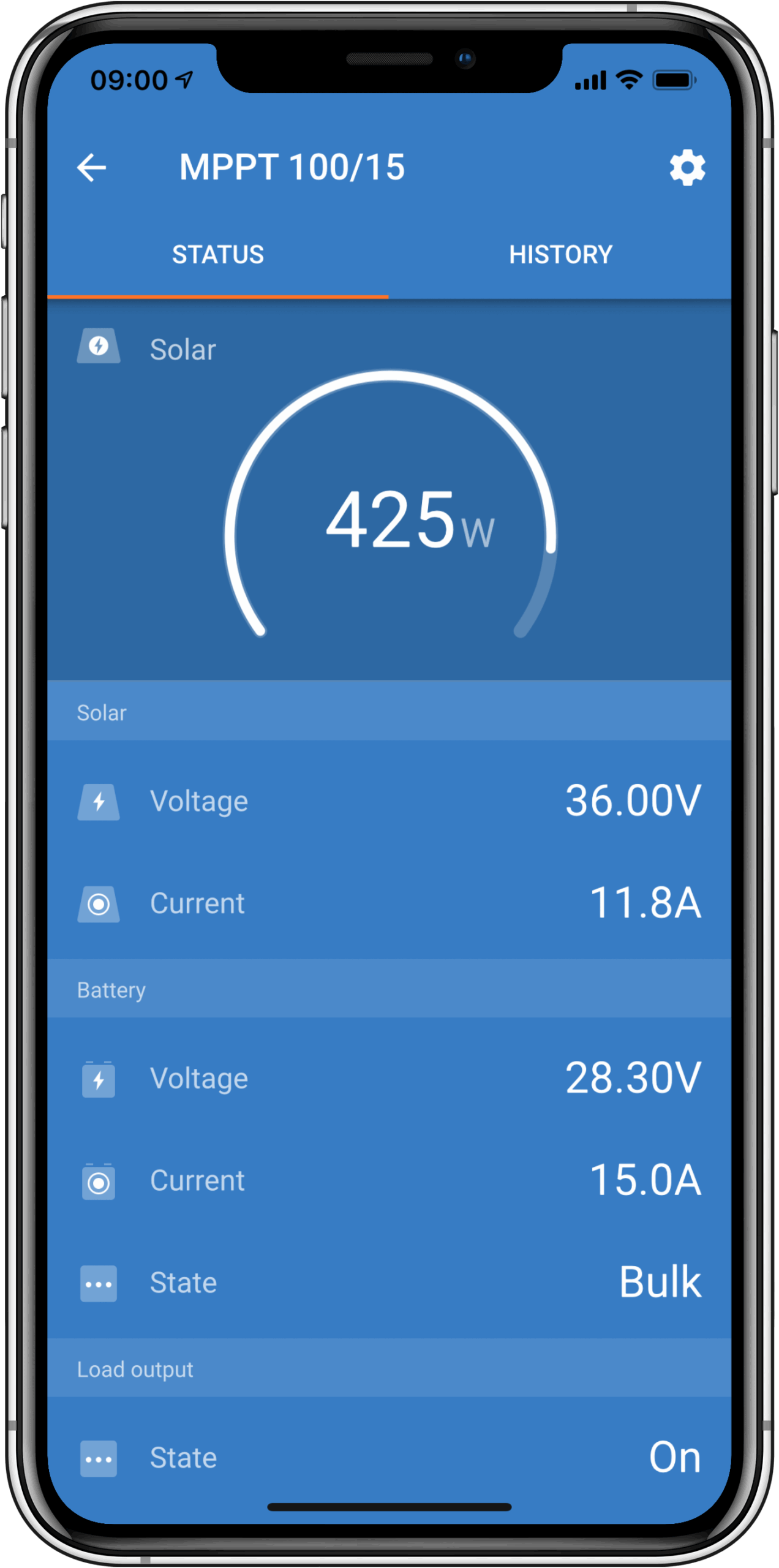

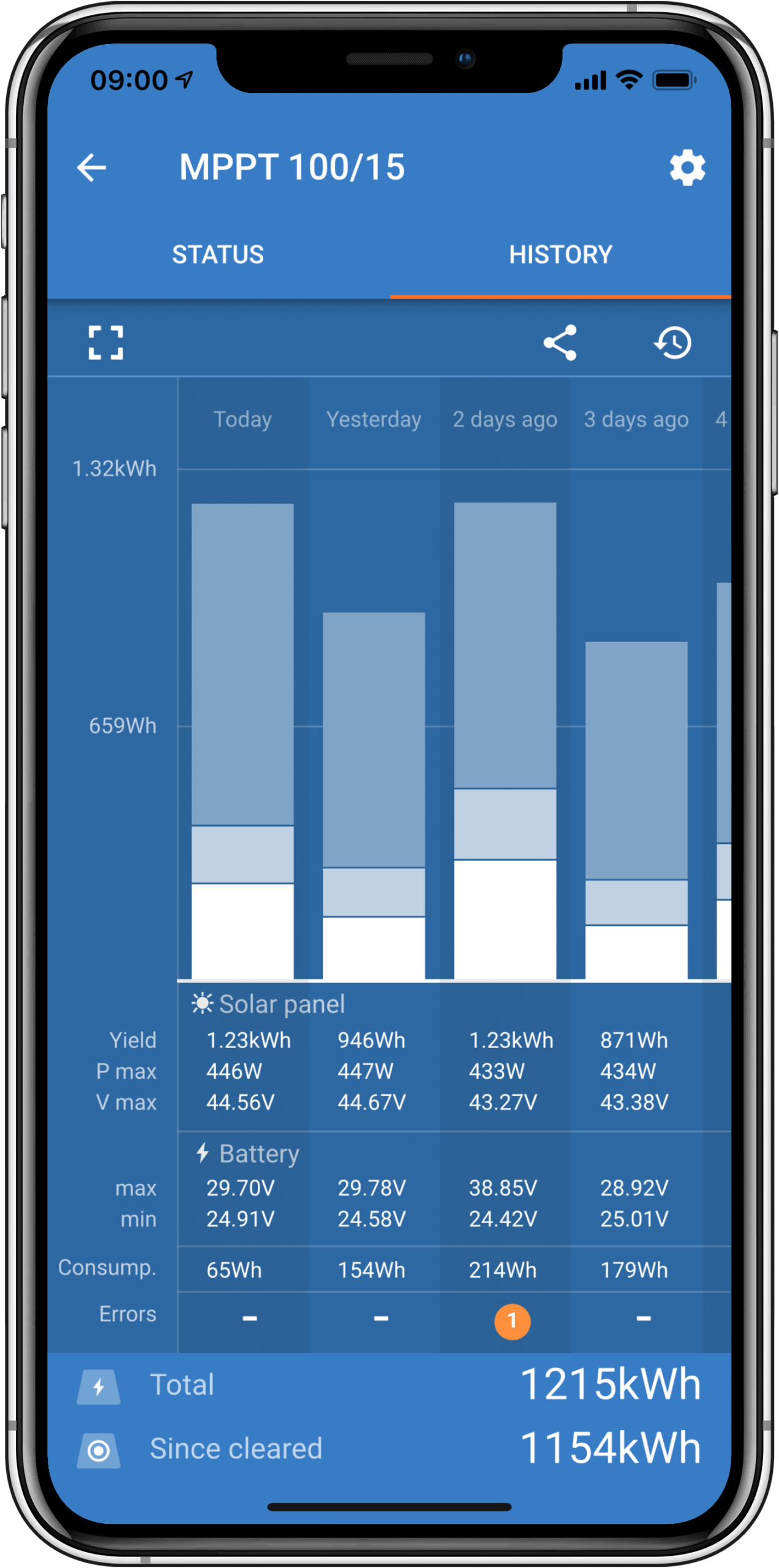

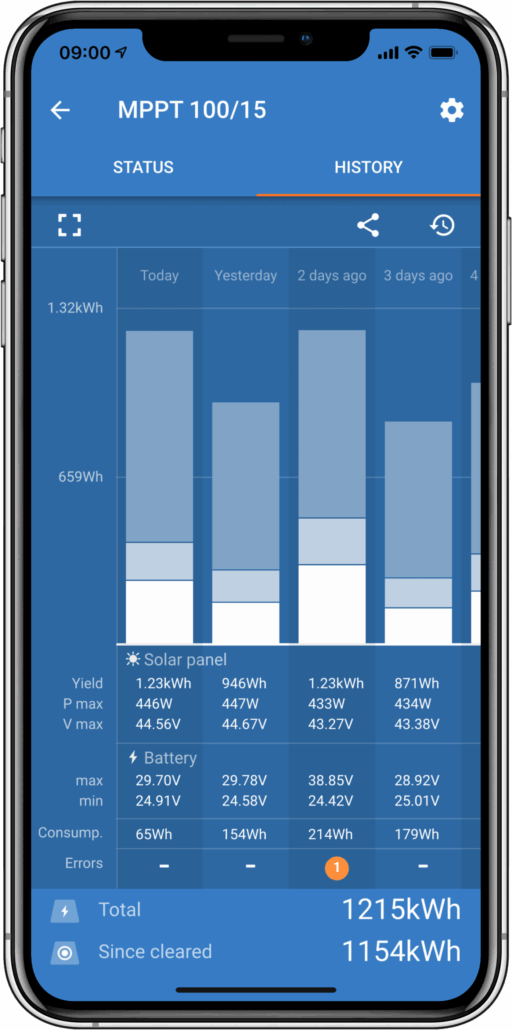

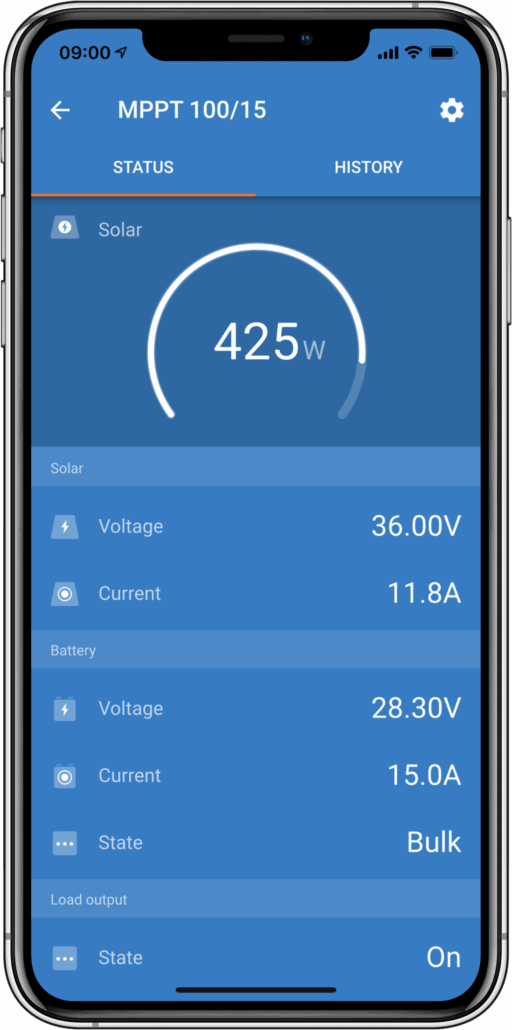

Yes. SmartSolar controllers have Bluetooth and are set up in the VictronConnect app.
