Authorised Victron Energy InstallerVictron SCC110050210 SmartSolar MPPT 100V / 50A1 / 6
Victron EnergyExcellent on Google

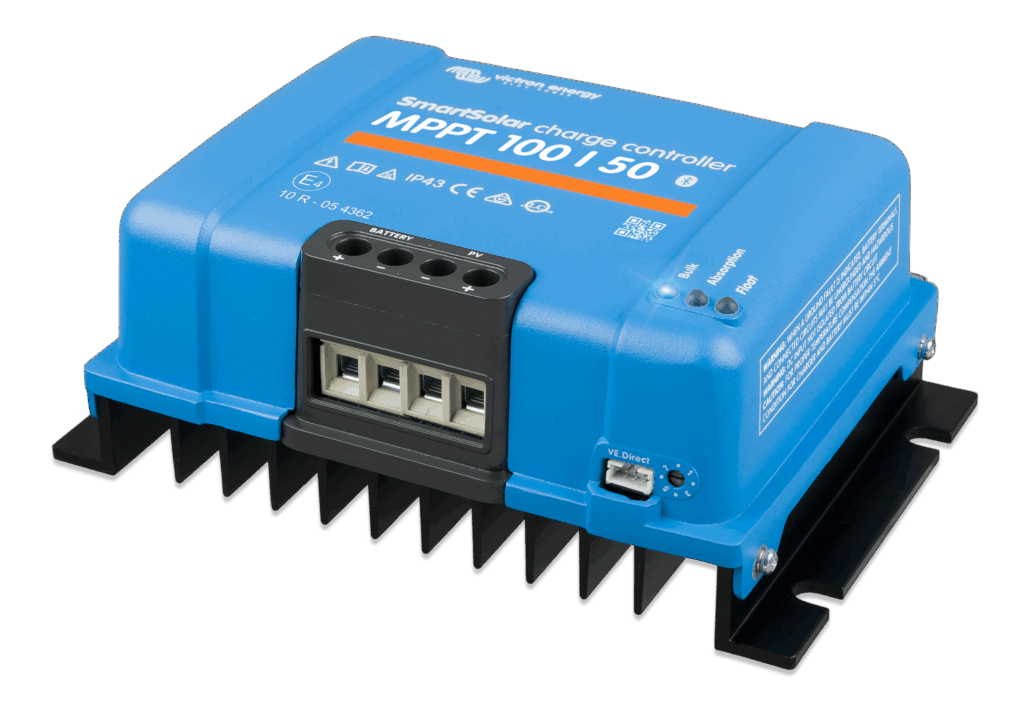

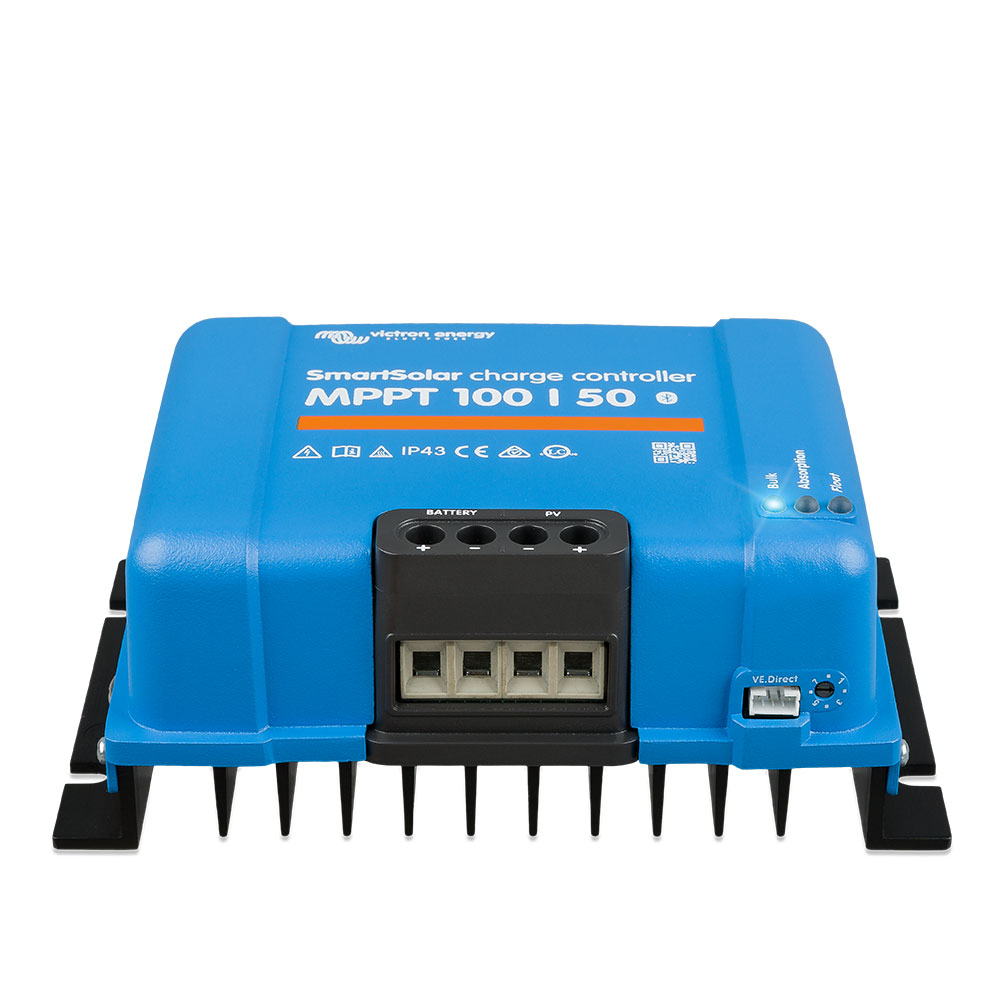

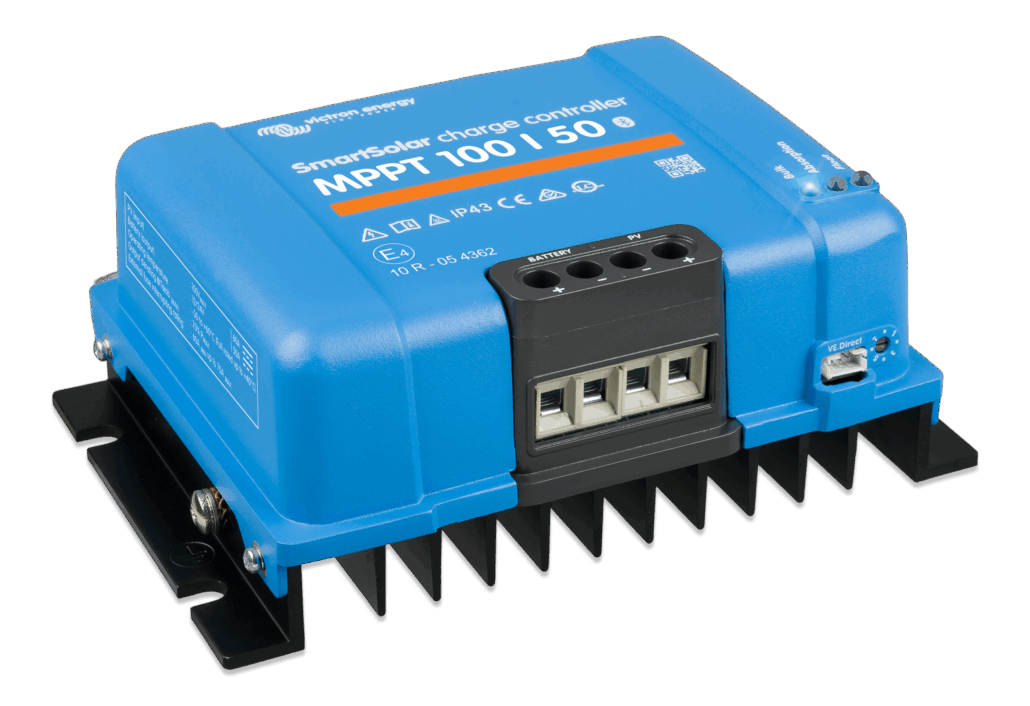

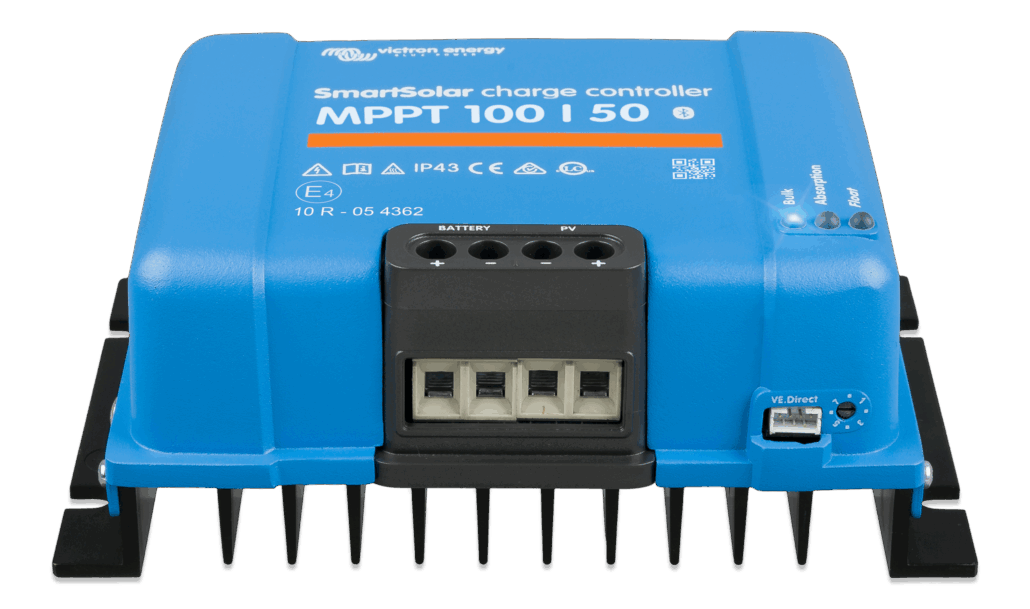

Victron SCC110050210 SmartSolar MPPT 100V / 50A

Victron part no. SCC110050210

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

100 VMax PV voltage
50 ACharge current
700 WPV power at 12 V
98%Peak efficiency

Source: Victron SmartSolar 100/30 & 100/50 datasheet

£127.99In stock · 56 available
Choose your model Compare sizes
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

  • Voltage: 12/24V
  • Rated Charge Current: 50A
  • Nominal PV Power, 12V: 700W
  • Max. PV Short Circuit Current: 60A
  • Max. PV Open Circuit Voltage: 100V
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Efficiency: 98%
  • Bluetooth Enabled: Yes
  • Dimensions: H130 x W186 x D70mm
  • Weight: 1.3Kg
  • Warranty: 5 Years

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on Victron), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature. Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

Complete the system

What we usually fit with it

Solar, battery monitoring and remote access together.

All three together£416.97
  • SCC110050210 SmartSolar MPPT 100V…£127.99
  • SmartShunt 500A / 50mV£80.99
  • Cerbo GX MK3 (BPP900451130)£207.99
Add all three to basket
Compare sizes

Which SmartSolar MPPT is right for you?

ModelMax PV voltageCharge currentPV power at 12 VBatteryPriceSource
SmartSolar MPPT 75/1075 V10 A145 W12/24 V£53.21DatasheetView
SmartSolar MPPT 75/1575 V15 A220 W12/24 V£56.97DatasheetView
SmartSolar MPPT 100/20-48V100 V20 A290 W12/24/48 V£57.99DatasheetView
SmartSolar MPPT 100/30100 V30 A440 W12/24 V£94.99DatasheetView
SmartSolar MPPT 100/50 This one100 V50 A700 W12/24 V£127.99DatasheetIn stock

Figures from the manufacturer's published specifications, linked per row. Sizing depends on your loads, battery bank and hook-up. Get it sized on a free 30-minute call

Questions

Before you buy

What do the two numbers mean?

The first is the maximum PV open-circuit voltage, the second is the maximum charge current. A 100/30 takes up to 100 V from the panels and charges at up to 30 A.

How much solar can I connect?

The table shows nominal PV power at 12 V from the Victron datasheet. If more is connected, the controller limits input power.

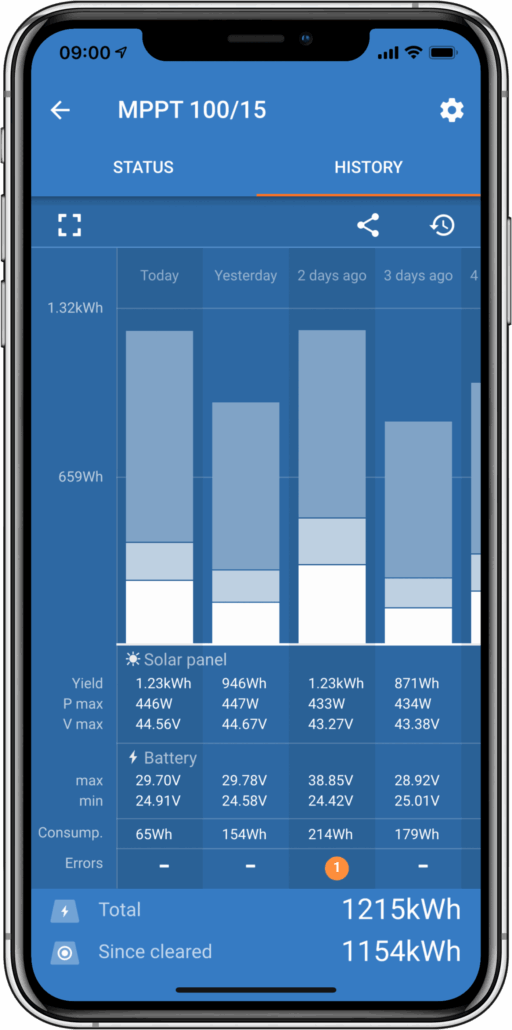

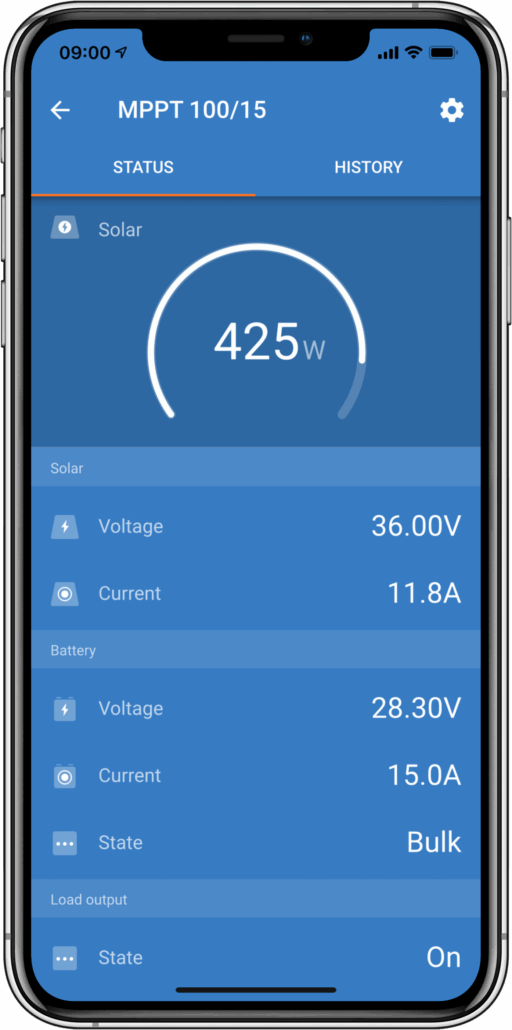

Can I see it on my phone?

Yes. SmartSolar controllers have Bluetooth and are set up in the VictronConnect app.

Building the whole system?

Get it designed with you, plus a wiring diagram to match

Free 30-minute call, Victron kit specified for your build, wiring diagram part for part.
