Authorised Victron Energy InstallerVictron SmartShunt 500A / 50mV1 / 4
Victron EnergyExcellent on Google

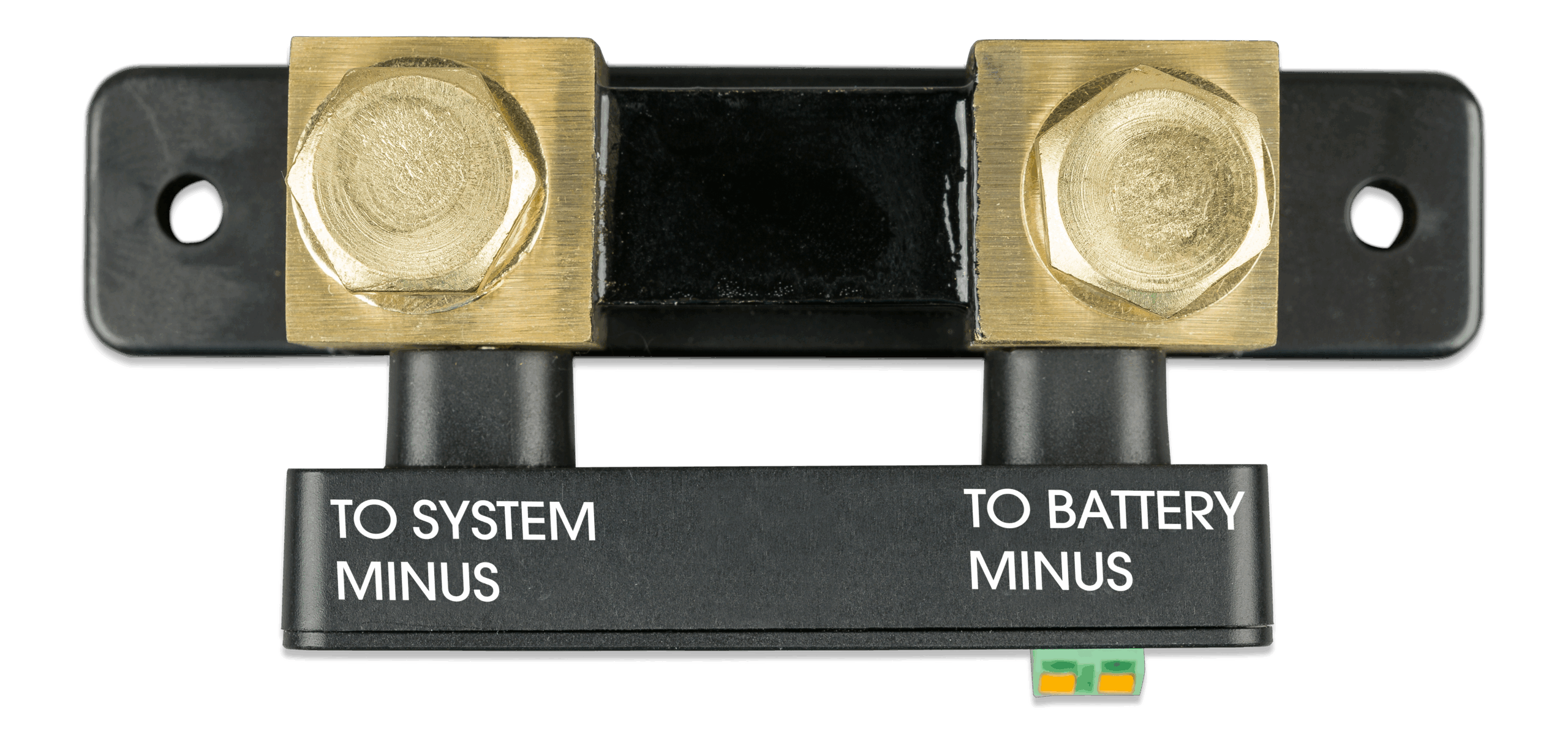

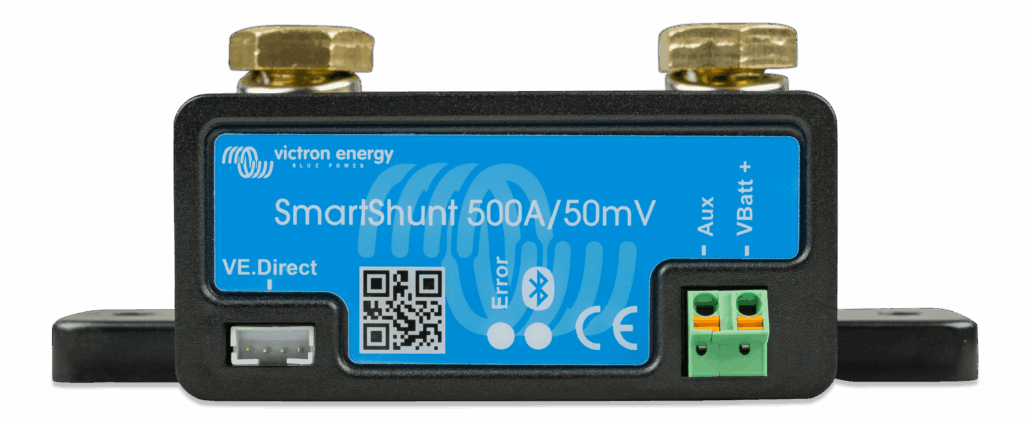

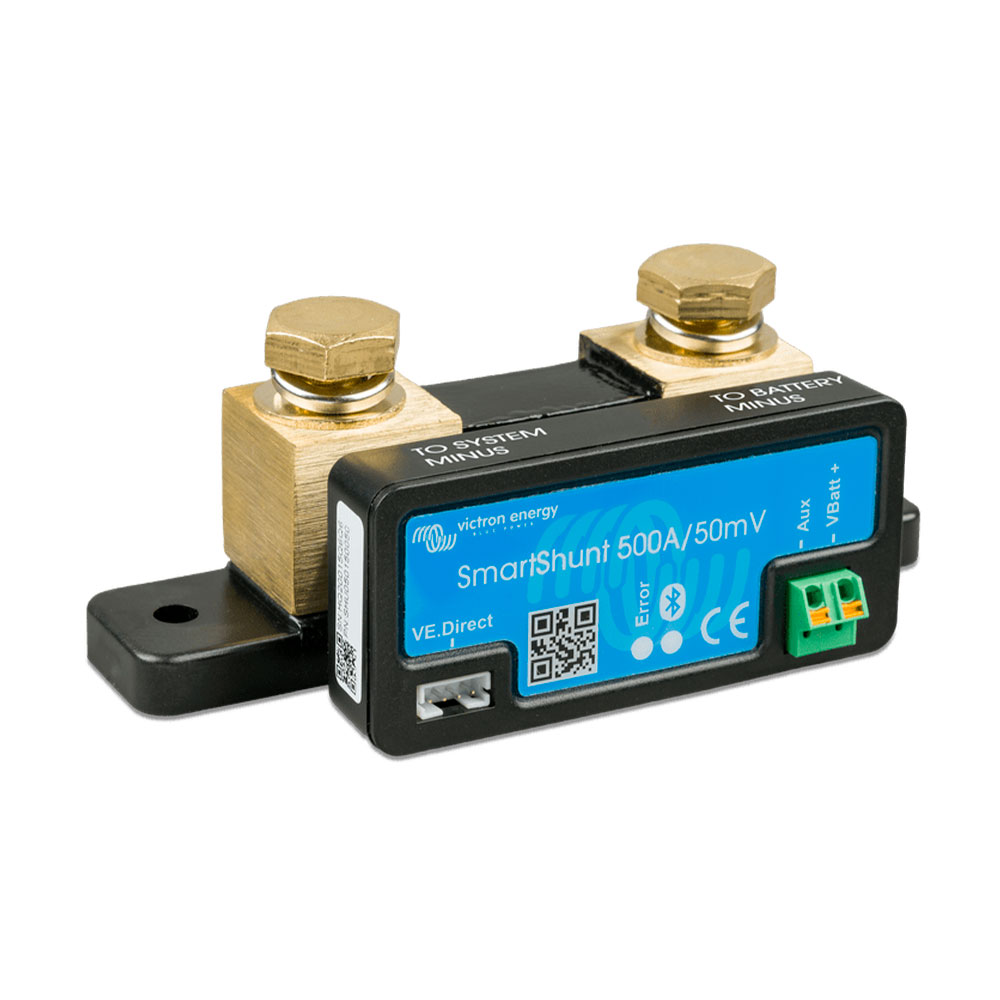

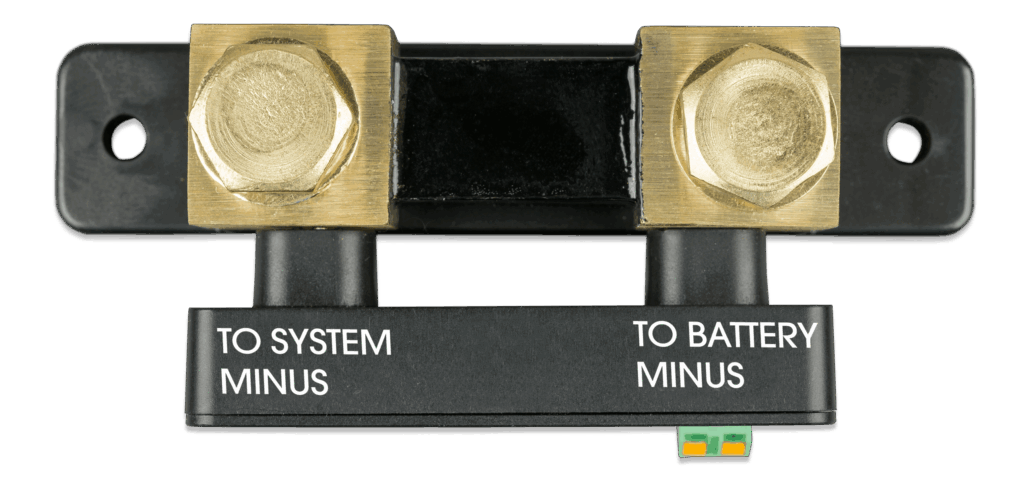

Victron SmartShunt 500A / 50mV

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

500 ARated current
6.5 to 70 VSupply voltage
±0.4%Current accuracy
IP21Protection

Source: Victron SmartShunt datasheet

£80.99In stock · 48 available
Choose your model Compare sizes
SmartShunt 300A300 A£52.99SmartShunt 500A/50mV500 A£80.99SmartShunt 2000A/50mV2000 A£207.92
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

  • Supply Voltage Range: 6.5-70VDC
  • Battery Capacity: 1-9999Ah
  • VE.Direct Communication Port: Yes
  • Protection Category: IP21
  • Dimensions: H46 x W120 x D54mm
  • Warranty: 5 Years

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Differences compared to BMV712 Battery Monitor

  • No programmable visual and audible alarm.
  • No programmable relay.
Complete the system

What we usually fit with it

Show your state of charge on a screen and on VRM.

All three together£466.97
  • SmartShunt 500A / 50mV£80.99
  • Cerbo GX MK3 (BPP900451130)£235.99
  • GX Touch 50 Display£149.99
Add all three to basket
Compare sizes

Which SmartShunt is right for you?

ModelRated currentDimensions (h×w×d)Shunt boltsPriceSource
SmartShunt 300A300 A44 × 120 × 44 mmM8£52.99DatasheetView
SmartShunt 500A/50mV This one500 A46 × 120 × 54 mmM10£80.99DatasheetIn stock

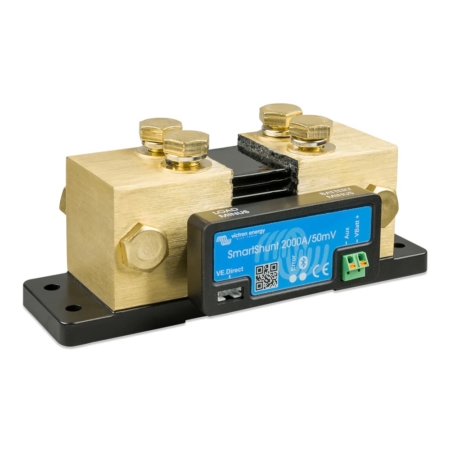

SmartShunt 2000A/50mV2000 A68 × 168 × 100 mmM10£207.92DatasheetView

Figures from the manufacturer's published specifications, linked per row. Sizing depends on your loads, battery bank and hook-up. Get it sized on a free 30-minute call

Questions

Before you buy

What does a SmartShunt do?

It measures current in and out of your battery and shows state of charge, voltage and time to go in the VictronConnect app.

Can it connect to a Cerbo GX?

Yes, via its VE.Direct port.

Building the whole system?

Get it designed with you, plus a wiring diagram to match

Free 30-minute call, Victron kit specified for your build, wiring diagram part for part.
