Authorised Victron Energy Installer1 / 5Victron part no. SCC110020160R
Source: Victron SmartSolar 75/10 to 100/20-48V datasheet

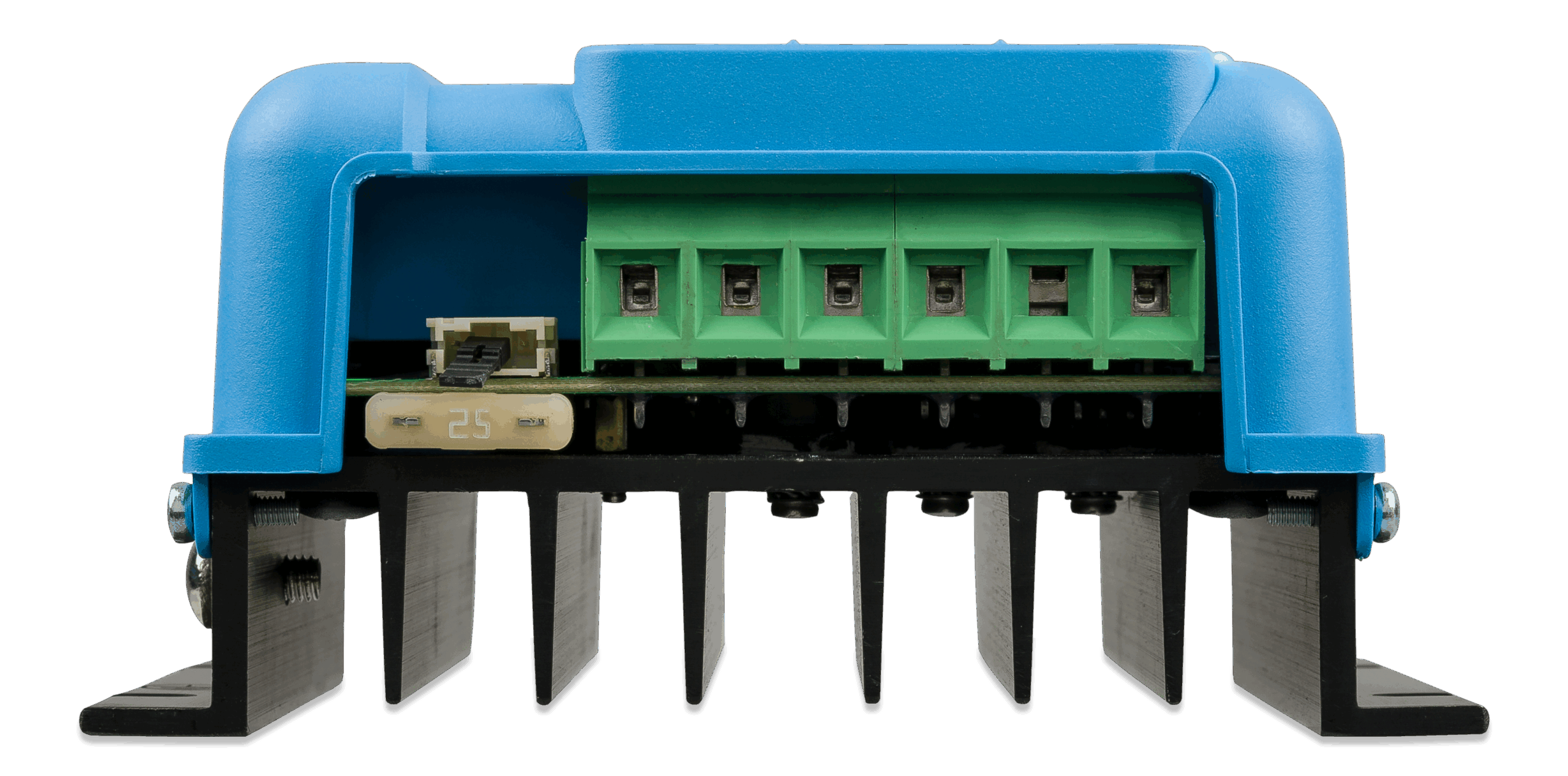

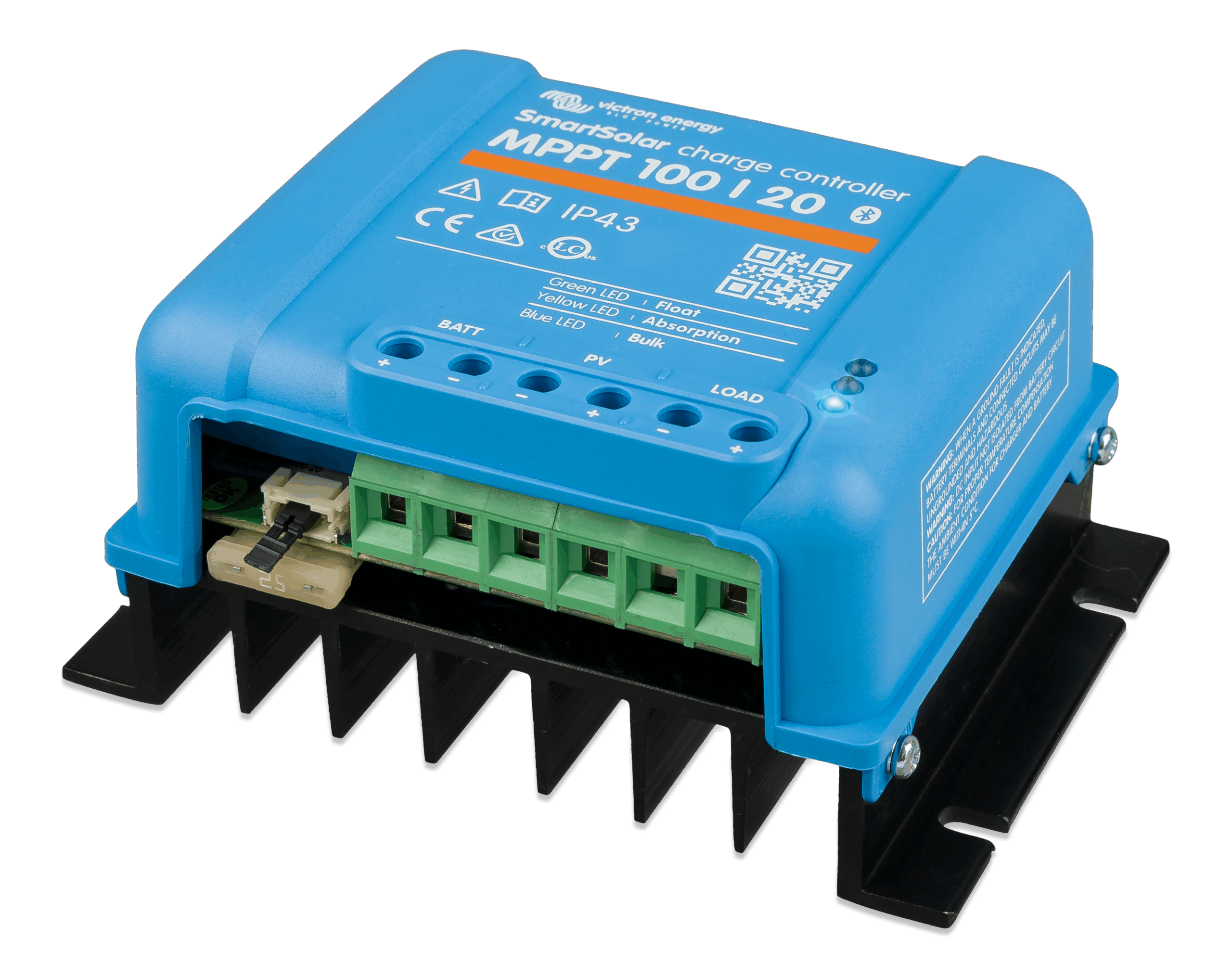

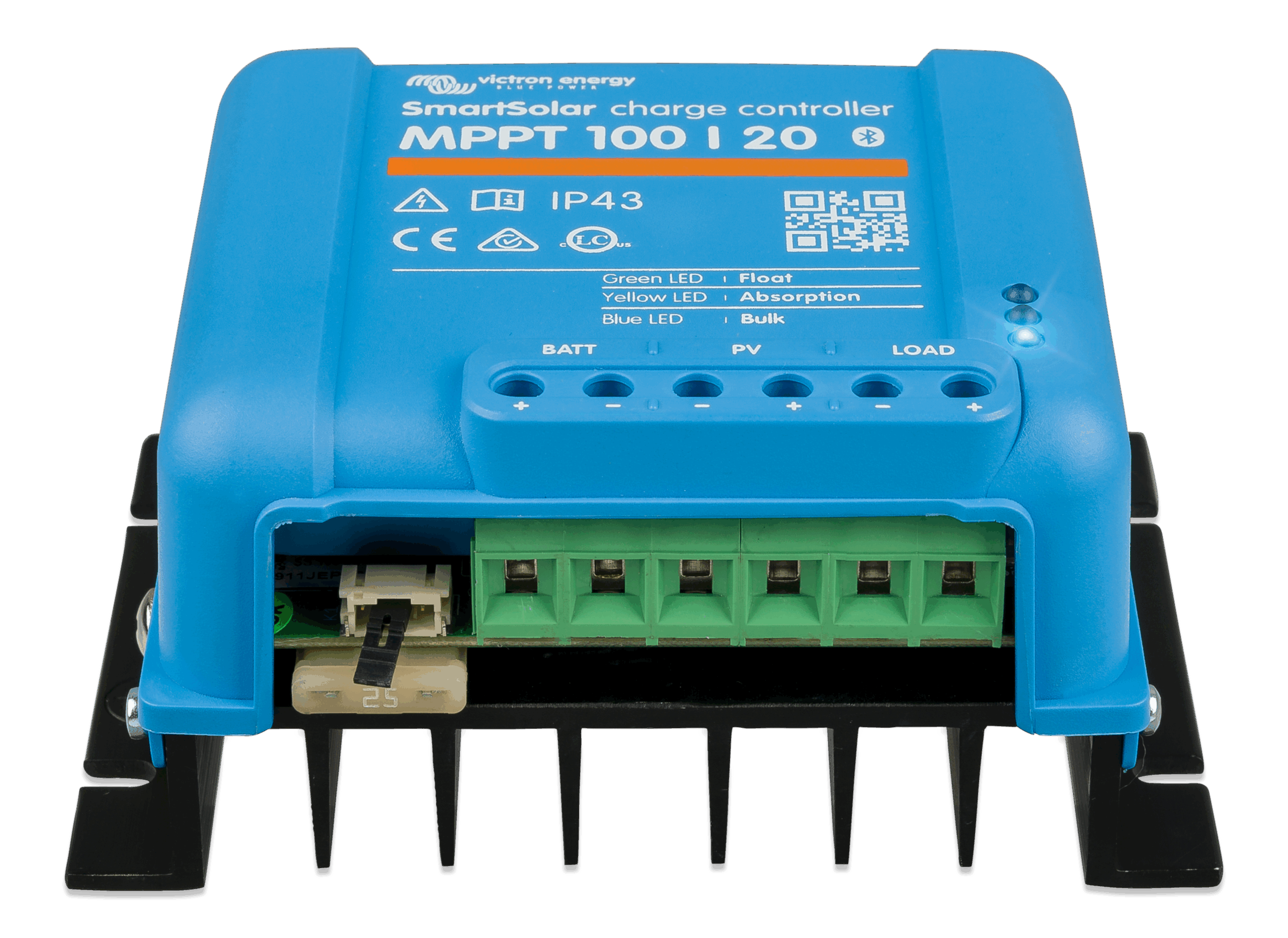

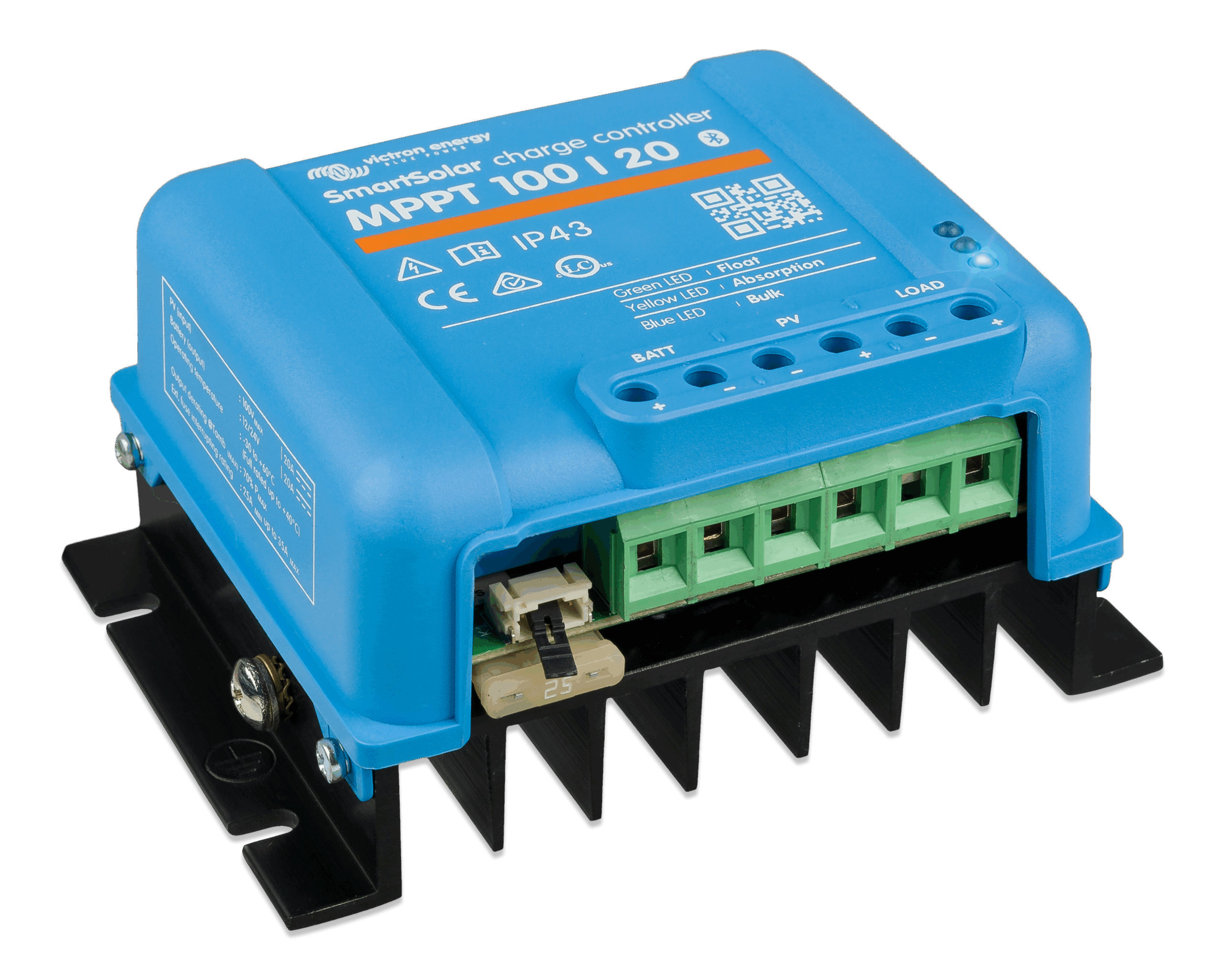

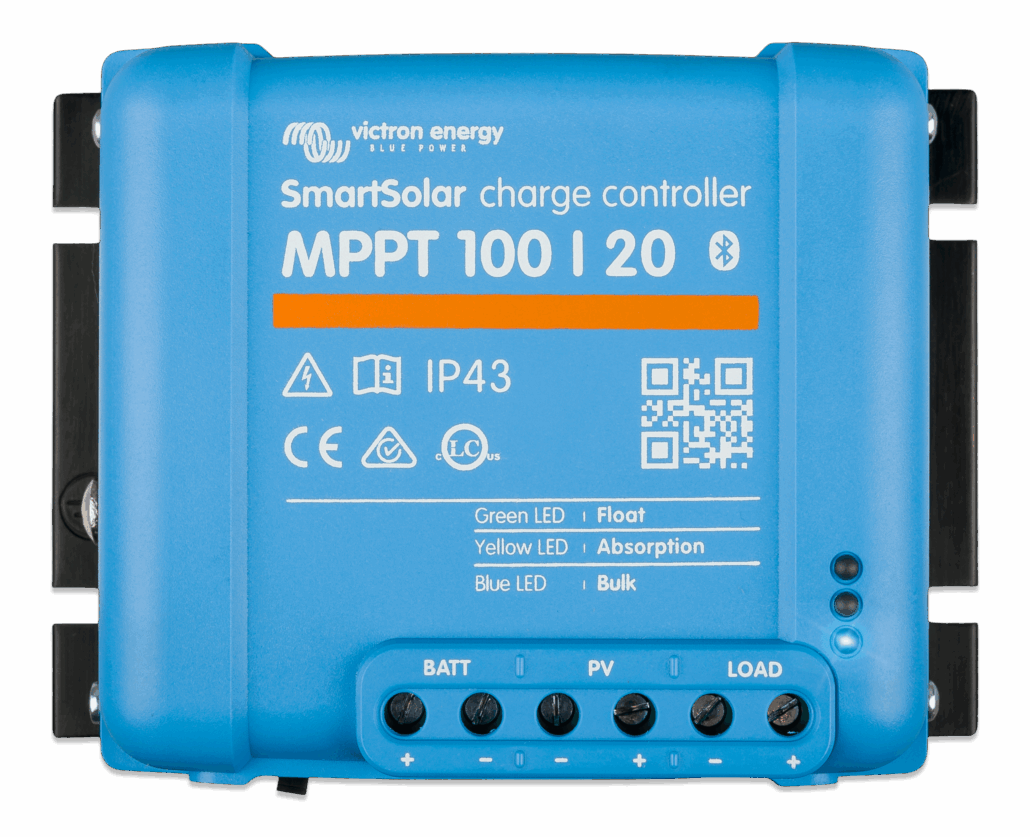

Victron Energy SmartSolar MPPT 100/20 48V (SCC110020160R)
Bluetooth Smart built-in: dongle not needed The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.
VE.Direct For a wired data connection to a Color Control panel, PC or other devices Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week. Programmable battery charge algorithm See the software section on our website for details Day/night timing and light dimming option.
See the software section on Victron’s website for details Programming, real-time data and history display options Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots. - CCGX
Solar, battery monitoring and remote access together.
| Model | Max PV voltage | Charge current | PV power at 12 V | Battery | Price | Source | |
|---|---|---|---|---|---|---|---|
| SmartSolar MPPT 75/10 | 75 V | 10 A | 145 W | 12/24 V | £53.21 | Datasheet | View |
| SmartSolar MPPT 75/15 | 75 V | 15 A | 220 W | 12/24 V | £56.97 | Datasheet | View |
| SmartSolar MPPT 100/20-48V This one | 100 V | 20 A | 290 W | 12/24/48 V | £57.99 | Datasheet | In stock |
| SmartSolar MPPT 100/30 | 100 V | 30 A | 440 W | 12/24 V | £94.99 | Datasheet | View |
| SmartSolar MPPT 100/50 | 100 V | 50 A | 700 W | 12/24 V | £127.99 | Datasheet | View |
Figures from the manufacturer's published specifications, linked per row. Sizing depends on your loads, battery bank and hook-up. Get it sized on a free 30-minute call
The first is the maximum PV open-circuit voltage, the second is the maximum charge current. A 100/30 takes up to 100 V from the panels and charges at up to 30 A.
The table shows nominal PV power at 12 V from the Victron datasheet. If more is connected, the controller limits input power.
Yes. SmartSolar controllers have Bluetooth and are set up in the VictronConnect app.
