Authorised Victron Energy InstallerVictron Energy Orion XS 12/12-50A DC-DC Battery Charger - ORI121217050
Victron EnergyExcellent on Google

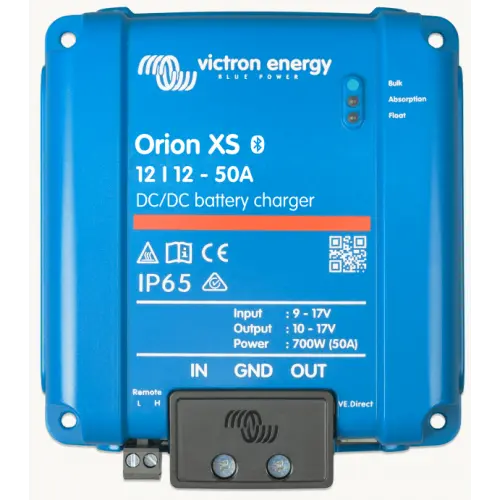

Victron Energy Orion XS 12/12-50A DC-DC Battery Charger - ORI121217050

Victron part no. ORI121217050

50 ACharge current
700 WRated power
98.5%Peak efficiency
IP65Protection

Source: Victron Orion XS datasheet

From£229.99In stock
Choose your model Compare sizes
Orion XS 12/12-50A12 V to 12 V · 50 A£229.99Orion XS 12/12-70A12 V to 12 V · 70 A£292.99
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Orion XS is a highly advanced DC-DC battery charger designed for use in dual battery systems, particularly in applications where an intelligent alternator is used. It is engineered to deliver superior performance while maintaining safety and efficiency, with the latest EMC improvements making it ideal for marine use and environments with VHF radios.

Key Features

  • EMC Improvements: Newly designed with improvements for electromagnetic compatibility (EMC), the Orion XS is recommended for marine applications and other systems that may interfere with sensitive equipment, such as VHF radios.
  • Adaptive DC-DC Charging: The Orion XS is a redefined adaptive DC-DC charger, ensuring reliable and efficient charging for your dual battery system.
  • Engine Shutdown Detection: The system detects when the engine shuts down, ensuring that the charging stops appropriately and protects the system.
  • Intelligent Charge Algorithms: The charger uses intelligent charge algorithms, optimising the charge for lithium and lead-acid batteries, adapting to the requirements of different battery types.
  • VictronConnect Compatibility: VictronConnect allows for easy configuration, monitoring, and management of the device using your mobile device or tablet.
  • Remote Monitoring: Optional remote monitoring capabilities allow you to track performance and make adjustments from anywhere.
  • Efficient Aluminium Circuit Board Cooling: The charger delivers an impressive 98% efficiency without the need for fans, using advanced aluminium circuit board cooling technology to maintain performance even up to 40°C.
  • Fully Configurable: Input and output currents can be fully configured for optimal performance according to system requirements.

Specifications

  • Model: Orion XS 12/12-50A DC-DC Battery Charger
  • Output Current: 50A (12V to 12V conversion)
  • Efficiency: 98% efficiency
  • Cooling: Aluminium circuit board cooling (no fans required)
  • Temperature Range: Full capacity up to 40°C
  • EMC Improvements: Recommended for use in marine environments
  • Intelligent Charging: Adaptable charging algorithms
  • Remote Monitoring: Optional remote monitoring available
  • VictronConnect: Compatible
  • Warranty: 5 years standard (with optional extension to 10 years)
  • Battery Compatibility: Works with lithium and lead-acid batteries
  • Cable Connection: 16mm² up to 5m, 25mm² > 5m
  • Fuse Requirements: 60A or 70A fuses

Datasheets

User Manual

Datasheet

Specifications

The numbers

Details

Wiring kit
No wiring kit, 1 m, 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m
Pre-crimped cables
No, Yes
Complete the system

What we usually fit with it

Charge from the alternator, see it all in one place.

All three together£525.97
  • Orion XS 12/12-50A DC-DC Battery …£229.99
  • SmartShunt 500A / 50mV£68.99
  • Cerbo GX MK3 (BPP900451130)£226.99
Add all three to basket
Compare sizes

Which Orion XS is right for you?

ModelBatteryOutput currentRated powerPriceSource
Orion XS 12/12-50A This one12 V / 12 V50 A700 W£229.99DatasheetIn stock
Orion XS 12/12-70A12 V / 12 V70 A1,000 W£292.99DatasheetView

Figures from the manufacturer's published specifications, linked per row. Sizing depends on your loads, battery bank and hook-up. Get it sized on a free 30-minute call

Questions

Before you buy

What does a DC-DC charger do?

It charges your leisure battery from the vehicle alternator while you drive, with a charge profile set for your battery.

Which size do I need?

It depends on your alternator, cabling and battery bank. Book a free 30-minute call and Tom will size it with you.

Can I see it on my phone?

Yes. Orion XS chargers have Bluetooth and are set up in the VictronConnect app.

Building the whole system?

Get it designed with you, plus a wiring diagram to match

Free 30-minute call, Victron kit specified for your build, wiring diagram part for part.
