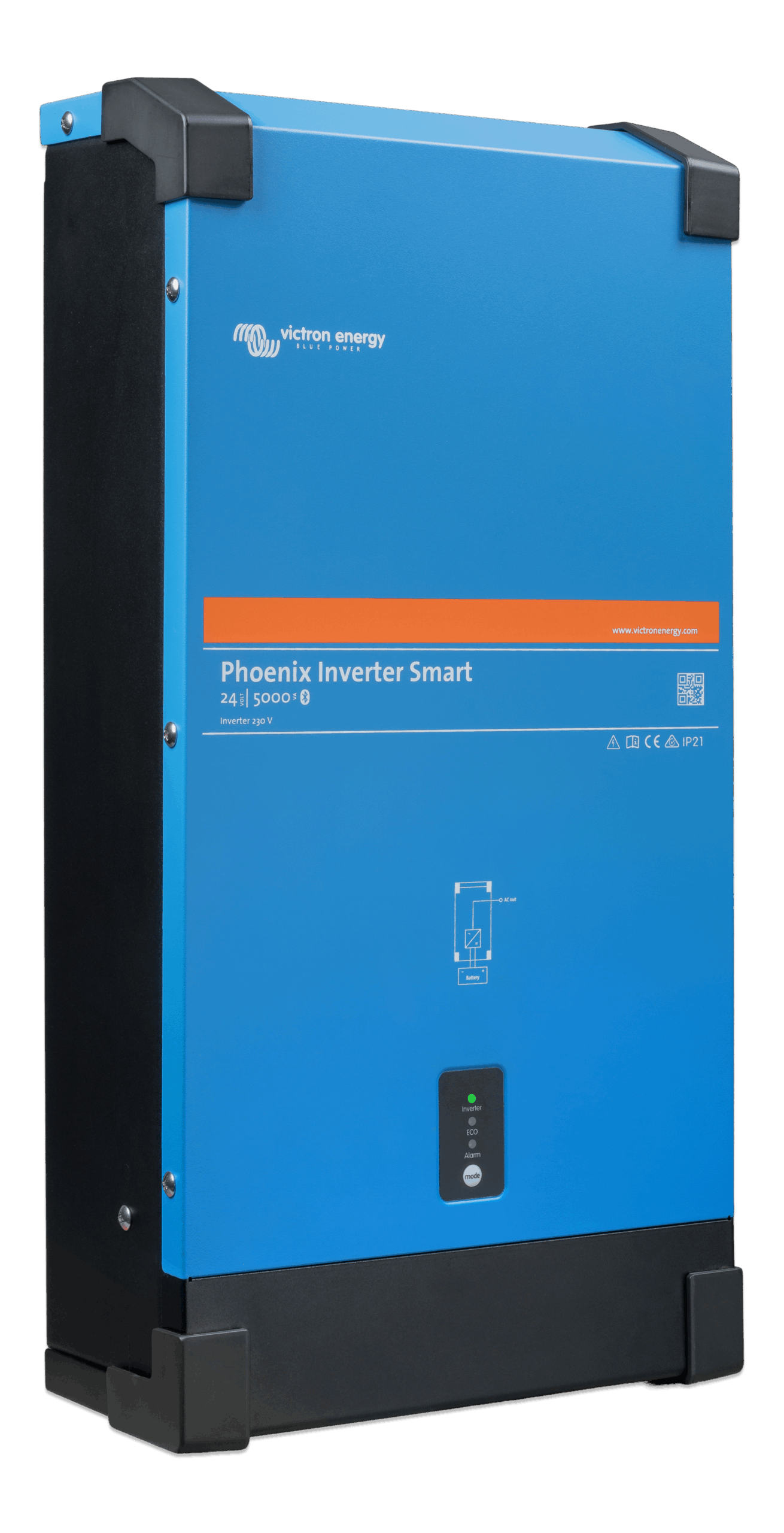

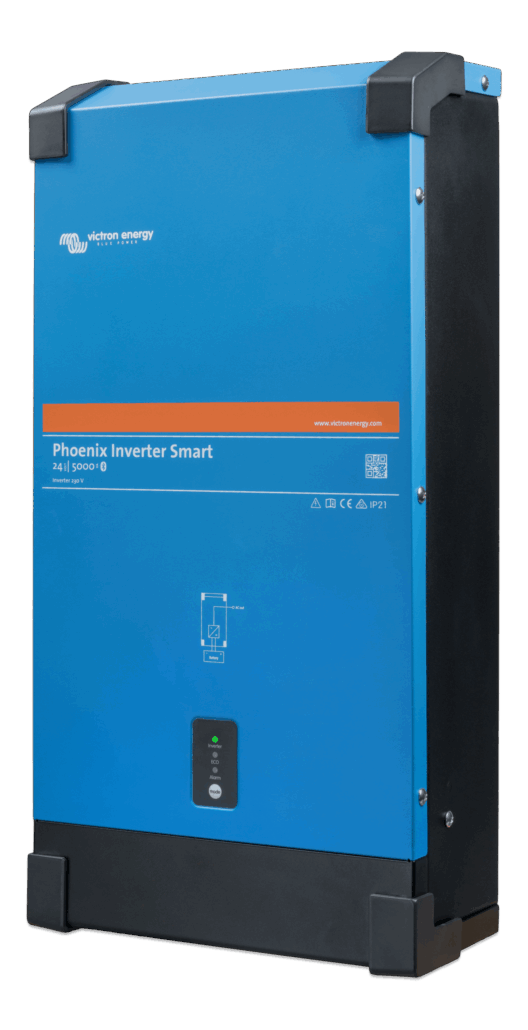

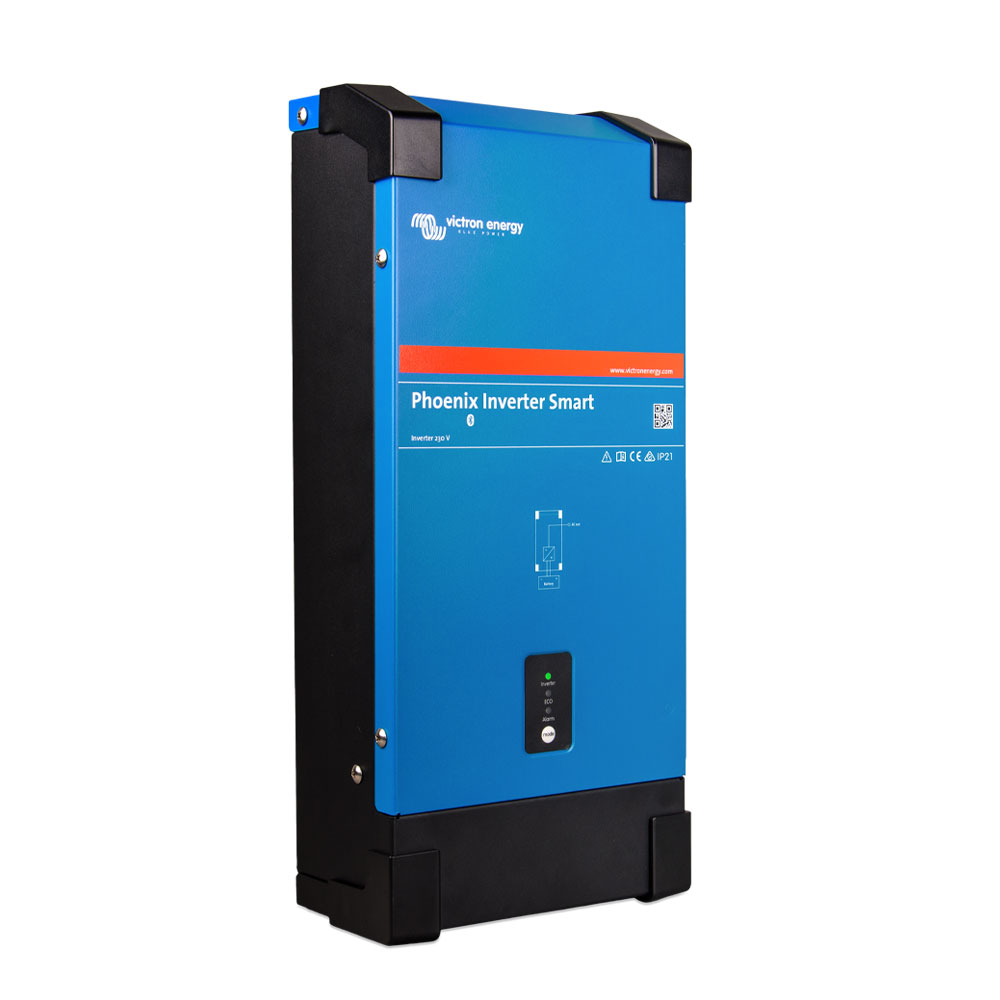

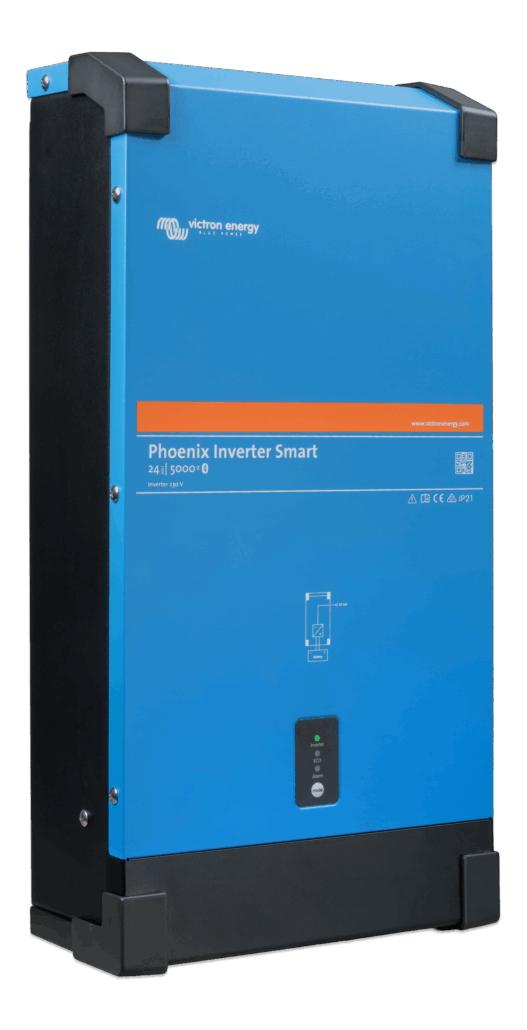

Authorised Victron Energy Installer1 / 5The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems.It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Source: Victron Phoenix Inverter Smart datasheet
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off

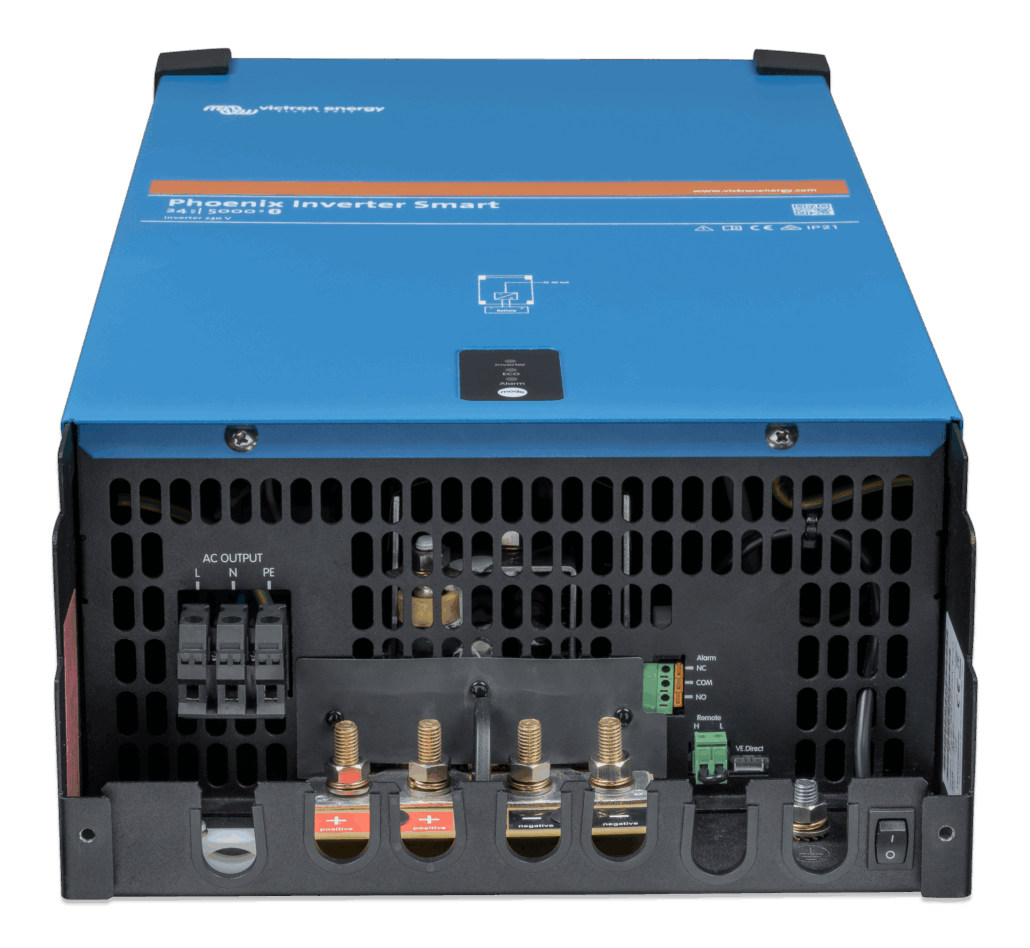

A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
Monitoring for an inverter-only system.
| Model | Battery | Continuous at 25°C | Peak | Max efficiency | Price | Source | |
|---|---|---|---|---|---|---|---|
| Phoenix Inverter Smart 12/1600 | 12 V | 1,600 VA / 1,300 W | 3,000 W | 92% | £485.37 | Datasheet | View |
| Phoenix Inverter Smart 12/3000 | 12 V | 3,000 VA / 2,400 W | 6,000 W | 93% | £702.76 | Datasheet | View |
| Phoenix Inverter Smart 24/3000 This one | 24 V | 3,000 VA / 2,400 W | 6,000 W | 94% | £779.60 | Datasheet | In stock |
Figures from the manufacturer's published specifications, linked per row. Sizing depends on your loads, battery bank and hook-up. Get it sized on a free 30-minute call
An inverter only makes 230 V from your battery. A MultiPlus-II also charges from hook-up and switches over automatically.

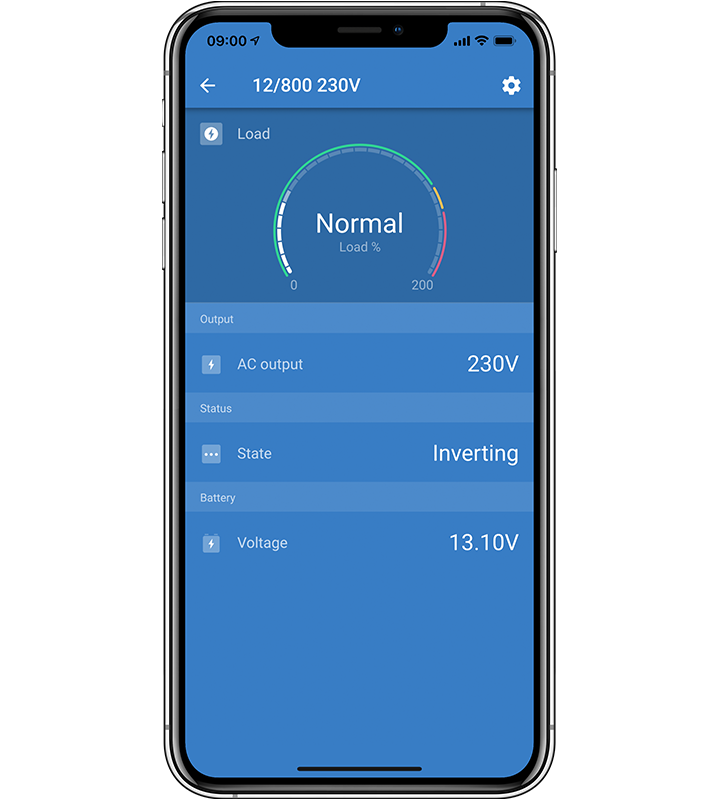

Yes, it has Bluetooth for the VictronConnect app.
