Description

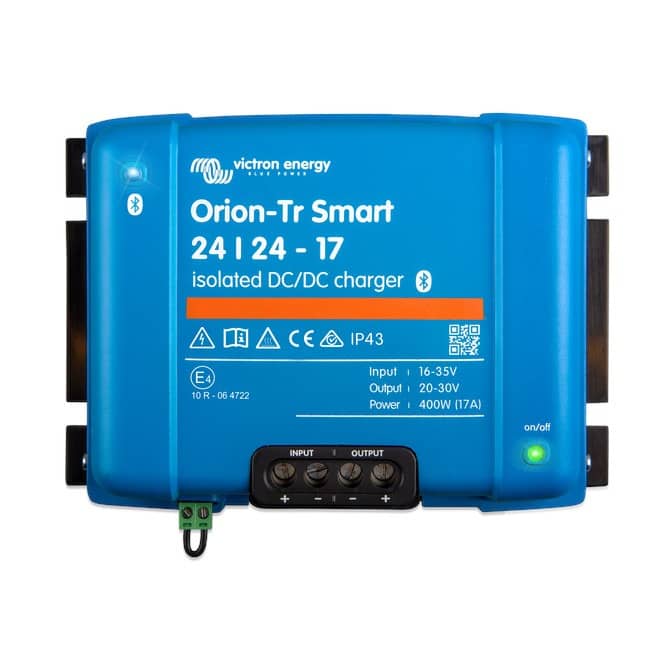

The Victron Orion-Tr Smart DC-DC charger is an advanced, adaptive 3-stage charger designed for dual battery systems, commonly used in vehicles or boats. With Bluetooth Smart enabled, the charger can be easily monitored and programmed using a smartphone or tablet. The charger supports both 12V and 24V systems and is compatible with both lead acid and lithium batteries.
The charger uses an adaptive 3-stage charge algorithm (bulk, absorption, float) to deliver optimal charging and has the ability to adjust the absorption time based on the battery discharge level. It also features a smart alternator compatibility with an engine running detection mechanism, allowing the charger to manage charging based on the vehicle's engine status. This model is suitable for high-temperature environments (up to 55°C) with full rated output at temperatures up to 40°C.
With the option to connect multiple chargers in parallel, the Orion-Tr Smart allows users to scale up the charging capacity to suit their needs. It is equipped with remote on/off functionality, short circuit protection, and IP43 rated protection, ensuring durability and easy installation without the need for special tools.
Key Features
Bluetooth Smart enabled for easy monitoring and programming via smartphone or tablet
Fully programmable with configurable battery charge algorithms or fixed output
Smart alternator compatibility with engine running detection
Adaptive 3-stage charge algorithm: bulk, absorption, float
Supports both lead acid and lithium batteries
Remote on/off control via switch or relay
Short circuit proof with the ability to connect multiple units in parallel to increase output
High temperature protection: output current reduces in high temperatures
IP43 protection (electronic components) and IP22 protection (connection area)
Easy installation with screw terminals, no special tools required
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: ORI242440120
- GTIN: 8719076047728
- Voltage: 24/24V
- Continuous Output Current: 17A
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Efficiency: 89%
- Bluetooth Enabled: Yes
- Dimensions: H130 x W186 x D70mm
- Weight: 1.6Kg
- Warranty: 5 Years
- Country of Manufacture: India
