Authorised Victron Energy InstallerVictron Energy Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC charger ORI124838120
Victron EnergyExcellent on Google

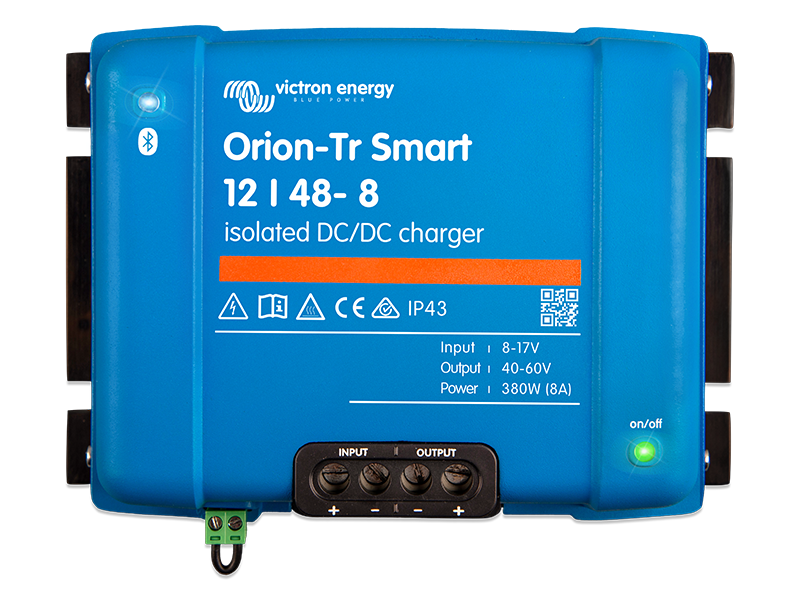

Victron Energy Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC charger ORI124838120

Victron part no. ORI124838120

From£159.77Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger is a reliable and efficient power converter designed for marine, automotive, and off-grid applications where a 48V system needs to be powered from a 12V source. It features adjustable output voltage, remote control capability, and short circuit protection to ensure safe and smooth operation.

The parallel operation capability allows multiple units to be connected for increased output power, making it a scalable solution for high-power applications. The IP43 rating provides dust and water resistance, ensuring durability in harsh environments.

With its compact size, lightweight build, and high efficiency (89%), the Victron Orion-Tr Smart 12/48-8A is an ideal choice for vehicles, boats, RVs, and off-grid systems that require stable 48V power from a 12V source.

Key Features

  • Remote On-Off Control: Eliminates the need for a high-current switch in the input wiring; can be controlled via a low-power switch or engine run/stop switch.
  • Adjustable Output Voltage: Can be used as a battery charger to charge a 12V starter battery from a 24V system or other configurations.
  • Short Circuit Protection: Fully short circuit proof, ensuring safe operation.
  • Parallel Operation: Unlimited units can be connected in parallel to increase the output current.
  • IP43 Protection: When installed with screw terminals facing downward, it provides dust and water resistance.
  • Screw Terminals: No special tools required for installation.
  • Input Fuse Protection: Built-in fuse protection on 12V and 24V models for added safety.

Specifications

  • Brand: Victron Energy
  • Model Number: ORI484841110
  • Warranty: 5 Years
  • Voltage (Input/Output): 12V / 48V
  • Continuous Output Current: 8A
  • Power Output: 380W
  • Efficiency: 89%
  • Protection Category: IP43 (when screw terminals are downward)
  • Bluetooth Enabled: No
  • Remote On/Off Control: Yes
  • Parallel Operation Support: Yes, unlimited units
  • Short Circuit Protection: Yes
  • Dimensions (H x W x D): 130 x 186 x 70 mm
  • Weight: 1.6 kg
  • Country of Manufacture: India
