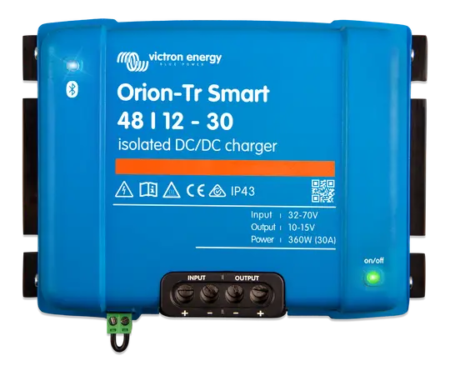

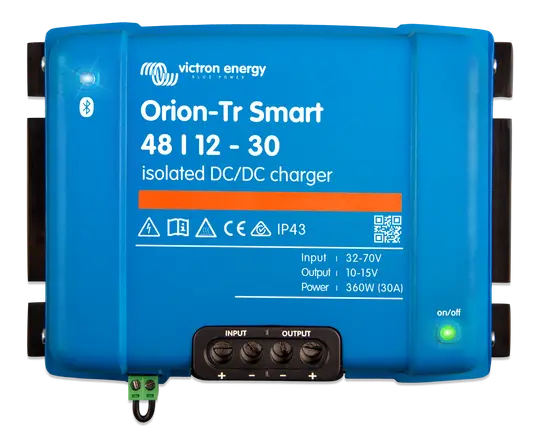

Victron Energy Orion-Tr Smart 48/12-30A (360W) Isolated DC-DC charger ORI481238120

The Victron Orion-Tr Smart 48/12-30A (360W) Isolated DC-DC Charger is designed for efficient voltage conversion and battery charging in off-grid, automotive, marine, and industrial applications. It allows users to step down a 48V input to 12V while delivering up to 30A of current, making it ideal for powering 12V devices or charging a 12V battery in a 48V system.

Its built-in Bluetooth enables wireless monitoring and control through the VictronConnect app, allowing users to adjust voltage settings, check battery status, and optimise performance remotely. The adaptive 3-stage charging system ensures safe and efficient battery charging, extending battery life.

The charger is short circuit proof, high-temperature protected, and supports parallel operation, allowing multiple units to work together for increased power capacity. The IP43 rating ensures dust and water resistance, making it durable for harsh environments.

With high efficiency, smart monitoring, and robust protection, the Victron Orion-Tr Smart 48/12-30A is a versatile solution for any system requiring a reliable 12V power source from a 48V supply.

Key Features

• Remote On-Off Control: Can be operated with a low-power switch or engine run/stop switch, eliminating the need for a high-current switch in the input wiring.
• Adjustable Output Voltage: Functions as a battery charger, suitable for charging 12V starter or accessory batteries from a 48V system.
• Built-in Bluetooth: Enables wireless monitoring and configuration via the VictronConnect App on smartphones, tablets, and PCs.
• Adaptive 3-Stage Charger: Ensures optimal battery charging by adjusting charge voltage and current based on battery type and condition.
• Short Circuit Protection: Fully short circuit proof, preventing damage from accidental faults.
• Parallel Operation: Allows multiple units to be connected in parallel for increased output power.
• High-Temperature Protection: Output current automatically reduces in high ambient temperatures to prevent overheating.
• IP43 Protection: When installed with screw terminals oriented downward, it provides protection against dust and water ingress.
• Screw Terminals: Simple tool-free installation with secure connections.
• Input Fuse (Non-Replaceable): Additional safety protection for 12V and 24V models.

Specifications

• Brand: Victron Energy
• Model Number: ORI481238120
• Warranty: 5 Years
• Voltage (Input / Output): 48V / 12V
• Continuous Output Current: 30A
• Power Output: 360W
• Efficiency: High efficiency
• Protection Category: IP43 (when screw terminals face downward)
• Bluetooth Enabled: Yes
• Remote On/Off Control: Yes
• Parallel Operation Support: Yes, unlimited units
• Short Circuit Protection: Yes
• High-Temperature Protection: Yes, automatic output reduction
• Adaptive 3-Stage Charging: Yes
• Input Voltage Range: 32-70V
• Output Voltage Range: 10-15V (adjustable)
