Description

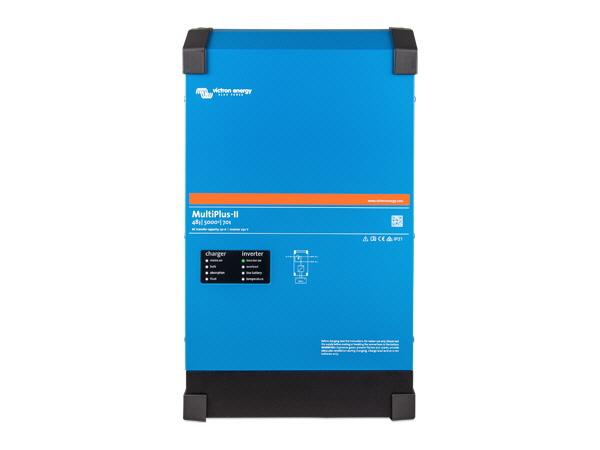

The Victron MultiPlus-II 48/5000/70-50 230V is a highly advanced solution from Victron Energy, blending ESS (Energy Storage System) functionality with cutting-edge power management. Designed for both off-grid and grid-connected energy systems, the MultiPlus-II offers PowerControl and PowerAssist features, which enable you to set the maximum current drawn from a generator or grid and intelligently use excess power for battery charging or to support limited peak power demands. The unit is equipped with an external current transformer to optimise self-consumption, and it is compatible with solar PV systems.
Incorporating a true sine wave inverter, a high-speed AC transfer relay, and a sophisticated battery charger, the MultiPlus-II offers unparalleled reliability, ease of installation, and flexibility. Additionally, the unit can be monitored and controlled both locally and remotely via the VRM portal, ensuring optimal performance at all times.
With Victron’s commitment to quality and innovation, the MultiPlus-II delivers superior performance, efficiency (up to 96%), and advanced protection systems. Regular firmware updates add new features based on user feedback, enhancing the product’s functionality over time.
Key Features
- True sine wave inverter for clean, stable power output.
- PowerControl and PowerAssist to optimise power use and battery charging.
- ESS functionality suitable for both off-grid and grid-connected PV systems.
- External current transformer option for self-consumption optimisation (max. 32A).
- Anti-islanding protection ensures safe operation in off-grid setups.
- On-site monitoring and control via MK3-USB interface.
- Remote monitoring and configuration through the VRM portal with a GX device.
- Compact design with easy-to-follow installation instructions and colour-coded wiring diagrams.
- High maximum efficiency of up to 96%.
- 5-year warranty for peace of mind.
Specifications
- DC Input: 38-66V (48V)
- Continuous Output Power: 5000VA (4000W)
- Peak Power: 9000W
- Maximum Efficiency: 96%
- Zero-Load Power: 2-18W
- AC Input: 187-265VAC, 45-65Hz
- Max Charge Current: 70A (48V)
- AC Transfer Relay: 50A
- Dimensions: 565 x 323 x 148mm
- Weight: 29kg
- Warranty: 5 Years
- Available Models: 48V
