Authorised Victron Energy InstallerVictron Energy Cyrix-Li-load Intelligent load relay 24/48V-230A  CYR020230450
Victron EnergyExcellent on Google

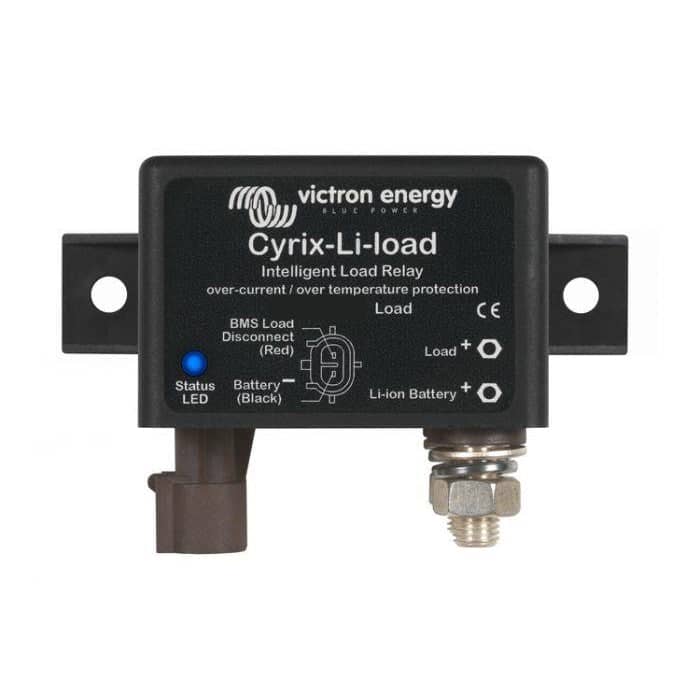

Victron Energy Cyrix-Li-load Intelligent load relay 24/48V-230A CYR020230450

Victron part no. CYR020230450

£140.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Cyrix-Li-Load 24/48V-230A (CYR020230450) is a robust and reliable load relay designed to protect lithium batteries in off-grid and backup power systems. The relay will automatically disengage when the control input becomes free floating, which occurs when the battery voltage falls below a certain threshold. Once the battery voltage recovers, typically after no other loads are connected, the relay will attempt to reconnect after a 30-second delay.

If the system fails to re-engage after three attempts, the relay stays disengaged until the battery voltage exceeds 13V (26V or 52V for higher voltage systems) for at least 30 seconds, signalling that the battery is being properly recharged.

The relay includes a 1-metre control cable and features LED status indication, allowing easy monitoring of system status. With a high current capacity of 230A, an IP54 protection rating, and low power consumption, the Cyrix-Li-Load is an essential component for efficient and safe battery management.

Key Features

  • Automatic load disconnection: Disconnects loads when voltage drops too low, protecting lithium batteries
  • Smart re-engagement: Attempts to reconnect after 30 seconds once battery voltage recovers
  • Three reconnection attempts: If unsuccessful, remains disengaged until voltage exceeds 13V (26V or 52V) for 30 seconds
  • 230A continuous current capacity: Handles high-power systems with ease
  • LED status indication: Allows for easy monitoring of system operation
  • 1-metre control cable included: Simplifies installation and connection
  • Low power consumption: Consumes only 4mA when open
  • IP54-rated protection: Dust and water-resistant for reliable operation in harsh conditions
  • 5-year warranty: Backed by Victron’s trusted reliability

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: CYR020230450
  • Voltage: 24/48
  • LED Status Indication: Yes
  • Continuous current & Breaking capacity at 12V or 24V: 230A
  • Current Consumption When Open: 4 mA
  • Control Cable Included (Length 1 m): Yes
  • Protection Category: IP54
  • Dimensions: H65 x W100 x D50mm
  • Weight (kg): 0.27
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
