Overview

About this product

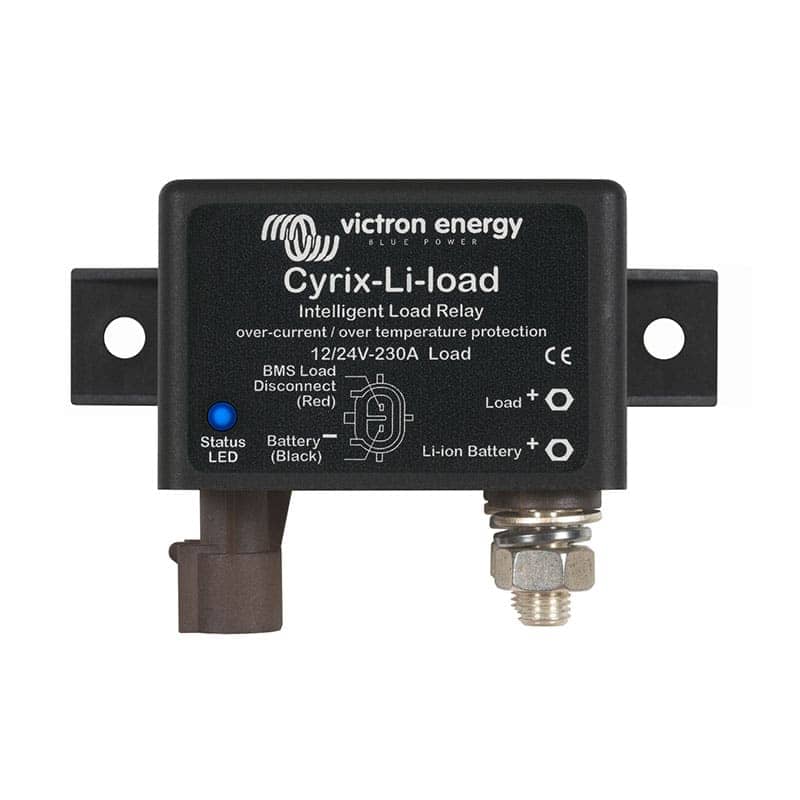

The Victron Cyrix-Li-Load 12/24V-230A (CYR010230450) is a high-power load relay built to protect lithium battery systems by preventing excessive discharge. It automatically disengages loads when the control input becomes free-floating, helping to prevent battery damage and extend battery life.

If the battery voltage recovers after disconnection, the Cyrix-Li-Load will attempt to re-engage after 30 seconds. If the relay fails to reconnect after three attempts, it remains disconnected until the battery voltage increases to more than 13V (26V or 52V) for at least 30 seconds, ensuring the battery is properly recharged before restoring power.

Ideal for off-grid power systems, marine applications, RVs, and backup power setups, this relay offers high current capacity (230A), an LED status indicator, and IP54-rated protection. It is also supplied with a 1-metre control cable for easy installation.

Key Features

  • Automatic load disconnection: Prevents deep discharge and protects lithium battery health
  • Smart re-engagement: Attempts to reconnect every 30 seconds after disconnection
  • Three reconnection attempts: If unsuccessful, it remains off until voltage exceeds 13V (26V or 52V) for 30 seconds
  • LED status indication: Easily monitor system operation
  • 1m control cable included: Simplifies installation and integration
  • Energy-efficient operation: Only 4mA power consumption when open
  • IP54-rated protection: Dust and water-resistant for reliable outdoor use
  • High current capacity: Handles up to 230A continuous load

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: CYR010230450
  • Voltage Compatibility: 12V / 24V
  • Continuous Current & Breaking Capacity: 230A
  • Current Consumption (When Open): 4 mA
  • Control Cable Included: Yes (1m length)
  • LED Status Indication: Yes
  • Protection Rating: IP54 (Dust and water-resistant)
  • Dimensions (H x W x D): 65 x 100 x 50 mm
  • Weight: 0.27 kg
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
