Authorised Victron Energy InstallerVictron Energy Cyrix-ct Intelligent Battery Combiner Retail 12/24V-230A  CYR010230010R
Victron EnergyExcellent on Google

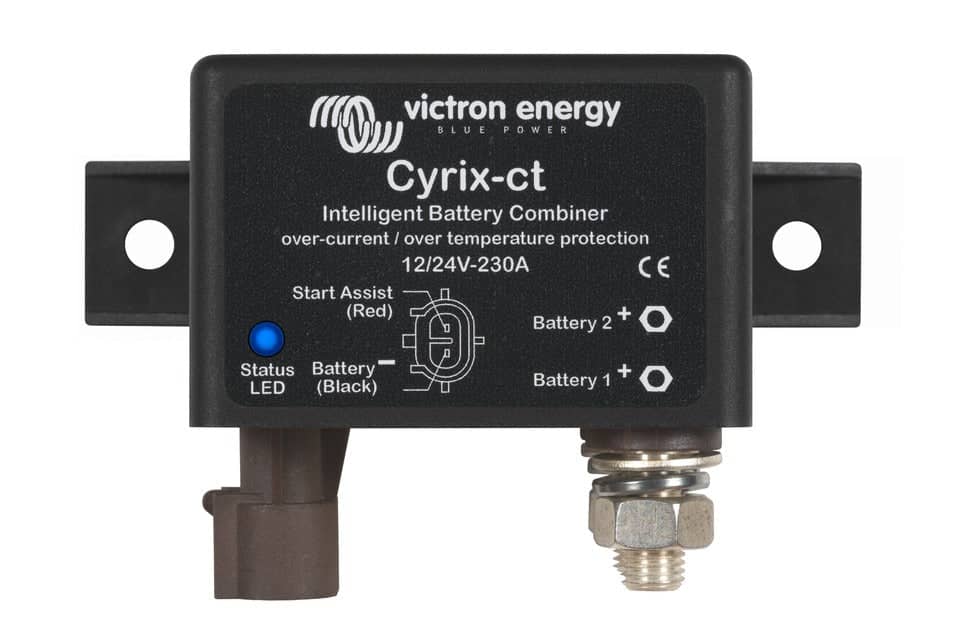

Victron Energy Cyrix-ct Intelligent Battery Combiner Retail 12/24V-230A CYR010230010R

Victron part no. CYR010230010R

£101.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Cyrix-ct Intelligent Battery Combiner Retail 12/24V-230A (CYR010230010R) is a heavy-duty microprocessor-controlled relay designed to efficiently manage multiple batteries by automatically connecting them in parallel once a pre-set voltage is reached, indicating that they are being charged. It disengages when the voltage drops below the float level, preventing battery discharge and ensuring system efficiency.

Unlike traditional battery combiners that rely on a fixed time delay for voltage-based switching, the Cyrix-ct intelligently tracks the general voltage trend (increasing or decreasing) and reverses previous actions only if the trend has consistently reversed over a certain period. This intelligent battery monitoring prevents unwanted switching, ensuring reliable system operation.

The Cyrix-ct 12/24 also offers overheating protection, disengaging in the event of excessive temperatures and re-engaging once it cools down. Its dual power supply ensures functionality even when one battery is too low to operate the relay. In emergency situations, it features Start Assist, manually enabling parallel battery connection for 30 seconds to help start a system.

Perfect for off-grid, marine, or backup systems, the Cyrix-ct offers a bidirectional voltage sensing capability and no voltage loss, ensuring smooth power flow without the need for additional voltage adjustments in alternators or battery chargers.

Key Features

  • Intelligent battery monitoring: Ensures reliable operation by monitoring voltage trends and adjusting accordingly
  • No voltage loss: Eliminates the need for higher output voltage from alternators or chargers
  • Overheating protection: Automatically disengages if excessive contact temperature is detected and re-engages once cooled down
  • 12/24V auto-ranging: Automatically detects the system voltage for easy installation
  • Start Assist: Allows for manual parallel connection of batteries for 30 seconds in case of emergency
  • LED status indication: Easily monitor the system with visual feedback on operation status
  • Bidirectional voltage sensing: Monitors both battery voltages, ensuring proper connection even if one battery is being charged by an external source
  • Dual power supply: Ensures operation even if one battery’s voltage is too low
  • IP54-rated: Weatherproof design for use in harsh environments
  • Reliable Victron quality: Backed by a 5-year warranty

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: CYR010230010R
  • Voltage Compatibility: 12V / 24V
  • Cranking Rating (5 seconds): 500A
  • Control Cable Included: Yes (1m length)
  • Start Assist: Yes (engages for 30 seconds manually)
  • LED Status Indication: Yes
  • Protection Rating: IP54 (Dust and water-resistant)
  • Dimensions (H x W x D): 65 x 100 x 50 mm
  • Weight: 0.27 kg
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
