Authorised Victron Energy InstallerVictron Energy Cyrix-i Intelligent battery combiner 12/24V-400A  CYR010400000
Victron EnergyExcellent on Google

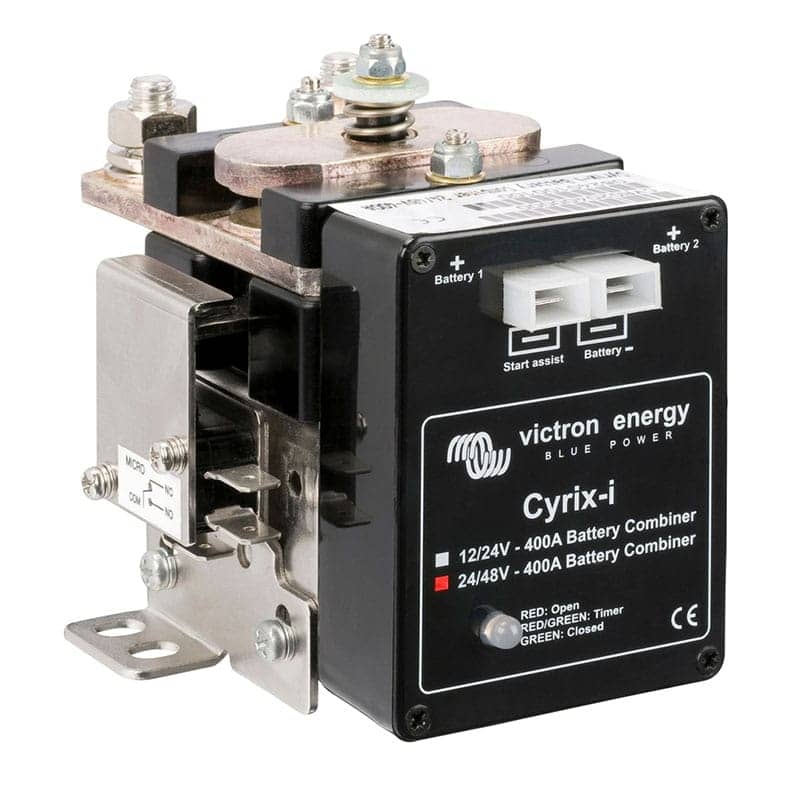

Victron Energy Cyrix-i Intelligent battery combiner 12/24V-400A CYR010400000

Victron part no. CYR010400000

£207.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Cyrix-ct Intelligent Battery Combiner (CYR010120011R) is designed for off-grid and backup systems to ensure optimal battery performance without the need for traditional diode isolators. By using a microprocessor-controlled relay, the Cyrix-ct automatically connects batteries in parallel when one of the batteries reaches a pre-set voltage, indicating it's being charged. It disengages when the voltage drops below the float level, ensuring that no battery is left in a discharged state.

The Cyrix-ct 12/24 uses intelligent battery monitoring to prevent unwanted switching, unlike simpler battery combiners that disconnect due to short, high-amperage loads or when voltage drops too quickly. It continuously evaluates the voltage trend (whether increasing or decreasing) and reverses its actions only if the trend has changed over a set period. This dynamic approach prevents connection failures with discharged batteries or batteries affected by short-duration, high-amperage loads.

With overheating protection, auto-ranging voltage detection, and no voltage loss, this battery combiner is a reliable and energy-efficient choice for systems requiring parallel battery connections. The Cyrix-ct also offers emergency parallel connection (via Start Assist), allowing manual connection of batteries for 30 seconds in case of discharged starter batteries.

Key Features

  • Intelligent battery monitoring: Automatically connects and disconnects batteries based on voltage trends, preventing unwanted switching
  • No voltage loss: No need to increase output voltage from alternators or chargers, making it an excellent replacement for diode isolators
  • Overheating protection: Disengages in case of excessive contact temperature and re-engages once cooled down
  • 12/24V auto-ranging: Automatically detects system voltage for easy installation
  • Emergency parallel connection (Start Assist): Allows manual parallel connection for 30 seconds in case of emergency
  • Bidirectional voltage sensing: Monitors voltage of both batteries, ensuring reliable connection even when one battery is being charged by an external charger
  • Dual power supply: Enables operation even if one battery voltage is too low
  • IP54-rated protection: Resistant to dust and water for reliable performance in harsh environments
  • Compact design: Ideal for off-grid, marine, and backup systems
  • 5-year warranty: Backed by Victron's trusted reliability

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: CYR010120011R
  • Voltage Compatibility: 12V / 24V
  • Cranking Rating (5 seconds): 180A
  • Start Assist: Yes (engages for 30 seconds manually)
  • LED Status Indication: No
  • Control Cable Included: No
  • Protection Rating: IP54 (Dust and water-resistant)
  • Dimensions (H x W x D): 46 x 46 x 80 mm
  • Weight: 0.11 kg
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
