Description

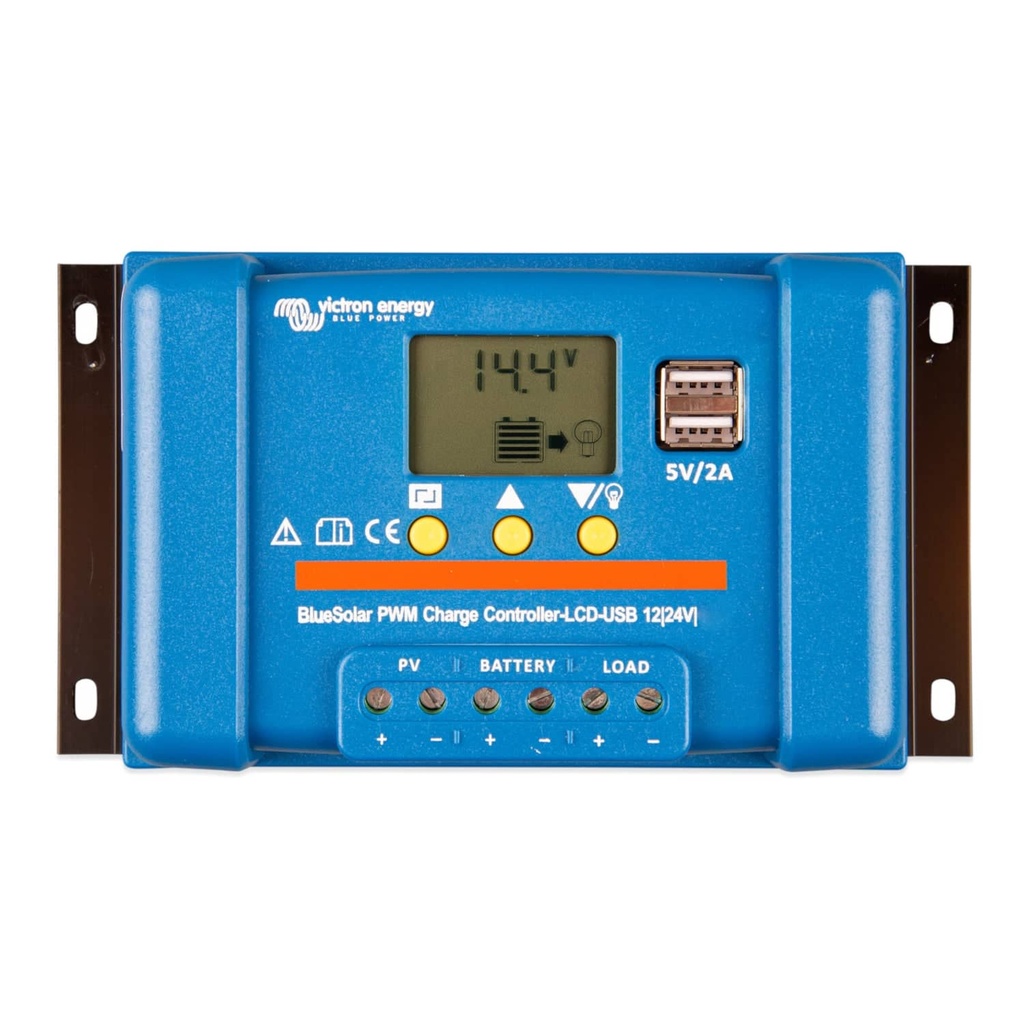

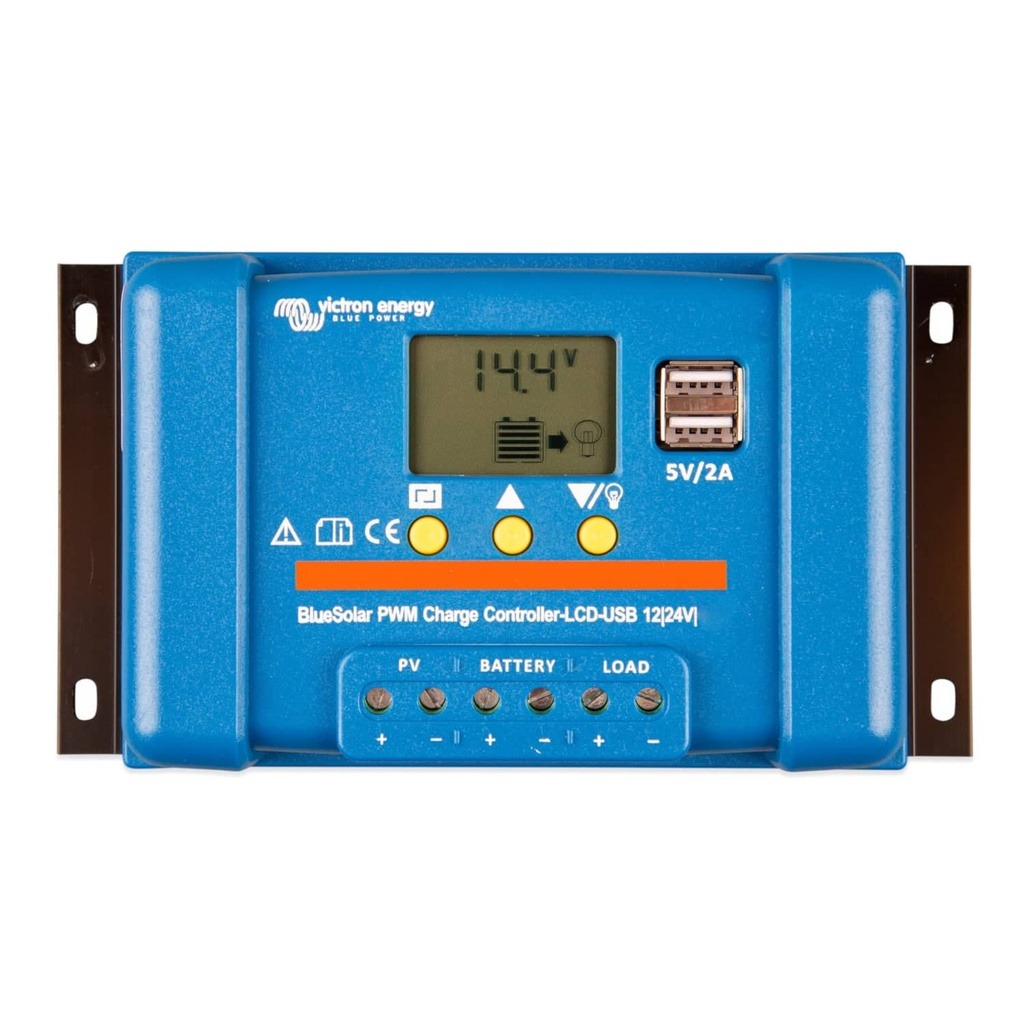

This PWM solar charge controller helps you protect your battery from over-discharge by disconnecting the load when the battery reaches a pre-set voltage. It allows you to easily control day/night timing with pre-set ON-time after dusk. The programmable battery charge algorithm is compatible with various battery types, including AGM, GEL, Flooded, and LiFePO4 (with internal BMS only), ensuring efficient charging and longer battery life.
The Victron BlueSolar PWM-LCD is a perfect solution for managing your solar system efficiently, offering both high current handling and convenience with USB charging capability.
Key Features
Liquid crystal display
For status monitoring and set-up
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
The connect and disconnect voltages are adjustable.
Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: SCC010030050
- GTIN: 8719076046226
- Voltage: 12/24V
- Rated Charge Current: 30A
- Protection Category: IP20
- Bluetooth Enabled: No
- Dimensions: H101 x W184 x D47mm
- Weight: 0.3kg
- Warranty: 5 Years
- Country of Manufacture: China
