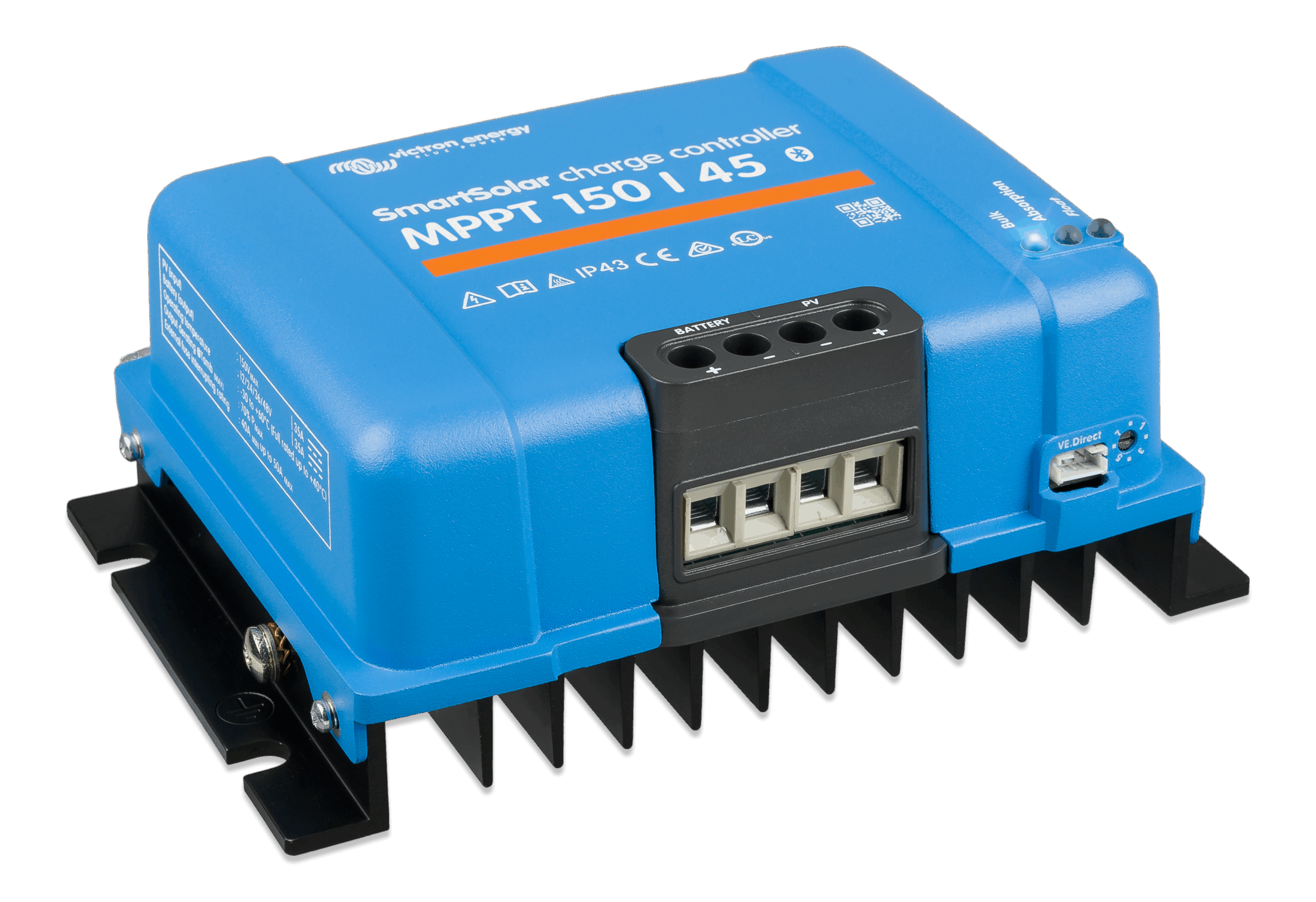

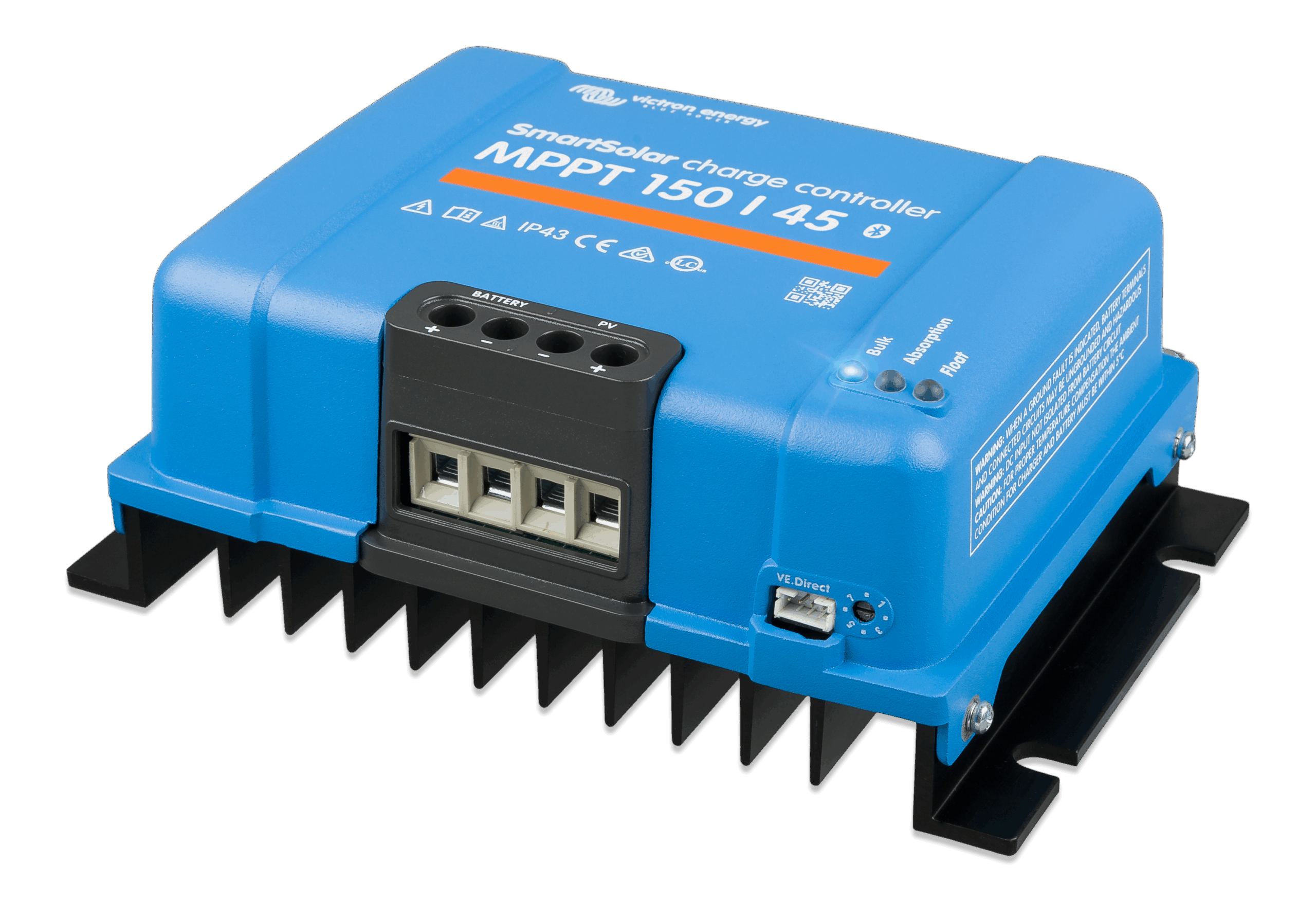

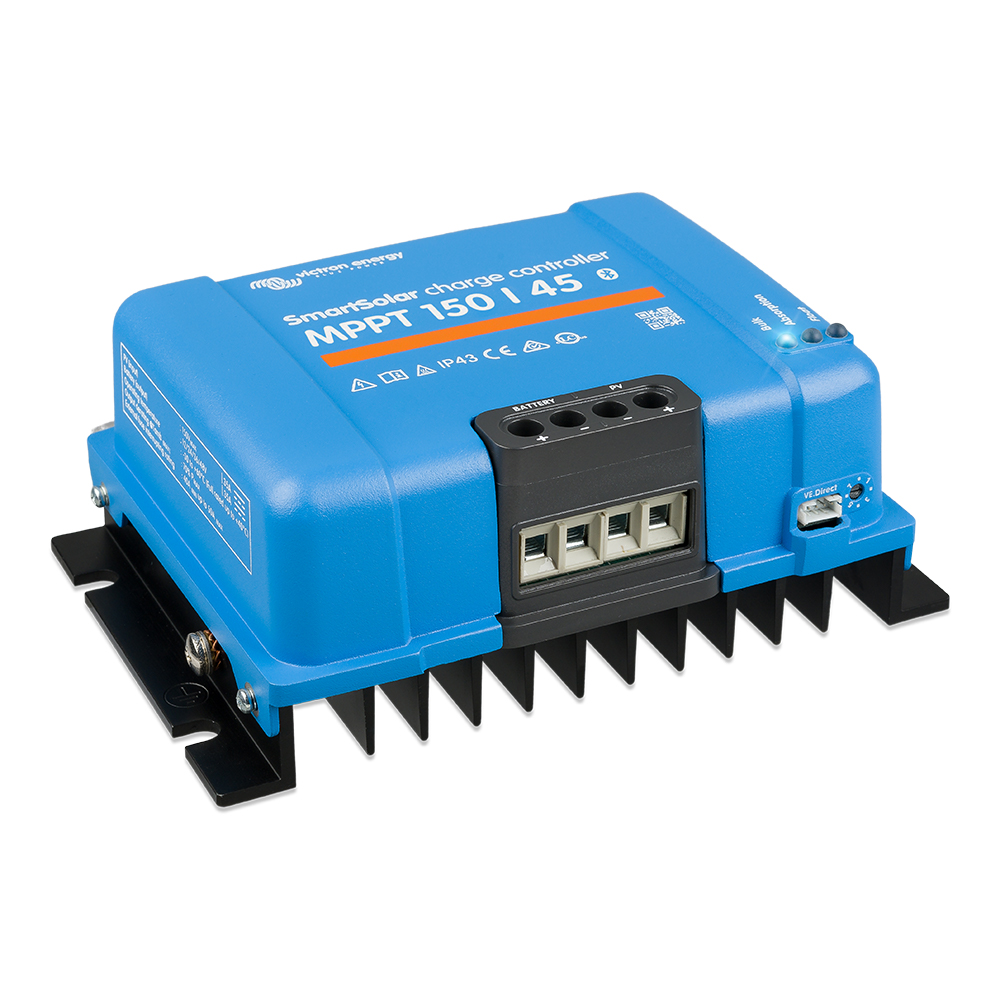

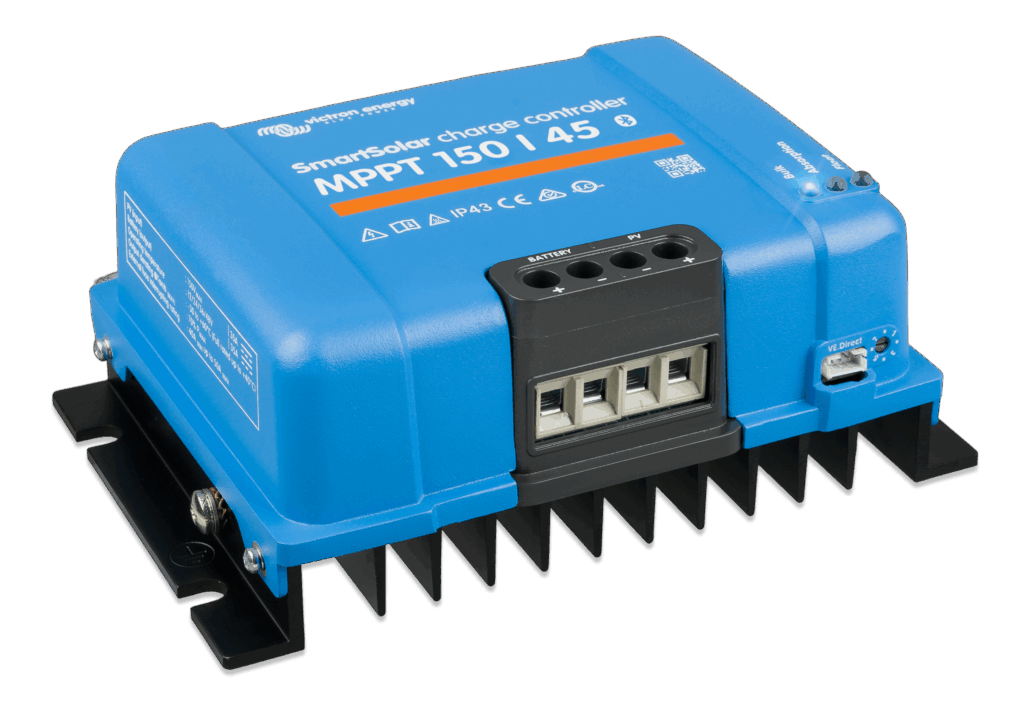

Victron SmartSolar MPPT 150/45

• Voltage: 12/24/48V
• Rated Charge Current: 45A
• Nominal PV Power, 12V: 650W
• Max. PV Short Circuit Current: 50A
• Max. PV Open Circuit Voltage: 150V absolute maximum coldest conditions 145V start-up and operating maximum
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Efficiency: 98%
• Bluetooth Enabled: Yes
• Dimensions: H130 x W186 x D70mm
• Weight: 1.25Kg
• Warranty: 5 Years

A solar charger gathers energy from solar panels, and stores it in batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features Bluetooth Smart built-in

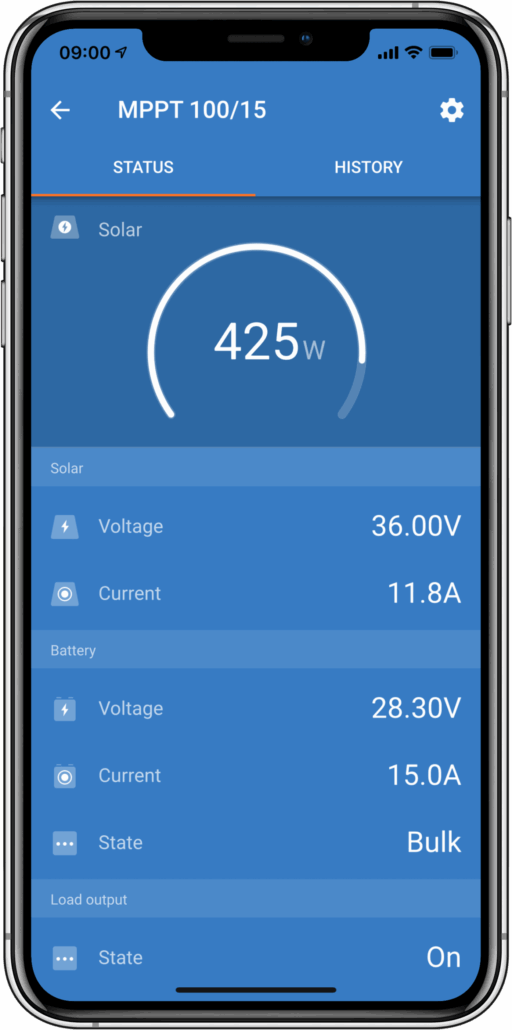

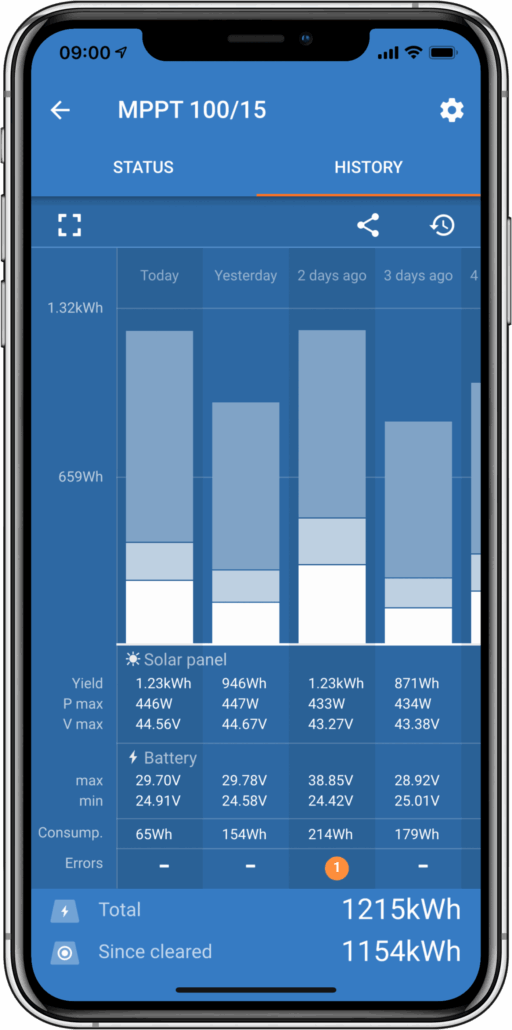

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

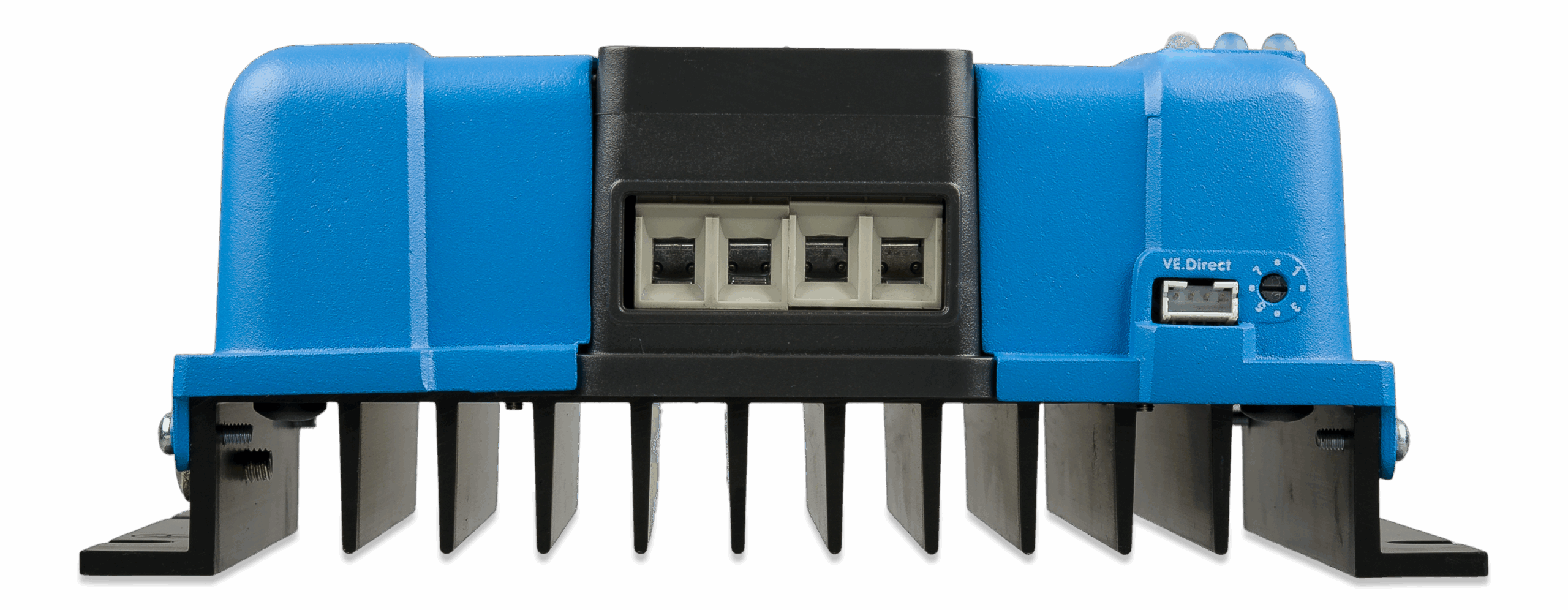

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on Victron), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

• Over-temperature protection and power derating when temperature is high.
• PV short circuit and PV reverse polarity protection.
• PV reverse current protection. Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Optional external battery voltage and temperature sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function
