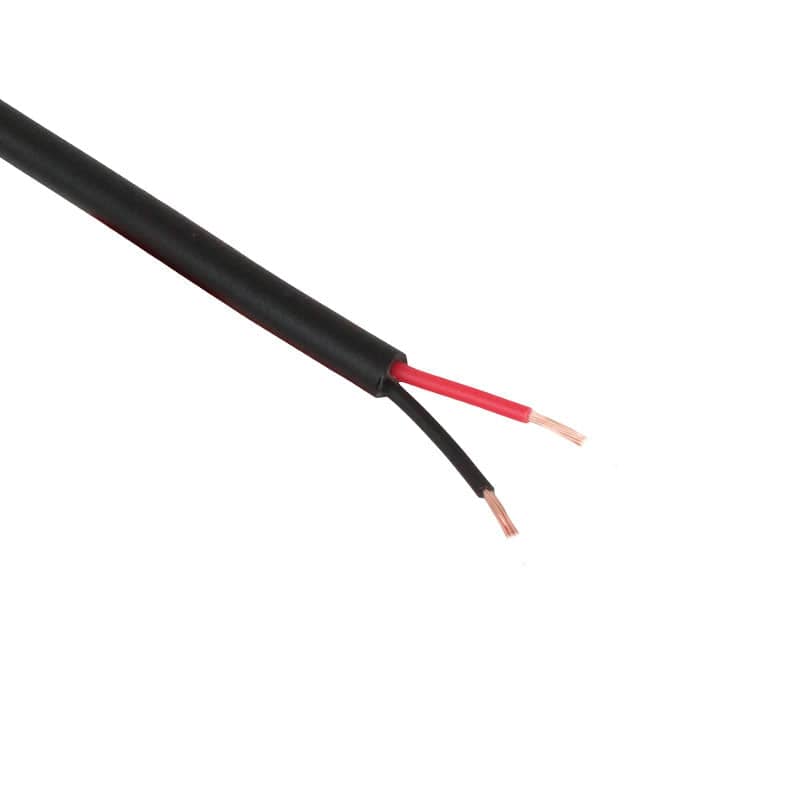

2 Core Round Thinwall Automotive Cable 2.5mm 29A

Built to meet the demands of contemporary vehicle and equipment wiring, this thinwall cable offers approximately 30% space saving over traditional PVC cables while delivering a higher amp rating per cross-sectional area. The use of hard-grade thermoplastic PVC insulation ensures a longer lifespan, improved heat resistance, and greater durability under vibration and environmental stress. The lead-free, ISO 6722 Class B-compliant construction makes this cable a reliable choice for OEMs and professionals looking for dependable wiring in demanding applications.

Key Features

• 2.5mm² dual-core cable with a 29A current rating
• Thinwall design reduces weight and bulk, up to 30% less volume
• Hard-grade PVC insulation for enhanced lifespan and ruggedness
• Plain copper conductor for efficient power delivery
• Higher amp rating per size: potential to reduce cable gauge and cost
• Operates from -40°C to +105°C, with short-term peaks up to +120°C
• Suitable for 12V and 24V systems (max 60V)
• Resistant to petrol, oils, and diluted acids
• Commonly used in vehicles post-1995
• Trusted by leading OEMs for high-quality wiring looms and systems

Specifications

• Product Name: 2 Core Round Thinwall Automotive Cable 2.5mm 29A
• Product Code: C205RTW-XBRB
• Conductor Area: 2.5mm²
• Current Rating: 29 Amps
• Core Count: 2 Core (Round Configuration)
• Conductor Material: Plain Copper (C-EPT1)
• Insulation Material: Hard Grade Thermoplastic PVC: Lead-Free
• Compliance Standards: ISO 6722 Class B, EN 13602, LV112 Type B
• Temperature Range: -40°C to +105°C (peaks to +120°C)
• Voltage Range: 12V / 24V systems (maximum 60V)
• Resistance Properties: Resistant to petrol, lubricating oils, diluted acids
• Application: Automotive, trailer wiring, harness building, post-1995 vehicles
