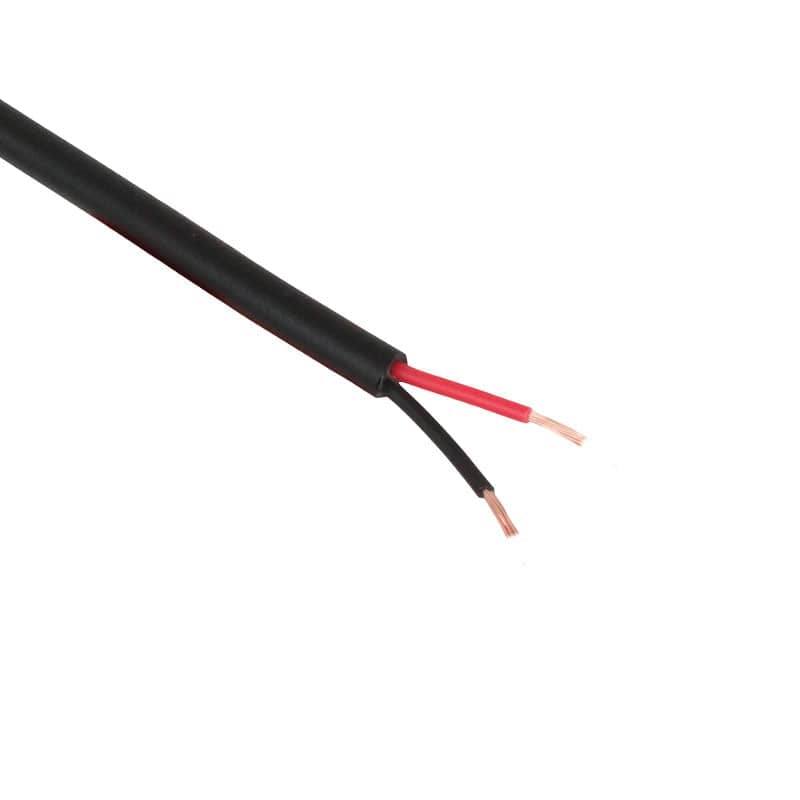

2 Core Round Thinwall Automotive Cable 2mm 25A

This cable is a technically advanced alternative to traditional BS6862 PVC cable, offering higher amp capacity, reduced bulk, and improved thermal resistance. Featuring a hard-grade thermoplastic PVC insulation and plain copper conductors, it complies with ISO 6722 Class B and EN 13602 standards, ensuring long-lasting, safe performance in a range of environments. The thinwall construction offers up to 30% space saving, making it ideal for compact installations or complex looms in post-1995 vehicles.

Key Features

• 2mm² twin-core cable with 25A current rating
• Thinwall design: approx. 30% smaller volume than standard PVC cable
• Plain copper conductor ensures efficient power transfer
• Hard-grade PVC insulation for extended lifespan and heat resistance
• Complies with ISO 6722 Class B and LV112 Type B standards
• Temperature range from -40°C to +105°C, with excursions up to +120°C
• Ideal for use in 12V and 24V systems (maximum 60V)
• Resistant to petrol, lubricating oils, and diluted acids
• Commonly used in automotive wiring looms post-1995
• Preferred by leading OEMs for modern vehicle systems

Specifications

• Product Name: 2 Core Round Thinwall Automotive Cable 2mm 25A
• Product Code: C204RTW-100BRB
• Conductor Area: 2.0mm²
• Current Rating: 25 Amps
• Core Count: 2 Core (Round Configuration)
• Conductor Material: Plain Copper (C-EPT1)
• Insulation Material: Hard Grade Thermoplastic PVC: Lead-Free
• Standards Compliance: ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B
• Temperature Range: -40°C to +105°C (up to +120°C excursions)
• Voltage Range: 12V / 24V (Maximum 60V)
• Chemical Resistance: Resistant to petrol, oils, and diluted acids
• Application: Automotive wiring, trailer systems, vehicle harnesses
