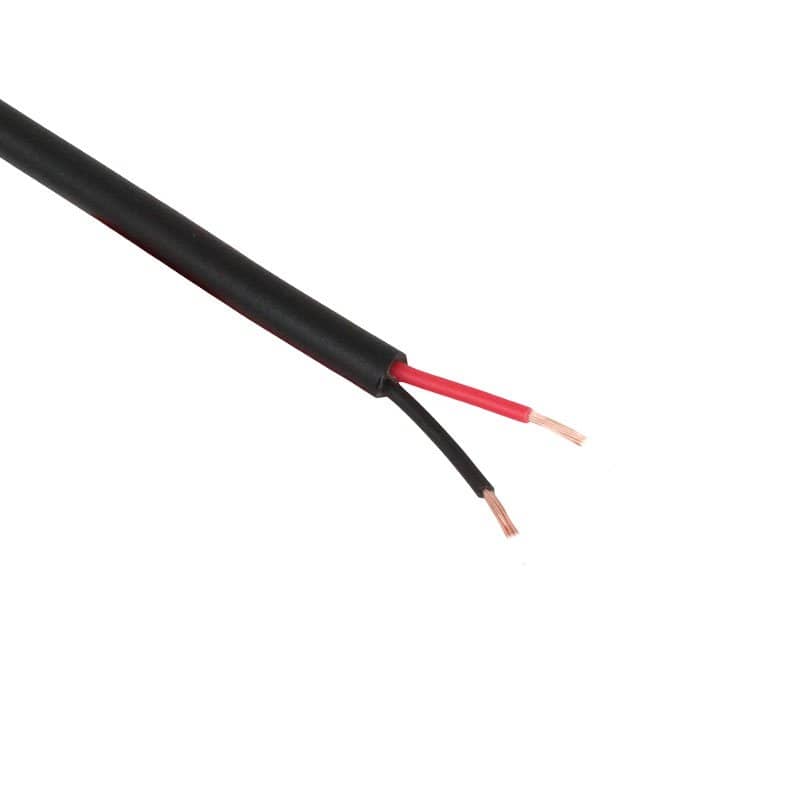

2 Core Round Thinwall Automotive Cable 0.5mm 11A

The 2 Core Round Thinwall Automotive Cable - 0.5mm 11A (C200RTW-100BRB) is a modern, space-saving solution for low voltage wiring in vehicles, marine systems, and industrial machinery. Engineered with advanced thermoplastic insulation and plain copper conductors, this cable delivers excellent durability while reducing bulk and weight, making it ideal for modern wiring harnesses.

This cable is considered a technically advanced alternative to older BS6862 standard PVC cables. It uses thinwall insulation, which reduces the cable’s volume by up to 30%, improving installation efficiency and space management. Despite its reduced thickness, it retains a higher current capacity for its size, allowing you to potentially downsize cable requirements and cut costs.

Manufactured with lead-free, hard-grade PVC insulation in accordance with ISO 6722 Class B, it provides enhanced temperature resistance, operating comfortably from -40°C to +105°C, with peaks up to +120°C. The cable is also resistant to petrol, lubricating oils, and diluted acids, making it ideal for demanding automotive environments. Commonly used in vehicles built after 1995, it is trusted by leading OEMs across Europe for its reliability and longevity.

Key Features

• Thinwall PVC insulation: up to 30% smaller volume for better space efficiency
• 0.5mm² cross-sectional area with 11A current rating
• Suitable for 12V and 24V systems (up to 60V max)
• Lightweight design: reduces overall wiring weight in vehicles
• Higher amp rating per size allows for potential downsizing
• Hard-grade, lead-free PVC insulation for a longer lifespan
• Resistant to fuel, oils, and acids
• Ideal for use in vehicles manufactured post-1995
• ISO 6722 Class B and EN 13602 compliant
• Trusted by leading OEMs across automotive and marine sectors

Specifications

• Cable Type: 2 Core Round Thinwall
• Conductor Cross Section: 0.5mm²
• Current Rating: 11A
• Voltage Rating: Suitable for 12V & 24V systems (max 60V)
• Operating Temperature Range: -40°C to +105°C, with excursions up to +120°C
• Conductor Material: Plain Copper (C-EPT1, EN 13602)
• Insulation Material: Hard Grade Thermoplastic PVC (Lead-Free)
• Insulation Standard: ISO 6722 Class B, LV112 Type B
• Resistance: Part resistant to petrol, oils, and diluted acids
• Common Applications: Post-1995 vehicles, marine, industrial wiring
• OEM Usage: Used by leading manufacturers across Europe
