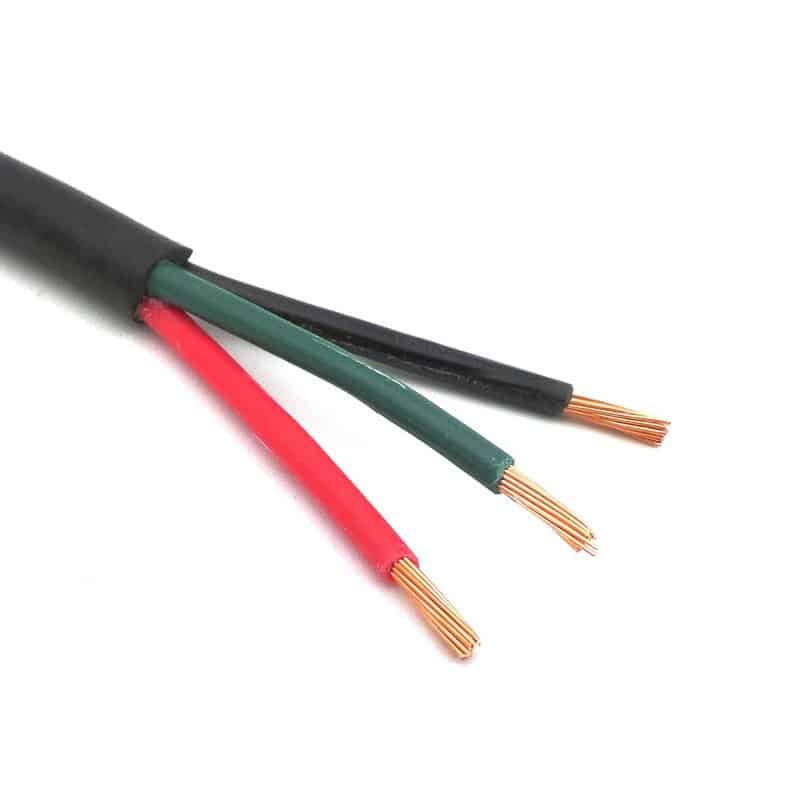

3 Core Automotive High Temp Thinwall Cable 1mm 16.5A

The 3 Core Automotive High Temp Thinwall Cable is a modern, technically advanced upgrade from traditional PVC BS6862 cables. This thinwall cable is specifically designed for high temperature, low voltage applications commonly found in automotive, marine, and similar industries.

Its slim, flat construction reduces volume by approximately 30%, saving valuable space in wiring harnesses and vehicle installations. The cable’s hard grade thermoplastic PVC insulation is lead-free and built to withstand tough operating conditions, offering a longer lifespan.

With a temperature range from -12°C to +105°C (with occasional excursions up to +120°C), this cable is suitable for 12V and 24V systems (maximum 60V). It also boasts partial resistance to petrol, lubricating oils, and diluted acids, making it ideal for demanding environments.

Thanks to a higher amp rating of 16.5A, this cable supports efficient power transmission with the potential to downsize cable thickness and reduce costs without sacrificing safety or performance. It is widely trusted and used by leading Original Equipment Manufacturers (OEMs), especially in vehicles produced after 1995.

Key Features

• Designed for high temperature use: -12°C to +105°C, with excursions up to +120°C
• Space-saving thinwall design: approx. 30% less volume than standard cables
• Hard grade thermoplastic PVC insulation:lead-free for improved durability
• Suitable for 12V and 24V low voltage systems (max 60V)
• 16.5A amp rating at 1mm conductor size allows efficient power handling
• Partially resistant to petrol, lubricating oils, and diluted acids
• Flat, flexible cable ideal for automotive and marine wiring harnesses
• Meets ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B standards
• Widely used in vehicles produced post-1995
• Plain copper conductor ensures excellent electrical conductivity

Specifications

• Cable Type: 3 Core Flat Thinwall Automotive Cable
• Conductor Size: 1mm²
• Amp Rating: 16.5A
• Insulation Material: Hard Grade Thermoplastic PVC, Lead-Free
• Standards Compliance: ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B
• Conductor Material: Plain Copper
• Temperature Range: -12°C to +105°C, with excursions up to +120°C
• Voltage Rating: Suitable for 12V and 24V systems (max 60V)
• Chemical Resistance: Partial resistance to petrol, lubricating oils, diluted acids
• Application: Automotive, marine, low voltage wiring harnesses
• Cable Design: Flat, thinwall for compact installations
