Overview

About this product

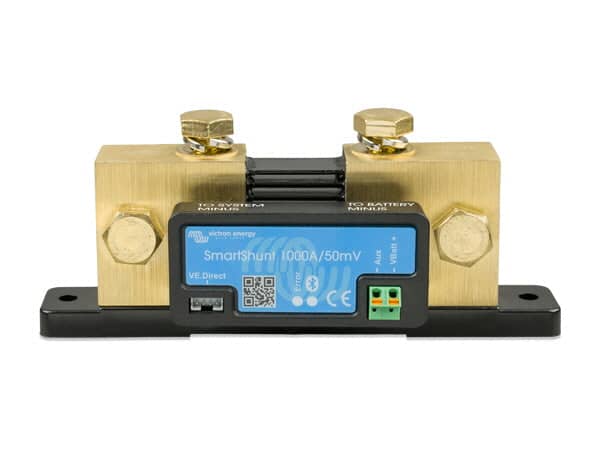

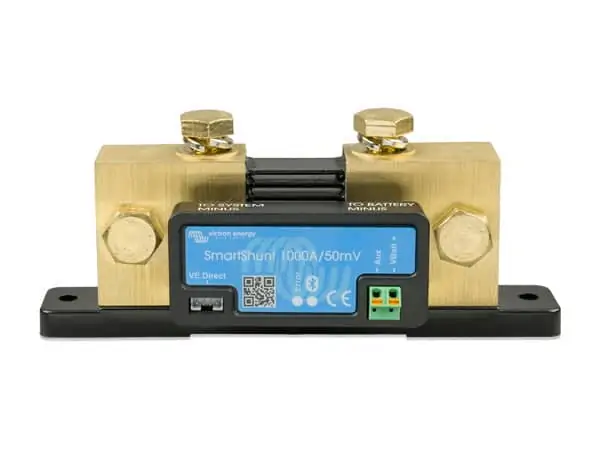

SHU050210050 - The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

The SmartShunt is a battery monitor. It measures battery voltage and current. Based on these measurements it calculates state of charge, time to go and keeps track of historical data, such as deepest discharge, average discharge and number of cycles.

Key Features

  • The SmartShunt connects via Bluetooth to the VictronConnect App.
  • The VictronConnect App is used to read out all monitored battery parameters and is also used to make or change settings.
  • Alternatively, the SmartShunt can connect to a GX device, like the ColorControl GX or the Cerbo GX.
  • The SmartShunt has an auxiliary input that can be used to monitor the voltage of a second battery or to monitor the midpoint of a battery bank.
  • The auxiliary input can also be used for battery temperature monitoring together with the optional Temperature sensor for BMV.

Specifications

  • Model Number: SHU050210050
  • Current Rating: 1000A (continuous)
  • Voltage Range: 8 to 70V
  • Voltage Measurement Accuracy: ±0.5%
  • Current Measurement Accuracy: ±1%
  • Auxiliary Input: Monitors second battery, midpoint of battery bank, or battery temperature with optional sensor
  • Connectivity: Bluetooth via VictronConnect app, or GX device (ColorControl GX, Cerbo GX)
  • Dimensions: 115 x 61 x 21mm
  • Weight: 0.18 kg
  • Warranty: 5 Years
