Authorised Victron Energy InstallerVictron Energy Battery Monitor BMV-702 Retail   BAM010702000R
Victron EnergyExcellent on Google

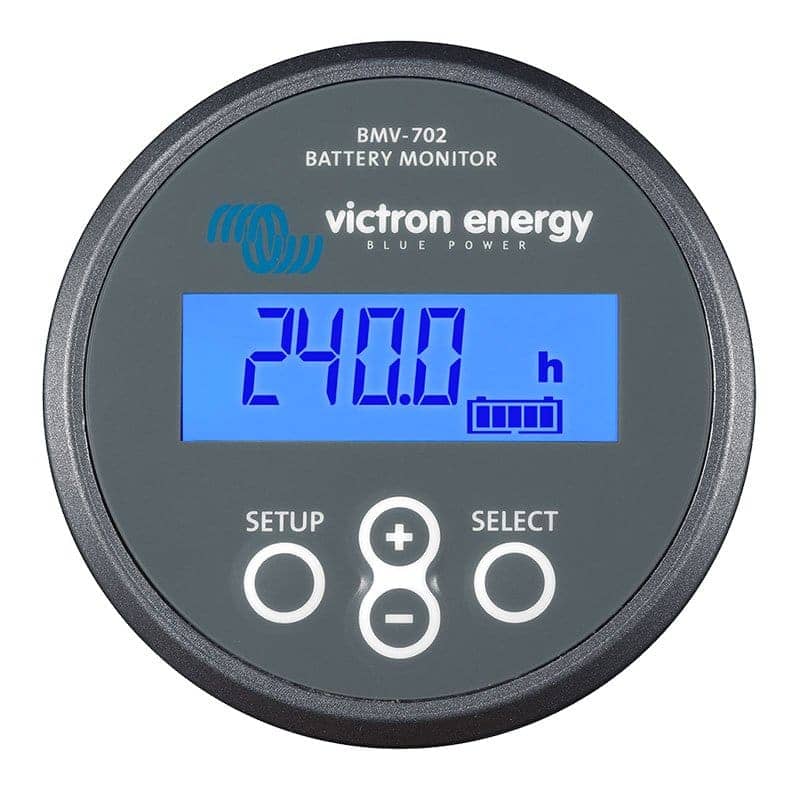

Victron Energy Battery Monitor BMV-702 Retail BAM010702000R

Victron part no. BAM010702000R

£104.99In stock · 1 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The BMV-702 is ideal for a wide range of applications, from solar battery systems to marine and off-grid setups, offering precise monitoring to ensure the longevity and reliability of your batteries. With its easy installation, programmable features, and advanced data collection, the BMV-702 helps you maximise battery performance and make informed decisions about battery usage.

Key Features

  • Battery Fuel Gauge: Displays remaining battery capacity and provides real-time monitoring.
  • Time-to-Go Indicator: Predicts the remaining time of battery life based on current discharge rate.
  • Advanced Software Algorithms: Accounts for discharge current, battery temperature, and battery age to calculate accurate readings.
  • Voltage, Current, and Ampere-Hours Display: Tracks the battery's voltage, current, ampere-hours consumed, and state of charge.
  • Power Consumption in Watts: Provides additional insight into power usage.
  • Programmable Alarms: Set visual and audible alarms for when certain thresholds are reached, such as low battery.
  • Relay Settings: Program relays to turn off non-critical loads or activate a generator when required.
  • Shunt Selection: The monitor can be used with shunts up to 10,000 Amps.
  • Additional Input Options: Can measure a second battery's voltage, temperature, or midpoint voltage for further data.
  • VE.Direct Communication Port: Allows for easy integration with other Victron devices for data logging and remote monitoring.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: BAM010702000R
  • Supply Voltage Range: 6.5V - 95V
  • Battery Capacity (Ah): 1 - 9999
  • Temperature Sensor: Optional
  • VE.Direct Communication Port: Yes
  • Protection Category: IP55
  • Front Bezel Size: 69 x 69mm
  • Body Diameter & Depth: 52 x 31mm
  • Warranty: 5 Years

Datasheets

Manual

Data Sheet
