Description

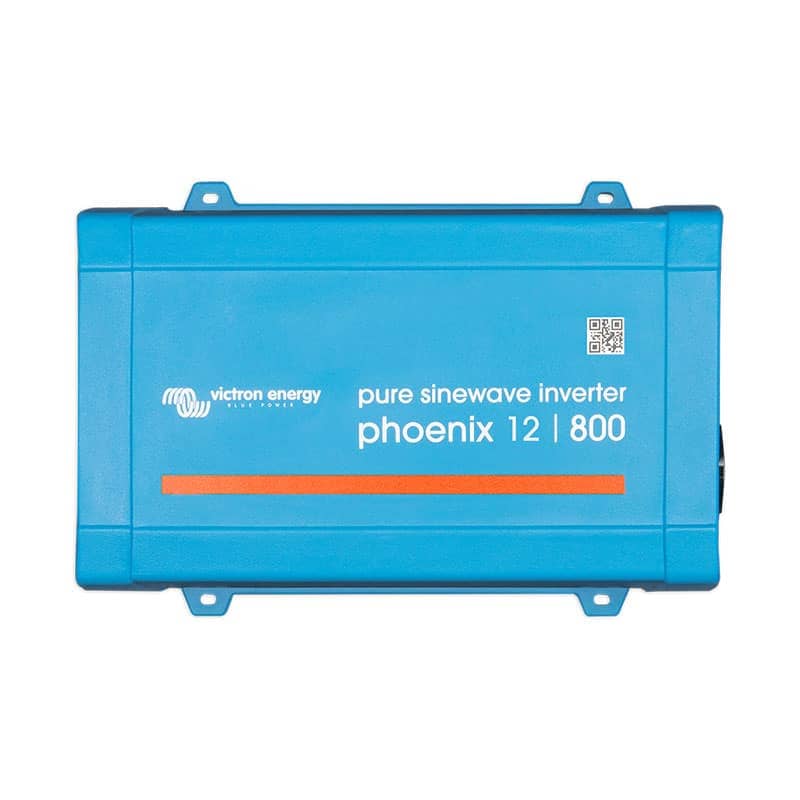

The Victron Phoenix Inverter 12/800 120V VE.Direct NEMA GFCI is engineered to convert 12V DC from leisure or automotive batteries into 120V AC power, suitable for use with domestic or industrial appliances. This inverter provides 800W continuous output and 1600W peak power, capable of running essential devices such as LED power converters, halogen lamps, and electric tools.
This model comes with a NEMA GFCI (Ground Fault Circuit Interrupter) plug, adding an important layer of safety by detecting faults in the circuit and preventing electrical shock hazards. It also features a VE.Direct communication port, allowing users to connect to smartphones, tablets, or computers for remote monitoring and configuration through the VictronConnect app (using a Bluetooth dongle or USB interface).
With configurable settings such as low battery voltage alarm, dynamic cut-off levels, and ECO mode, users can optimize performance for their specific needs. The ECO mode ensures energy efficiency by automatically entering standby when the load drops below 15W and reactivating once the load exceeds a defined level.
Designed for reliability, this inverter is short circuit proof and protected against overheating, ensuring robust operation in a variety of conditions. The high start-up power feature makes it capable of powering devices with high inrush power requirements, such as power converters and electric tools.
Key Features
- NEMA GFCI Plug: Provides added safety with Ground Fault Circuit Interrupter protection, preventing electrical shock hazards.
- VE.Direct Communication Port: For easy connection to smartphones, tablets, or computers for live monitoring and configuration via the VictronConnect app (requires Bluetooth Smart dongle).
- ECO Mode: Automatically switches to standby when load is below 15W, conserving energy and activating when the load exceeds a preset level.
- High Start-Up Power: Capable of handling high inrush currents to start devices like LED power converters and electric tools.
- Short Circuit and Overheating Protection: Built-in safeguards ensure safe and reliable operation.
- Remote On/Off: Remote switching capability via a two-pole connector.
- LED Diagnostics: Simplifies troubleshooting with visual indicators.
- Automatic Transfer Switch Compatibility: Works seamlessly with the Filax Automatic Transfer Switch for fast switchover to another AC source.
Specifications
- Feature: Specification
- Brand: Victron Energy
- Manufacturer Part Number: PIN121800510
- Voltage: 12V DC
- Continuous Output Power: 800W (800VA)
- Peak Power: 1600W
- Output AC Voltage: 120V AC
- Output Frequency: 60 Hz
- Plug Type: NEMA GFCI (Ground Fault Circuit Interrupter)
- Protection Category: IP21
- Efficiency: 90%
- Dimensions (H x W x D): 86 x 172 x 275 mm
- Weight: 4.1 kg
- Warranty: 5 years
- Country of Manufacture: China
