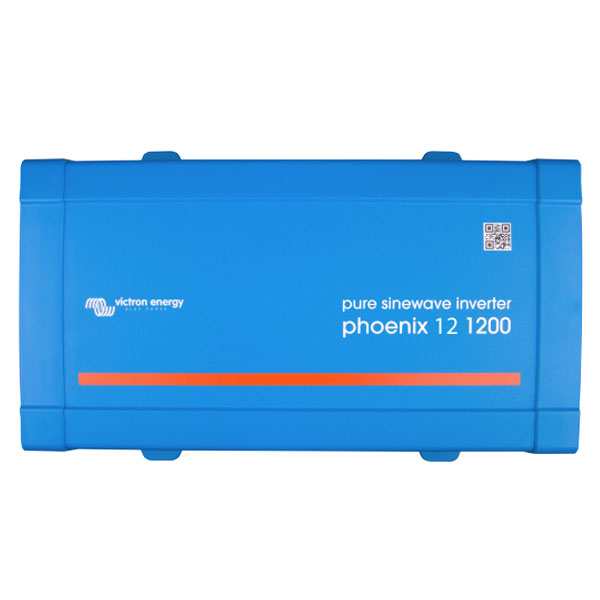

Victron Energy Phoenix Inverter 12/1200 VE.Direct UK (PIN122120400)

Victron part no. PIN122120400

Victron Energy Phoenix Inverter 12/1200 VE.Direct with UK socket (PIN122120400). Pure sine wave 230 V output from a 12 V battery: 1200 VA / 1000 W continuous at 25°C, 850 W at 40°C, 2200 W peak. VE.Direct port for VictronConnect configuration and ECO mode. Sold by an Authorised Victron Energy Installer.

£228.76In stock · 1 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

Victron Energy Phoenix Inverter 12/1200 VE.Direct UK (PIN122120400)

A compact pure sine wave inverter that turns a 12 V battery bank into clean 230 V AC for campervan, cabin and off-grid loads. The UK (BS 1363) socket version suits British installs. Tiny Build Electrics is an Authorised Victron Energy Installer.

Key specifications (Victron datasheet: Inverter VE.Direct 250-1600 VA)

  • Input: 12 V DC (9.2-17 V)
  • Output: 230 V AC, 50/60 Hz (programmable), pure sine wave
  • Continuous power at 25°C: 1200 VA / 1000 W
  • Continuous power at 40°C: 850 W
  • Peak power: 2200 W
  • Max efficiency (12 V): 91%
  • Zero-load power: approx. 10 W; ECO mode down to about 1 W
  • AC outlet: UK BS 1363
  • Remote on/off: yes
  • Size / weight: approx. 117 × 232 × 362 mm / 7.4 kg

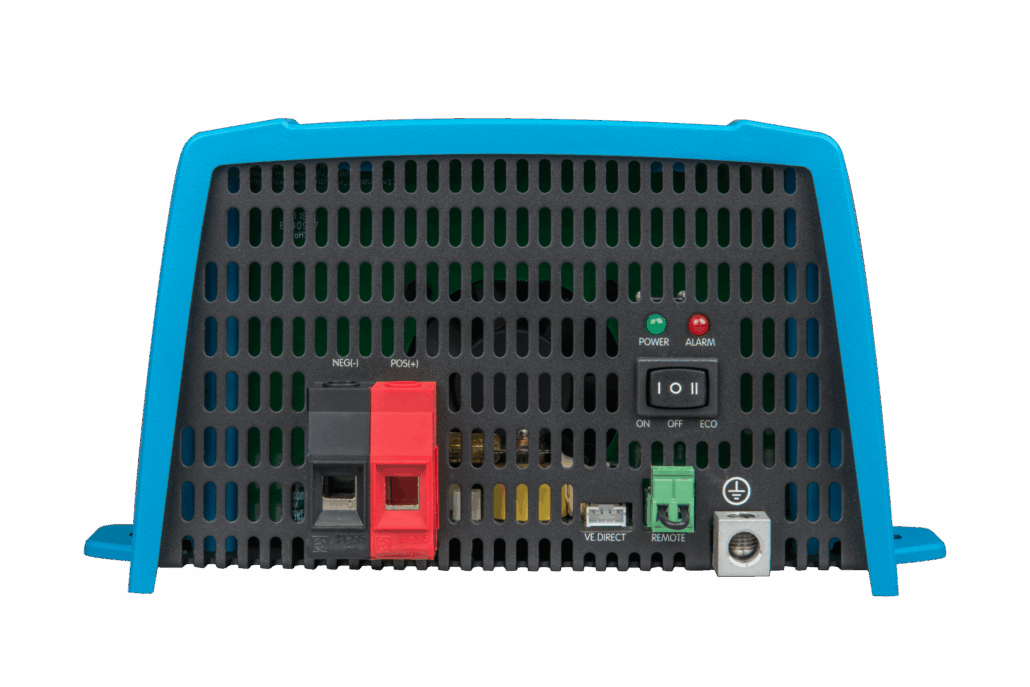

VE.Direct

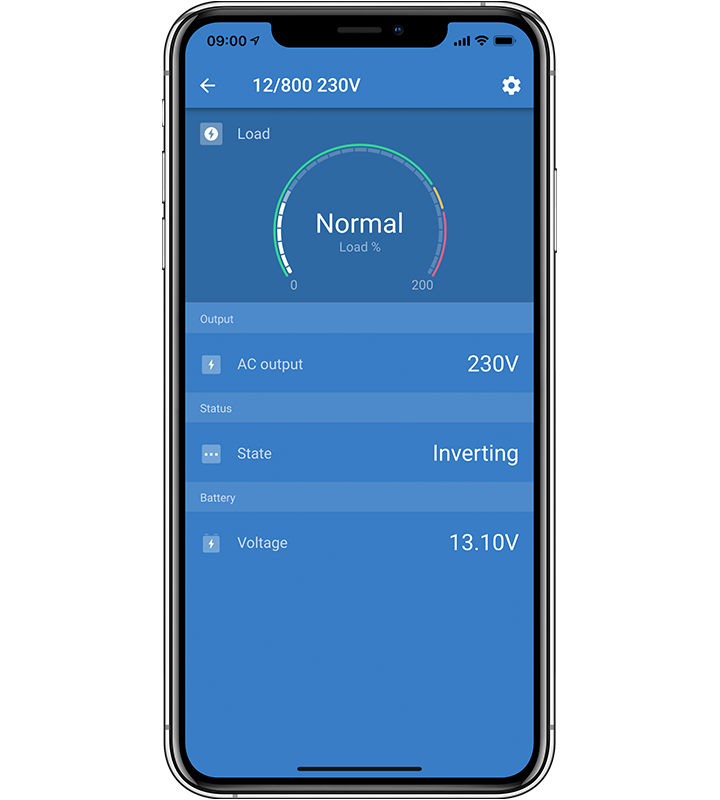

The VE.Direct port connects to a Victron GX device or, with an optional VE.Direct Bluetooth Smart dongle, to the VictronConnect app. You can set low-battery cut-off behaviour, ECO mode and alarms without opening the case.

Protection

Built-in protection for overload, short circuit, over/under battery voltage and over-temperature, with LED status indication. Suitable for leisure and light professional loads that need a true sine wave (chargers, laptops, tools, induction where within rating).

What you get

  • Phoenix Inverter 12/1200 VE.Direct UK socket, manufacturer part PIN122120400
  • DC cables are not included; size them to Victron’s installation guidance for the current draw
