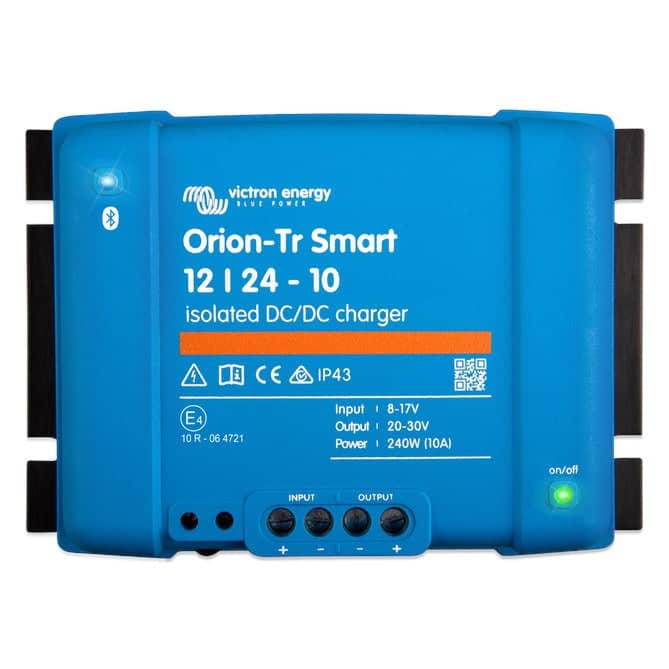

Victron Energy Orion-Tr Smart DC-DC charger 12/24-10A (240W) Isolated ORI122424120

The Victron Orion-Tr Smart DC-DC Charger is a highly efficient, adaptive 3-stage charger designed for use in 12V and 24V dual battery systems. This charger is perfect for vehicles, boats, and other applications where the smart alternator and start battery are used to charge the service battery. It supports both lead-acid and lithium batteries, offering flexibility for various battery types.

The charger features Bluetooth Smart technology, allowing for easy monitoring and programming via any Bluetooth-enabled device such as smartphones or tablets. This enables users to change settings and update the charger with the latest software features. It’s built with a smart alternator compatibility feature that detects when the engine is running, ensuring optimal charging at all times.

With its adaptive 3-stage charging algorithm (bulk, absorption, float), the charger adjusts to the specific needs of the battery, ensuring proper charge times and preventing overcharging. The absorption time is automatically adjusted based on battery discharge levels. For lithium batteries, the absorption time is fixed at 2 hours. The charger is suitable for environments with temperatures up to 55°C, maintaining full-rated output up to 40°C.

Designed for easy installation with screw terminals and the ability to connect multiple units in parallel to increase charging power, the Victron Orion-Tr Smart DC-DC Charger is a reliable, high-performance solution for your battery charging needs.

Key Features

• Bluetooth Smart-enabled for easy monitoring, configuration, and software updates
• Adaptive 3-stage charging algorithm: bulk, absorption, float
• Compatible with lead-acid and lithium batteries
• Smart alternator compatibility: engine running detection mechanism
• Remote on/off control via switch or relay contact
• Can be connected in parallel for increased output power
• High-temperature protection for safe operation in environments up to 55°C
• IP43 protection (when installed with screw terminals oriented downwards)
• Easy installation with screw terminals, no special tools required

Specifications

• Brand: Victron Energy
• Model: Orion-Tr Smart DC-DC Charger
• Part Number: ORI122424120
• GTIN: 8719076046073
• Input Voltage: 12V or 24V DC
• Output Voltage: 12V or 24V DC
• Output Current: Varies (up to 400W)
• Battery Compatibility: Lead-acid and Lithium
• Charge Algorithm: Adaptive 3-stage: bulk, absorption, float
• Temperature Range: Operates up to 55°C; full output up to 40°C
• Protection: Short-circuit proof, high-temperature protection
• Parallel Capability: Unlimited number of units can be connected in parallel
• Remote Control: On/off switch or relay contact
• Bluetooth: Yes, for monitoring and software updates
• Installation: Easy with screw terminals (no special tools required)
• Dimensions: 150 x 90 x 60 mm
• Weight: 0.7 kg
• IP Rating: IP43 (when terminals are installed downwards)
• Warranty: 5 years
