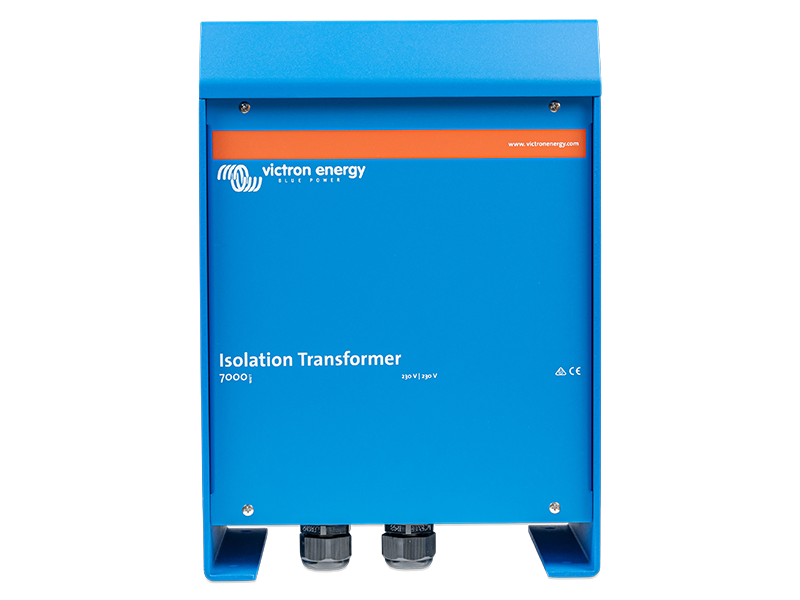

Victron Energy Isolation Transformer 7000W 230V ITR000702002

This professional-grade isolation transformer eliminates the risk of electrolytic (galvanic) corrosion by isolating the onboard electrical system from the shore ground. Ideal for boats, yachts, and marine installations, it allows safe earthing on board while keeping the system RCD-compliant and corrosion-free.

Its toroidal core design ensures high efficiency and low operational noise, while the soft start circuitry prevents circuit breaker trips when connecting to shore power. Additionally, the transformer provides a 5% voltage boost to compensate for voltage drop commonly seen in marina supply points.

Key Features

• 7000W Continuous Power: Supports high-demand electrical systems on board
• Electrical Isolation: Prevents galvanic corrosion and protects against ground faults
• 1:1.05 Voltage Ratio: Converts 230V input to 240V output to offset marina voltage drop
• Soft Start Circuitry: Avoids nuisance tripping when connecting shore power
• Toroidal Transformer Technology: Quiet operation with minimal power loss
• Variable Speed Cooling Fan: Efficient heat dissipation with over-temperature protection
• Compliant and Safe: Allows safe RCD operation and short-circuit protection

Specifications

• Product Name: Isolation Transformer 7000W
• Part Number: ITR000702002
• Input Voltage: 230 V AC
• Output Voltage: 240 V AC (1:1.05 boost ratio)
• Power Rating: 7000 W (Continuous)
• Frequency: 50/60 Hz
• Current Rating: 32 A
• Cooling: Variable speed fan
• Soft Start: Yes
• Over-Temperature Protection: Yes
• Ingress Protection: IP21
• Operating Temperature: -20°C to +40°C
• Weight: 31 kg
• Dimensions (H x W x D): 362 x 258 x 218 mm
• Barcode (EAN): 8719076022442
• Brand: Victron Energy
