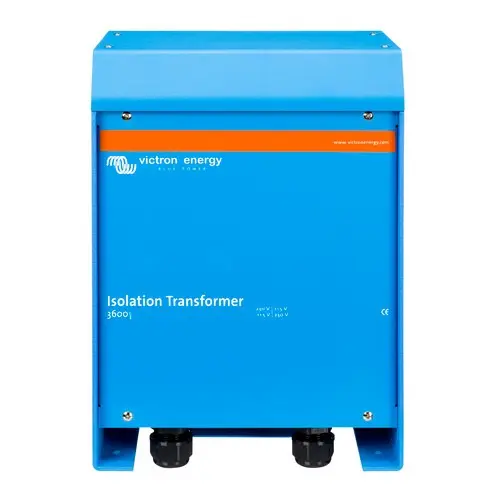

Victron Energy Isolation Transformer 3600W 115/230V ITR040362042

Designed to protect your vessel’s critical components, the Victron Isolation Transformer isolates all metal parts from shore-side ground, while still allowing protective devices like GFCIs and fuses to function properly. Without an isolation transformer, galvanic corrosion can quickly degrade shafts, propellers, and anodes. This unit eliminates that risk completely.

The unit features toroidal wound technology for quiet operation and high efficiency, and includes a built-in soft start to prevent shore-side circuit breakers from tripping when connecting to power. With a robust IP21-rated housing, this transformer is built for durability in demanding marine environments.

Key Features

• 3600W continuous output, suitable for demanding onboard systems
• Fully isolates the AC shore supply from the vessel’s electrical system
• Prevents galvanic corrosion: no need for galvanic isolators or polarity alarms
• Soft start functionality: prevents tripping shore-side circuit breakers
• Toroidal wound transformer for quiet, efficient operation
• Supports 115V or 230V input/output configurations
• Recommended for use on all boats: not limited to metal hulls
• IP21-rated housing for onboard safety
• Backed by a 5-year Victron Energy warranty

Specifications

• Product Name: Victron Energy Isolation Transformer 3600W
• Product Code: ITR040362042
• Brand: Victron Energy
• Input Voltage: 115V or 230V AC
• Output Voltage: 115V or 230V AC
• Power Rating: 3600W
• Soft Start: Yes (standard feature)
• Technology: Toroidal wound for silent operation
• Ingress Protection: IP21
• Dimensions (H x W x D): 362 × 258 × 218 mm
• Weight: 23 kg
• Recommended Use: Marine, boats, yachts, and shore-connected systems
• Warranty: 5 Years
