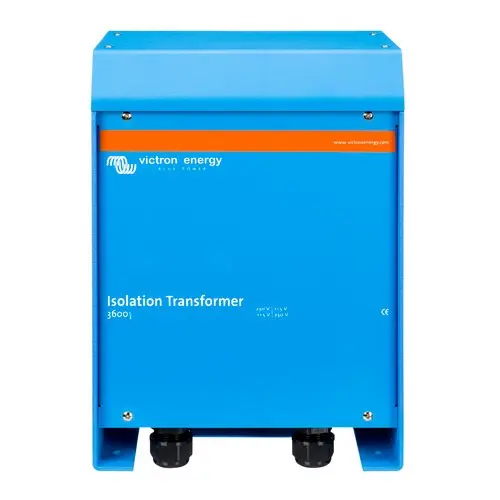

Victron Energy Isolation Transformer 3600W Auto 115/230V ITR050362042

Unlike standard models, this auto-transformer version detects and adapts to 115V or 230V input and output, providing greater flexibility for global cruising and variable dockside connections. By completely isolating the shore power from the onboard AC system, it eliminates electrical continuity, protecting your boat against electrolytic and galvanic corrosion.

Built with toroidal wound technology for whisper-quiet operation and high efficiency, this transformer is equipped with soft-start circuitry to prevent tripping shore-side circuit breakers upon connection. It is a must-have for all vessels regardless of hull type where metal parts such as shafts or propellers are exposed to water.

Key Features

• 3600W output for robust marine AC system protection
• Auto-sensing input and output: automatically adjusts between 115V and 230V
• Complete electrical isolation from shore supply for maximum safety
• Eliminates galvanic corrosion: no need for galvanic isolators or polarity alarms
• Soft start technology prevents tripping shore-side breakers
• Toroidal transformer design for silent operation and high energy efficiency
• IP21-rated housing for onboard marine environments
• Recommended for all boats, including fibreglass, aluminium, and steel hulls
• Backed by a 5-year Victron warranty for long-term peace of mind

Specifications

• Product Name: Victron Energy Isolation Transformer Auto 3600W
• Product Code: ITR050362042
• Power Output: 3600W
• Input Voltage: Auto-selecting 115V / 230V AC
• Output Voltage: Auto-selecting 115V / 230V AC
• Soft Start: Yes
• Transformer Type: Toroidal
• Ingress Protection Rating: IP21
• Dimensions (H x W x D): 362 × 258 × 218 mm
• Weight: 23 kg
• Marine Safety Compliance: Yes, eliminates need for galvanic isolators
• Warranty: 5 Years
• Recommended Use: Marine AC systems, shore power isolation
