Authorised Victron Energy InstallerVictron Energy Cyrix-Li-load Intelligent load relay 24/48V-120A  CYR020120450
Victron EnergyExcellent on Google

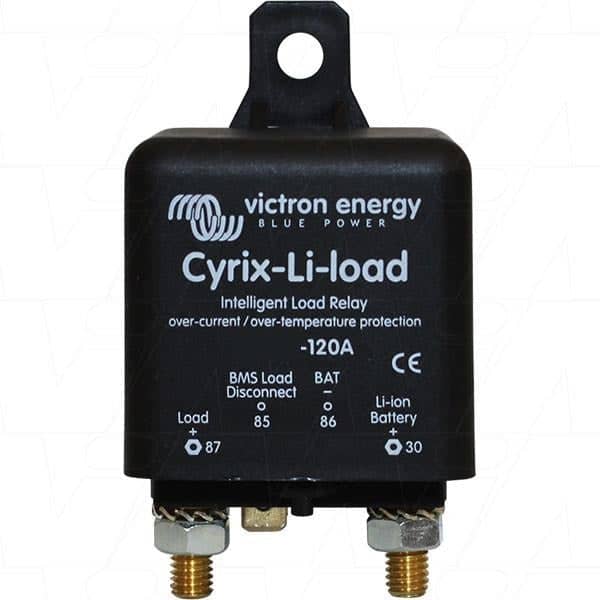

Victron Energy Cyrix-Li-load Intelligent load relay 24/48V-120A CYR020120450

Victron part no. CYR020120450

£61.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Cyrix-Li-Load 12/24V-230A (CYR010230450) is a high-power load relay built to protect lithium battery systems by preventing excessive discharge. It automatically disengages loads when the control input becomes free-floating, helping to prevent battery damage and extend battery life.

If the battery voltage recovers after disconnection, the Cyrix-Li-Load will attempt to re-engage after 30 seconds. If the relay fails to reconnect after three attempts, it remains disconnected until the battery voltage increases to more than 13V (26V or 52V) for at least 30 seconds, ensuring the battery is properly recharged before restoring power.

Ideal for off-grid power systems, marine applications, RVs, and backup power setups, this relay offers high current capacity (230A), an LED status indicator, and IP54-rated protection. It is also supplied with a 1-metre control cable for easy installation.

Key Features

  • Automatic load disconnection: Prevents excessive discharge to protect lithium batteries
  • Smart re-engagement: Attempts to reconnect every 30 seconds after disconnection
  • Three reconnection attempts: If unsuccessful, it remains off until voltage exceeds 13V (26V or 52V) for 30 seconds
  • Energy-efficient operation: Consumes only 4mA when open
  • IP54-rated protection: Resistant to dust and water, ensuring durability in harsh environments
  • Compact and lightweight: Designed for easy installation in off-grid, marine, and industrial applications
  • High current capacity: Handles up to 120A continuous load
  • Reliable Victron quality: Comes with a 5-year warranty

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: CYR020120450
  • Voltage Compatibility: 24V / 48V
  • Continuous Current & Breaking Capacity: 120A
  • Current Consumption (When Open): 4 mA
  • Protection Rating: IP54 (Dust and water-resistant)
  • Dimensions (H x W x D): 46 x 46 x 80 mm
  • Weight: 0.11 kg
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
