Authorised Victron Energy InstallerVictron Energy Cyrix-Li-charge Intelligent Charge Relay 12/24V-230A  CYR010230430
Victron EnergyExcellent on Google

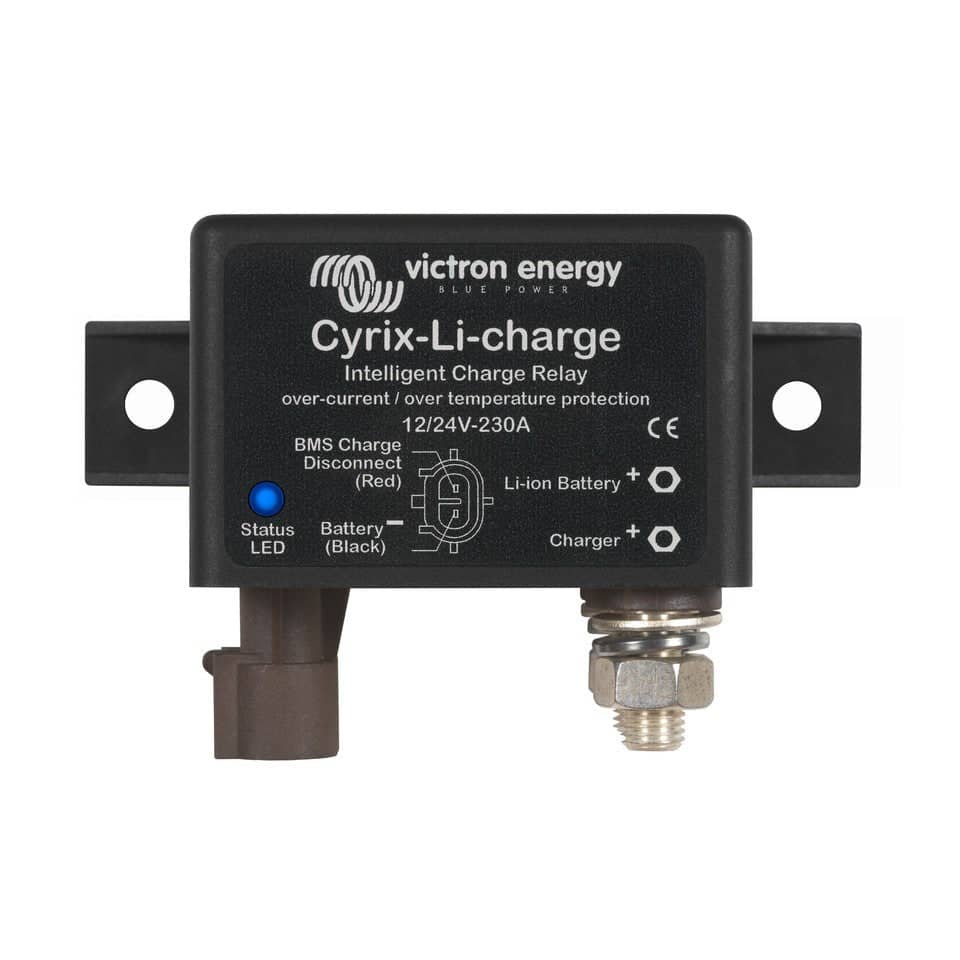

Victron Energy Cyrix-Li-charge Intelligent Charge Relay 12/24V-230A CYR010230430

Victron part no. CYR010230430

£140.99In stock · 1 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Cyrix-Li-charge is an intelligent charge relay designed to enhance your battery charging system. It connects and disconnects the battery charger to the battery, offering intelligent charging control to prevent overcharging and safeguard your system. Ideal for use with 12V, 24V, and 120A systems, this relay ensures safe and efficient charging with advanced monitoring features.

Key Features

  • 230A Continuous Current & Breaking Capacity: Handles high current loads of up to 230A, perfect for large systems and high-demand applications.
  • Automatic 3-Second Delay Reconnection: Reconnects the charger with a 3-second delay after a disconnect, ensuring stable charging cycles.
  • Over-Voltage & Over-Temperature Protection: Automatically disengages when cell over-voltage or over-temperature conditions are detected to prevent damage.
  • Voltage Sensing: Connects to the charger when the voltage is 13.7V or higher (for 12V systems) and 27.4V or higher (for 24V systems).
  • Advanced Control Features: Disconnects after 1 hour when battery voltage falls below 13.5V, with a delay to ensure stability in power supply.
  • LED Status Indicators: Provides visual indication of the system status for easy monitoring.
  • Control Cable Included: Comes with a 1-metre control cable for quick and easy installation.
  • Compact Design: The small size and versatile mounting options make it ideal for integration into a variety of systems.
  • IP54 Protection: Offers protection from dust and water, ensuring reliability in outdoor and harsh environments.
  • 5-Year Warranty: Backed by a 5-year warranty for peace of mind and long-term performance.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: CYR010230430
  • Voltage: 12/24V
  • Continuous Current & Breaking Capacity: 230A
  • Current Consumption When Open: 4mA
  • Control Cable Included (Length): Yes, 1m
  • LED Status Indication: Yes
  • Protection Category: IP54
  • Dimensions (HxWxD): H65 x W100 x D50mm
  • Weight: 0.27kg
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
  • Brand: Victron Energy
  • Manufacturer Part Number: CYR010230430
  • Voltage: 12/24
  • Continuous current & Breaking capacity at 12V or 24V: 230A
  • Current Consumption When Open: 4 mA
  • Control Cable Included (Length 1 m): Yes
  • LED Status Indication: Yes
  • Protection Category: IP54
  • Dimensions: H65 x W100 x D50mm
  • Weight (kg): 0.27
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia
