Description

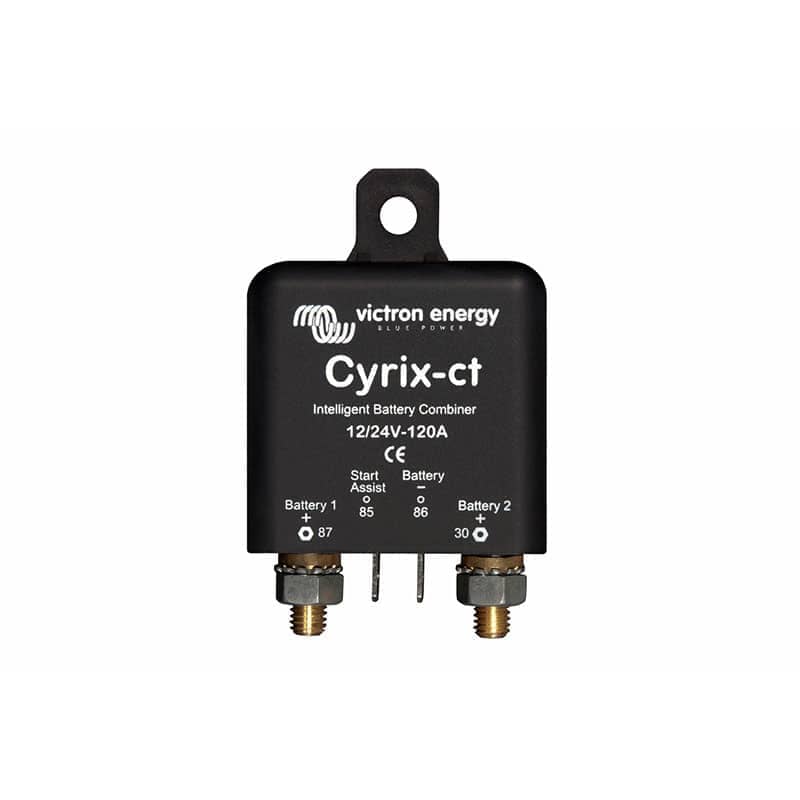

The Victron Cyrix-ct Intelligent Battery Combiner Retail 12/24V-120A (CYR010120011R) is a sophisticated battery monitoring system designed to provide reliable and intelligent battery management. Unlike traditional battery combiners that only engage or disengage based on a fixed voltage threshold, the Cyrix-ct monitors the general voltage trend (whether it is increasing or decreasing) and only reverses its action if the trend has changed over a certain period. This intelligent approach prevents unwanted switching, such as in cases of short, high amperage loads or discharged battery banks that cause voltage to drop too quickly.
The Cyrix-ct also includes overheating protection, disengaging when temperatures become excessive, and automatically reconnecting after the unit cools down. Additionally, the device is equipped with long bolts for the connection of multiple cables, and it features LED status indicators (on the 12/24-230 version) to show the current operational status and any alarms (such as over temperature or voltage issues).
Perfect for use in off-grid power systems, marine applications, and backup systems, the Cyrix-ct offers 120A continuous current capacity in a compact and durable design.
Key Features
- Intelligent battery monitoring – Monitors voltage trends to prevent unwanted switching due to high amperage loads or voltage drops
- Automatic disconnect and reconnect – Ensures reliable operation by engaging or disengaging based on the trend of voltage, rather than fixed thresholds
- Overheating protection – Automatically disengages in case of excessive contact temperature and reconnects once cooled down
- Long bolts for multiple cable connections – 13 mm (M6) for Cyrix 12/24-120
- LED status indication (Cyrix 12/24-230 model) – Displays operational status and alerts for issues like over temperature or excessive voltage
- 120A continuous current capacity – Suitable for off-grid and backup power systems
- Compact design – Easy to install in a wide range of applications
- Retail packaging – Includes all necessary components for installation
Specifications
- Feature: Specification
- Brand: Victron Energy
- Manufacturer Part Number: CYR010120011R
- Voltage Compatibility: 12V / 24V
- Continuous Current & Breaking Capacity: 120A
- LED Status Indication: Yes (on Cyrix 12/24-230 model)
- Long Bolts: 13 mm (M6)
- Overheating Protection: Yes (disengages on excessive temperature)
- Current Consumption (When Open): Low power consumption (4 mA)
- Dimensions (H x W x D): Compact, easy to install
- Weight: Lightweight design for easy installation
- Warranty: 5 Years
- Country of Manufacture: Malaysia
