Description

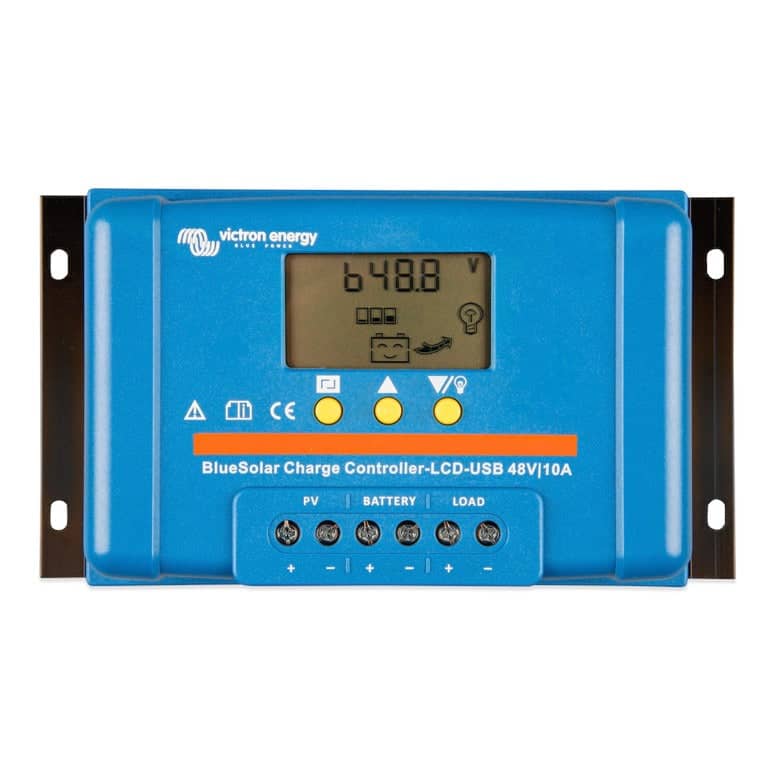

The BlueSolar PWM-LCD & USB 48V-10A controller features adjustable load output to prevent battery over-discharge. When the battery reaches a pre-set voltage, the load output disconnects, preserving the battery's health. It also allows you to set day/night timings, turning the load output on at dusk. The programmable battery charge algorithm supports AGM, GEL, Flooded, and LiFePO4 batteries (with internal BMS only). Additionally, it offers two 5V USB outputs for charging devices, with a combined output of 2A.
With a rated charge current of 10A, this controller is designed for reliable 48V solar systems, and it is protected by IP20 for indoor use.
Key Features
- Liquid Crystal Display (LCD) – For status monitoring and easy setup.
- Adjustable Load Output – Prevents over-discharge by disconnecting the load at a pre-set voltage.
- Day/Night Timing – Pre-set ON-time after dusk for load output.
- Programmable Battery Charge Algorithms – Supports AGM, GEL, Flooded, and LiFePO4 batteries (with internal BMS).
- Two 5V USB Outputs – With a combined current of 2A for charging USB devices.
- Automatic Voltage Detection – Supports 48V systems.
- IP20 Protection – Dust-protected for indoor use.
- 5-Year Warranty – Reliable performance and peace of mind.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: SCC040010050
- GTIN: 8719076046233
- Voltage: 48V
- Rated Charge Current: 10A
- Protection Category: IP20
- Bluetooth Enabled: No
- Dimensions: H101 x W184 x D47mm
- Weight: 0.3kg
- Warranty: 5 Years
- Country of Manufacture: China
