Authorised Victron Energy InstallerVictron Energy BlueSolar MPPT 150/70-MC4   SCC010070300
Victron EnergyExcellent on Google

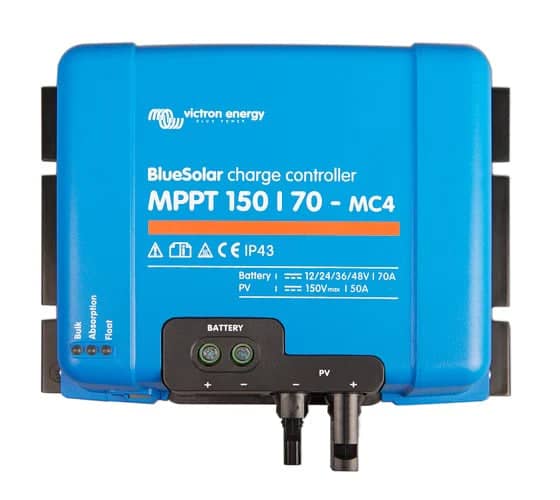

Victron Energy BlueSolar MPPT 150/70-MC4 SCC010070300

Victron part no. SCC010070300

£265.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

Introducing the Victron Energy BlueSolar MPPT 150/70, a powerful solar charger that maximises energy harvest for your batteries.

With ultra-fast Maximum Power Point Tracking (MPPT) technology, it intelligently adapts to changing light conditions, ensuring a swift and efficient full charge.

Remote monitoring, intelligent load output, and a robust design make it the ideal choice for maintaining battery health and extending their lifespan.

Key Features

Features

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98 %.

Flexible charge algorithm

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.

Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more BlueSolar Charge Controllers. (VE.Direct Bluetooth Smart dongle needed)

Real-time data display options

  • Color Control GX or other GX devices: see the Venus documents on our website.
  • A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: SCC010070300
  • GTIN: 8719076025528
  • Battery Voltage: 12/24/48V Auto Select (software tool needed to select 36V)
  • Rated Charge Current: 70A
  • Nominal PV Power, 12V: 1000W
  • Nominal PV Power, 24V: 2000W
  • Max. PV Short Circuit Current: 50A
  • Maximum PV Open Circuit Voltage: 150V absolute maximum coldest conditions 145V start-up and operating maximum
  • Efficiency: 98%
  • Charge Algorithm: Multi-stage adaptive
  • Data Communication Port: VE.Direct
  • IP Rating: IP43 (electronic components), IP22 (connection area)
  • Dimensions: H215 x W250 x D95mm
  • Weight: 3Kg
  • Warranty: 5 Years

Datasheets

Datasheet

Manual
