Description

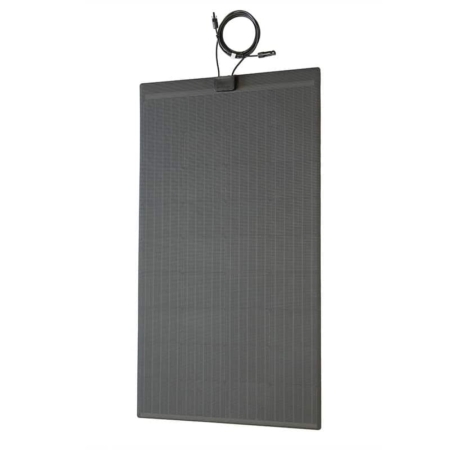

Our Foxygen 320W Solar Panel is a lightweight, flexible solar panel built for life on the road. It delivers reliable off-grid power with a sleek, low-profile design that fits perfectly on curved surfaces.
Key Features
- Light Weight
- Waterproof IP67
- Easy Installation
- 1 Year Warranty
Specifications
Electrical Specifications
- Max. Power (Pmax): 320W
- Open Circuit Voltage (Voc): 29.4V
- Short Circuit Current (Isc): 14.57A
- Voltage at Pmax (Vmp): 23.94V
- Current at Pmax (Imp): 13.37A
- Solar Cells Efficiency: 25%
- Power Tolerance: 0~±5%
- Temperature Coefficient (Pmax): -0.35%/°C
- Temperature Coefficient (Isc): +0.04%/°C
- Temperature Coefficient (Voc): -0.25%/°C
*STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5.
Mechanical Specifications
- Dimensions: 1150mm x 1400mm
- Weight: 5.75Kg
- Solar Cell: BC Solar Cells
- Junction Box: IP67
- Cable: 4mm², 4M
- Warranty: 1 Year
Datasheets
Data Sheet
