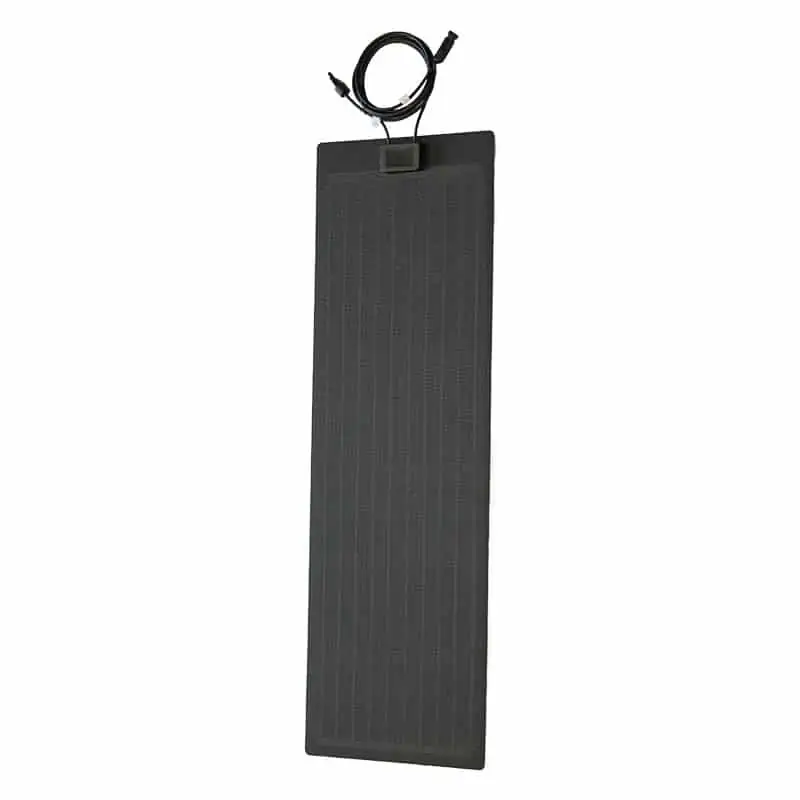

60W ETFE Semi-Flexible Solar Panel 1080 x 340 x 2.5mm

The 60W ETFE Semi Flexible Solar Panel is designed to provide reliable and efficient power for outdoor enthusiasts and off-grid users. With its lightweight and flexible structure, it can bend up to 10 degrees, making it ideal for installation on curved surfaces like camper roofs, boat decks, and other uneven areas.

Constructed with high-efficiency monocrystalline silicon cells, the panel ensures maximum power output even in low-light conditions. Its ETFE coating enhances durability, weather resistance, and self-cleaning capabilities, ensuring long-lasting performance. The IP67 rated junction box provides excellent water and dust resistance, making this panel suitable for harsh outdoor environments.

Key Features

• 60W Power Output: Efficient power generation for small appliances and devices.
• Semi-Flexible Design: Bends up to 10 degrees, perfect for curved surfaces.
• ETFE Coating: Increases durability, weather resistance, and self-cleaning.
• High-Efficiency Monocrystalline Cells: Ensures maximum power even in low light.
• IP67 Rated Junction Box: Waterproof and dustproof for outdoor use.
• Easy Installation: Comes with MC4 connectors and 1.5m cables for quick setup.
• Warranty: 2 Year Warranty

Specifications

• Model: OS60-20MFX
• Maximum Power (Pmax): 60W
• Open-Circuit Voltage (Voc): 23.6V
• Short-Circuit Current (Isc): 3.3A
• Voltage at Pmax (Vmp): 20V
• Current at Pmax (Imp): 3A
• Power Tolerance: ±3%
• Maximum System Voltage: 500V
• Dimensions (mm): 1080 x 340 x 2.5
• Cable Exit: Front
• Thickness of ETFE: 0.025mm
• Cable/Connectors: 1.5m, 2× 2.5mm² with MC4 connectors
• Solar Cell Type: 156 Monocrystalline silicon cells
• Bypass Diode: 2pcs (10A each)
