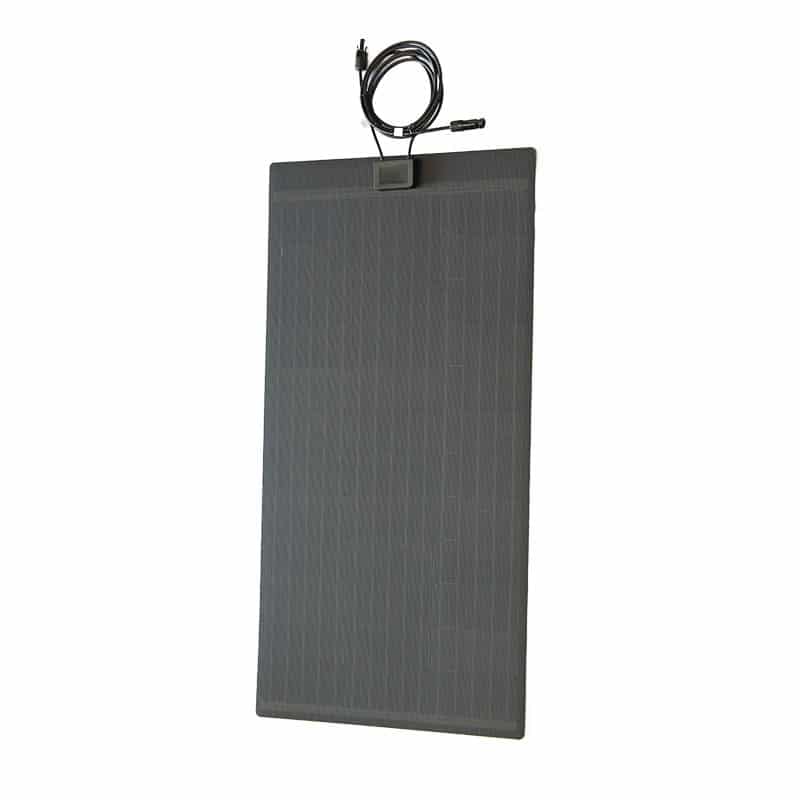

100W ETFE Semi-Flexible Solar Panel 960 x 660 x 2.5mm

The 100W ETFE Semi Flexible Solar Panel is a reliable and efficient power source designed for off-grid applications. Its high-efficiency monocrystalline silicon cells ensure optimal energy production, even in low-light conditions. The ETFE coating increases durability and UV resistance, making this panel perfect for outdoor environments.

This panel's semi-flexible design allows for up to a 10-degree bend, making it easy to install on curved surfaces like camper roofs, boat decks, and RVs. It is lightweight and slim, allowing for seamless integration without adding significant weight or bulk. The IP67 rated junction box provides protection against water and dust, ensuring reliable performance in any weather.

Ideal for camping, boating, or any off-grid adventure, the 100W ETFE Semi Flexible Solar Panel is a versatile and eco-friendly power solution.

Key Features

• 100W Power Output: Efficient energy generation for off-grid setups.
• Semi-Flexible Design: Curves up to 10 degrees, perfect for curved surfaces.
• ETFE Coating: Enhances durability, UV resistance, and self-cleaning.
• High-Efficiency Monocrystalline Cells: Maximum power output even in low light.
• IP67 Waterproof Junction Box: Reliable performance in all weather conditions.
• Easy Installation: Includes MC4 connectors and a 1.5m cable for quick setup.
• Warranty: 2 Year Warranty

Specifications

• Model No: OS100-20MFX
• Maximum Power (Pmax): 100W
• Open-Circuit Voltage (Voc): 23.6V
• Short-Circuit Current (Isc): 5.5A
• Voltage at Pmax (Vmp): 20V
• Current at Pmax (Imp): 5A
• Power Tolerance: ±3%
• Maximum System Voltage: 500V
• Dimensions (mm): 960 x 660 x 2.5
• Cable Exit: Front
• Flexible Angle: Up to 10 degrees
• Junction Box: IP67 Rated
• Cable/Connectors: 1.5m, 2× 2.5mm² cable with MC4 connectors
• Type of Solar Cells: 156 Monocrystalline silicon cells
• Bypass Diode: 2pcs (10A each)
• Back Sheet: Fibreglass
• Thickness of ETFE: 0.025mm
• Thickness of Solar Panel: 2.5mm
