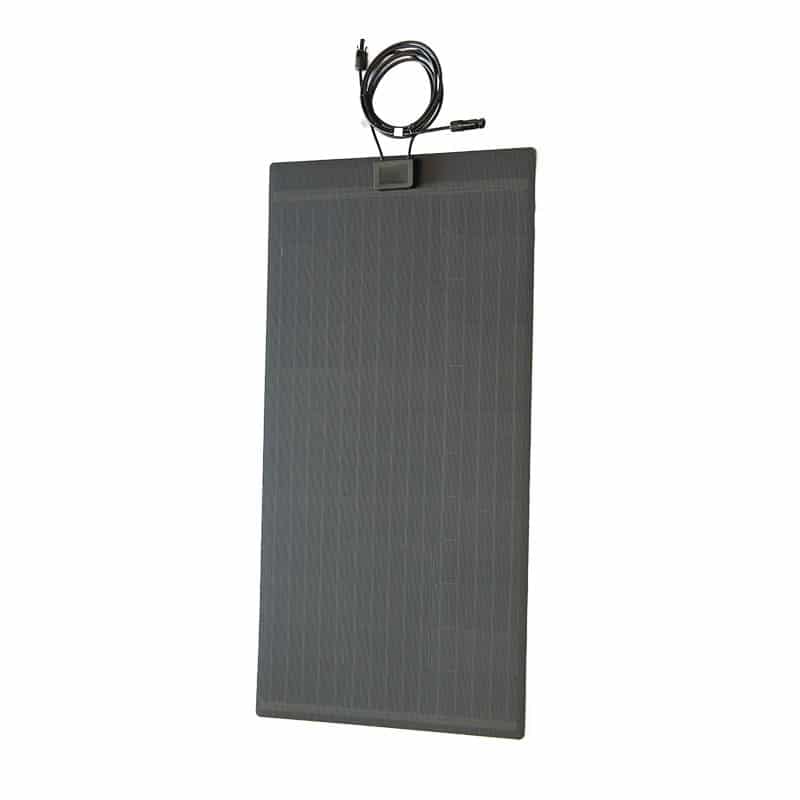

75W ETFE Semi-Flexible Solar Panel 960 x 500 x 2.5mm

The 75W ETFE Semi Flexible Solar Panel offers a lightweight and efficient power solution for off-grid applications. Designed with high-efficiency monocrystalline silicon cells, this panel delivers consistent power output, even in low-light conditions. Its semi-flexible design allows it to bend up to 10 degrees, making it easy to install on curved surfaces, such as boat decks or camper roofs.

The ETFE coating enhances durability, UV resistance, and self-cleaning properties, ensuring long-term performance. With an IP67 rated junction box, this panel is built to withstand harsh weather conditions, including heavy rain and dust. Its lightweight structure and easy-to-install design make it an ideal choice for outdoor enthusiasts and off-grid users.

Key Features

• 75W Power Output: Efficient energy solution for off-grid appliances.
• Semi-Flexible Design: Bends up to 10 degrees, suitable for curved surfaces.
• ETFE Coating: Durable, UV resistant, and self-cleaning for long-term use.
• High-Efficiency Monocrystalline Cells: Reliable power even in low light.
• IP67 Rated Junction Box: Waterproof and dustproof for rugged environments.
• Easy Installation: Includes MC4 connectors and 1.5m cables.
• Warranty: 2 Year Warranty

Specifications

• Model: OS75-20MFX
• Maximum Power (Pmax): 75W
• Open-Circuit Voltage (Voc): 23.6V
• Short-Circuit Current (Isc): 4.12A
• Voltage at Pmax (Vmp): 20V
• Current at Pmax (Imp): 3.75A
• Power Tolerance: ±3%
• Maximum System Voltage: 500V
• Dimensions (mm): 960 x 500 x 2.5
• Cable Exit: Front
• Thickness of ETFE: 0.025mm
• Cable/Connectors: 1.5m, 2× 2.5mm² with MC4 connectors
• Solar Cell Type: 156 Monocrystalline silicon cells
• Bypass Diode: 2pcs (10A each)
