Description

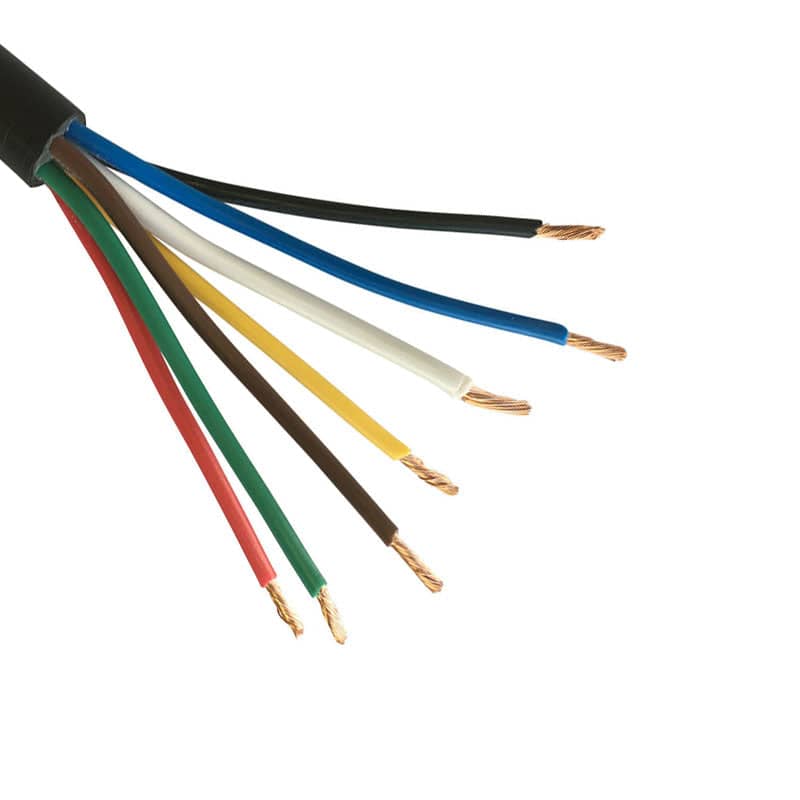

The 7 Core Automotive High Temp Thinwall Cable – 1mm (C706TW) is a space-saving, high-performance cable designed for automotive, marine, and other low-voltage systems. This cable represents the next-generation alternative to standard BS6862 PVC cables, offering a thinner profile, reduced weight, and enhanced heat resistance.
Each core consists of a plain copper conductor, insulated with hard grade, lead-free thermoplastic PVC, manufactured in compliance with ISO 6722 Class B and EN 13602 standards. With a temperature range of -40°C to +105°C (up to +120°C in short bursts), the cable is ideal for demanding automotive environments.
The 7-core configuration makes it especially suited for complex vehicle wiring harnesses, including trailers, lighting, sensors, switch controls, and more. Its compact size and higher amp rating per cross section also provide opportunities to downsize cable runs and reduce installation costs.
This cable is resistant to petrol, lubricating oils, and diluted acids, making it a trusted choice among leading OEMs and vehicle manufacturers.
Key Features
- 7 Core cable with 1.0mm² cross-sectional area per conductor
- Thinwall insulation saves up to 30% space compared to traditional PVC cables
- High-temperature rated PVC insulation for longevity and durability
- Plain copper conductor ensures flexibility and superior conductivity
- Rated at 16.5A – suitable for a wide range of automotive applications
- Voltage range: 12V & 24V systems (MAX 60V)
- ISO 6722 Class B and LV112 compliant, used by leading OEMs
- Resistant to petrol, oils, and diluted acids
- Lightweight, helping to reduce overall vehicle weight
- Ideal for wiring harnesses, lighting systems, relays, and control panels
- Commonly used in vehicles manufactured after 1995
Specifications
- Product Code: C706TW-50B
- Cable Type: 7 Core Automotive High Temp Thinwall Cable
- Conductor Cross Section: 1.0mm² per core
- Number of Cores: 7
- Nominal Current Rating: 16.5A
- Voltage Rating: 12V & 24V systems (Max 60V)
- Insulation Material: Hard Grade Lead-Free PVC (ISO 6722 Class B)
- Conductor Material: Plain Copper (EN 13602, LV112 Type B)
- Temperature Range: -40°C to +105°C (up to +120°C excursions)
- Chemical Resistance: Petrol, lubricating oils, diluted acids
- Volume Saving: Approx. 30% less bulk than standard PVC cables
- Application Examples: Vehicle lighting, trailer connections, wiring looms
- Suitable For: Automotive, marine, agricultural, and industrial
- Unit Sold: Per metre
