Description

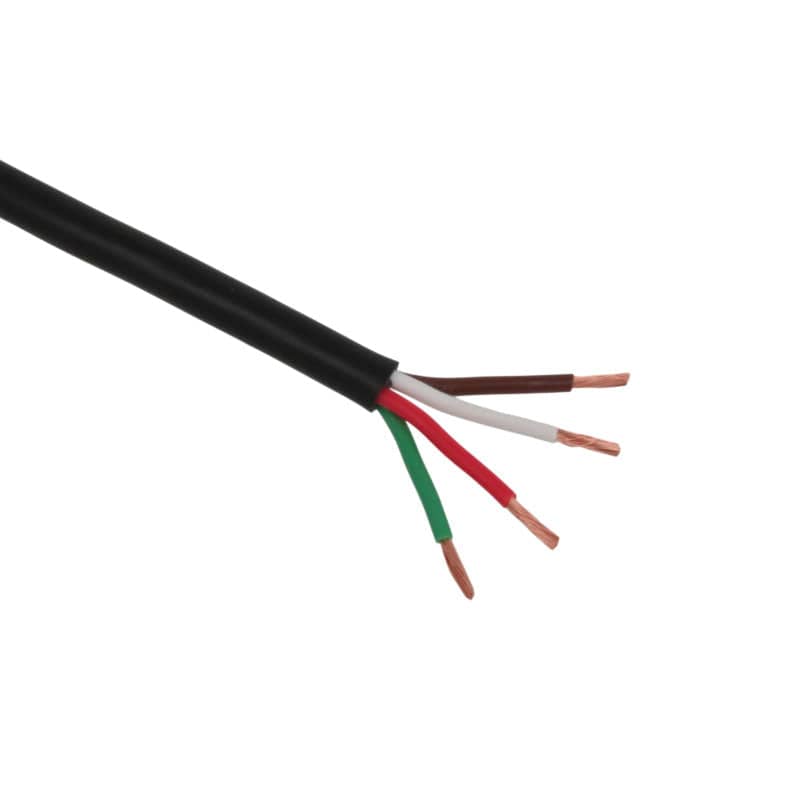

The 4 Core Automotive High Temp Thinwall Cable – 1.5mm (C403TW) is an advanced cable solution engineered for demanding automotive and marine wiring environments. Developed to exceed the performance of traditional Standard PVC BS6862 cables, this cable offers enhanced thermal endurance, reduced weight, and space-saving thinwall insulation.
This modern cable type is widely adopted by OEM manufacturers thanks to its robust design and reliability. Its hard-grade, lead-free thermoplastic PVC insulation provides exceptional resistance to heat, abrasion, and automotive chemicals, including petrol, oils, and diluted acids. With its plain copper conductors manufactured to strict international standards (ISO 6722, EN 13602, LV112), this cable guarantees stable performance and longer lifespan in both 12V and 24V systems.
Ideal for use in vehicle wiring harnesses, the 4-core construction makes it suitable for various multi-circuit applications such as lighting systems, sensors, and power distribution, while also helping to reduce cable bundle bulk by up to 30%.
Key Features
- 4 Core cable with 1.5mm² cross-sectional area per conductor
- High-temperature rated thinwall PVC insulation for improved heat and abrasion resistance
- Plain copper conductor for excellent conductivity and flexibility
- Designed for 12V and 24V low-voltage systems, up to 60V max
- Nominal current rating: 21A per core
- Ideal for automotive harnesses, marine systems, and industrial machinery
- Compliant with ISO 6722 Class B and EN 13602 standards
- Resistant to petrol, lubricating oils, and diluted acids
- Lightweight and compact, offering up to 30% space savings
- OEM approved and trusted by industry leaders
- Sold by the metre for flexible ordering
Specifications
- Product Code: C403TW
- Cable Type: 4 Core Automotive High Temp Thinwall Cable
- Conductor Cross Section: 1.5mm² per core
- Number of Cores: 4
- Nominal Current Rating: 21A
- Voltage Rating: 12V & 24V systems (Max 60V)
- Insulation Material: Hard Grade Lead-Free PVC (ISO 6722 Class B)
- Conductor Material: Plain Copper (EN 13602, LV112 Type B)
- Temperature Range: -40°C to +105°C (up to +120°C excursions)
- Chemical Resistance: Petrol, oils, diluted acids
- Weight & Volume Saving: Approx. 30% less bulk than standard PVC cables
- Typical Use: Automotive harnesses, lighting, sensors, controls
- Unit Sold: Per metre
