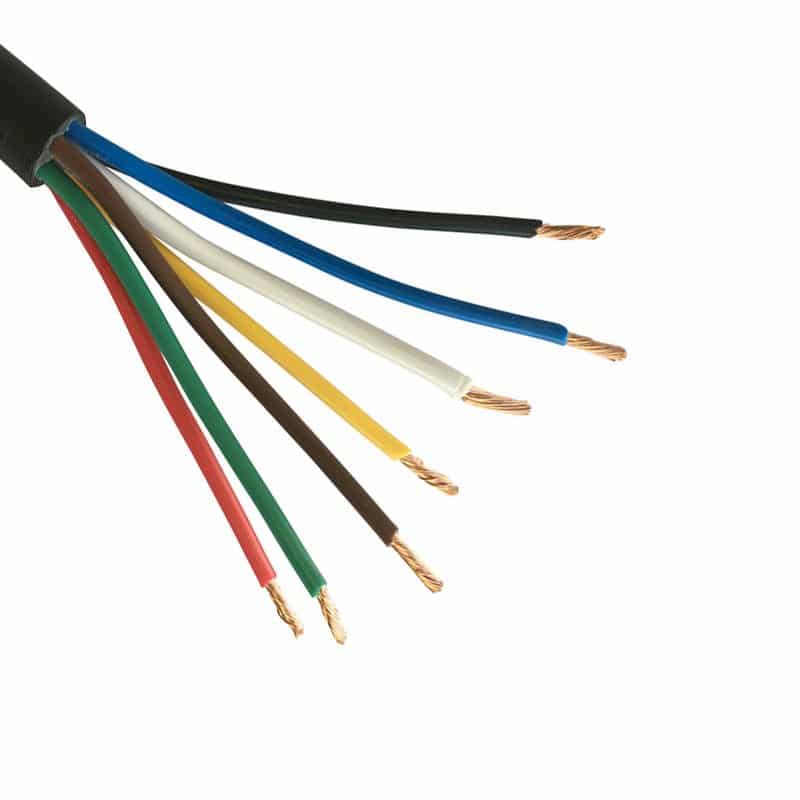

7 Core Automotive High Temp Thinwall Cable - 0.5mm 11A

The 7 Core Automotive High Temp Thinwall Cable (0.5mm, 11A) delivers modern efficiency and robust performance for today's automotive and marine wiring needs. Designed to outperform traditional BS6862 PVC cables, this thinwall solution is the perfect fit for professionals seeking durable, lightweight, and space-saving multi-core wiring.

With seven individual 0.5mm² conductors, each capable of handling up to 11 amps, this cable is an ideal choice for complex 12V and 24V systems where multiple circuits run together. The thinwall design reduces overall cable volume by around 30%, allowing for tighter installation paths and more efficient use of space.

Built with hard-grade, lead-free PVC insulation, the cable performs reliably in a wide temperature range from -12°C to +105°C, withstanding peaks of up to +120°C. Its insulation is also partially resistant to petrol, oils, and diluted acids, making it a go-to option for rugged vehicle and marine environments.

Trusted by OEM manufacturers and commonly used in vehicles post-1995, this cable meets all key international standards for automotive wiring and is a top choice for wiring harnesses and complex installs.

Key Features

• 7 Core configuration ideal for multi-circuit harnesses
• 0.5mm² copper cores, each rated to 11A
• Thinwall insulation reduces size and weight by ~30%
• Hard-grade PVC for extended durability and resistance
• Operating temperature from -12°C to +105°C (up to +120°C peak)
• Works with 12V and 24V DC systems (max 60V)
• Chemical-resistant insulation: handles petrol, oil, and acids
• Trusted by leading OEMs: widely used in modern vehicles
• Conforms to ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B

Specifications

• Cable Type: 7 Core Thinwall Automotive Cable
• Core Configuration: 7 Core Flat/Multicore
• Conductor Size: 0.5mm²
• Amp Rating: 11A per core
• Insulation Material: Hard Grade Thermoplastic PVC, Lead-Free
• Standards Compliance: ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B
• Conductor Material: Plain Copper
• Temperature Range: -12°C to +105°C, excursions up to +120°C
• Voltage Rating: Suitable for 12V / 24V systems (Max 60V)
• Chemical Resistance: Partially resistant to petrol, oils, acids
• Typical Applications: Automotive harnesses, trailers, marine wiring
