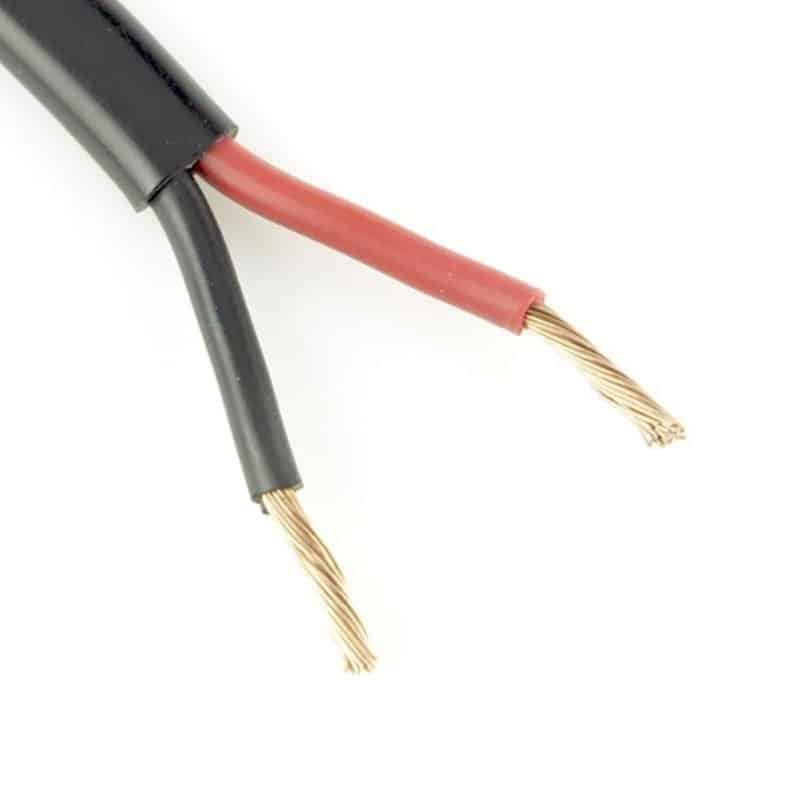

2 Core Flat Automotive High Temp Thinwall Cable - 3mm 33A

The 2 Core Flat Automotive High Temp Thinwall Cable is a modern, technically advanced replacement for traditional PVC BS6862 cables. Designed specifically for high temperature and low voltage use in automotive, marine, and similar industries, this cable offers excellent performance in demanding environments.

Thanks to its thinwall construction, the cable is approximately 30% smaller in volume, making it perfect for tight spaces such as wiring harnesses. The hard-grade thermoplastic PVC insulation ensures a longer lifespan and is lead-free, contributing to safer and more environmentally friendly usage.

Rated to operate between -12°C and +105°C (with excursions up to +120°C), this cable is compatible with 12V and 24V systems (max 60V) and is partially resistant to petrol, lubricating oils, and diluted acids. The flat, flexible design allows for easy installation and routing in modern vehicles, especially those manufactured after 1995.

Used by leading OEMs, the cable offers a higher amp rating than standard cables of the same cross section, potentially allowing you to downsize and reduce costs without sacrificing performance.

Key Features

• High temperature resistance: operates from -12°C to +105°C, with excursions to +120°C
• Thinwall design: approximately 30% less volume, ideal for space-saving installations
• Hard grade thermoplastic PVC insulation:lead-free and highly durable
• Suitable for 12V and 24V low voltage systems (max 60V)
• Higher amp rating (33A) for the 3mm conductor, enabling possible cable downsizing
• Resistant to petrol, lubricating oils, and diluted acids
• Flat, flexible cable design perfect for automotive wiring harnesses
• Complies with ISO 6722 Class B and EN 13602 standards
• Commonly used in vehicles from post-1995 production
• Plain copper conductor for excellent electrical conductivity

Specifications

• Cable Type: 2 Core Flat Thinwall Automotive Cable
• Conductor Size: 3mm²
• Amp Rating: 33A
• Insulation Material: Hard Grade Thermoplastic PVC, Lead-Free
• Standards Compliance: ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B
• Conductor Material: Plain Copper
• Temperature Range: -12°C to +105°C, with excursions to +120°C
• Voltage Rating: Suitable for 12V and 24V systems (max 60V)
• Chemical Resistance: Partial resistance to petrol, lubricating oils, diluted acids
• Application: Automotive, marine, low voltage wiring harnesses
• Cable Design: Flat, thinwall for space saving
