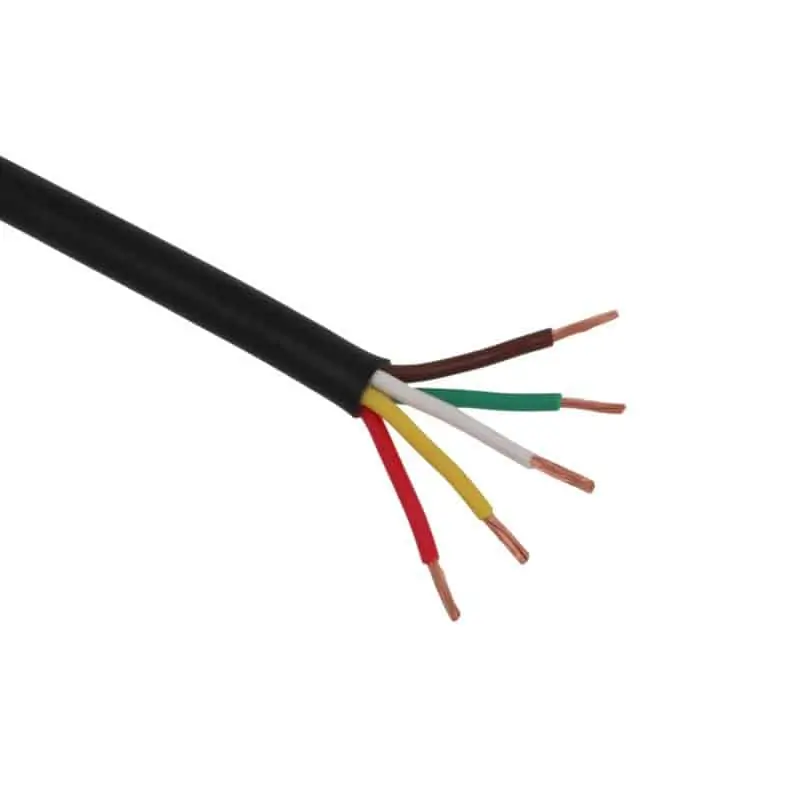

5 Core Automotive High Temp Thinwall Cable - 0.75mm 14A

The 5 Core Automotive High Temp Thinwall Cable is an advanced solution engineered to meet the demanding requirements of modern automotive and marine systems. This cable offers a significant upgrade over older BS6862 PVC cables, providing enhanced durability, higher current handling, and a thinner profile.

Thanks to its space-saving thinwall insulation, this cable uses around 30% less volume than standard automotive cable, making it ideal for wiring harnesses where space is limited. With a 14A current rating per core, it offers the performance needed for reliable power delivery in 12V or 24V systems: all while helping reduce material usage and potential costs.

The cable’s hard-grade thermoplastic PVC insulation is both lead-free and robust, designed to withstand a broad operating temperature range of -12°C to +105°C (with peaks up to +120°C). It's also partially resistant to petrol, lubricating oils, and diluted acids, ensuring long-term resilience in tough environments.

Used widely by OEM manufacturers and often found in vehicles post-1995, this cable meets key international standards and is the go-to choice for professional wiring setups in automotive, marine, and industrial applications.

Key Features

• 5 core design ideal for complex electrical circuits and harnesses
• Thinwall insulation reduces cable volume by up to 30%
• 14A current rating per core with a compact 0.75mm² cross-section
• Durable and flexible for easy installation in tight spaces
• Hard grade, lead-free PVC insulation for extended lifespan
• Temperature rating: -12°C to +105°C, up to +120°C peak
• Resistant to automotive fluids: petrol, oils, diluted acids
• OEM trusted: widely used in vehicles made after 1995
• Complies with ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B

Specifications

• Cable Type: 5 Core Thinwall Automotive Cable
• Core Configuration: 5 Core Flat
• Conductor Size: 0.75mm²
• Amp Rating: 14A per core
• Insulation Material: Hard Grade Thermoplastic PVC, Lead-Free
• Standards Compliance: ISO 6722 Class B, EN 13602, ISO 6722/LV112 Type B
• Conductor Material: Plain Copper
• Temperature Range: -12°C to +105°C, excursions up to +120°C
• Voltage Rating: Suitable for 12V / 24V systems (Max 60V)
• Chemical Resistance: Partially resistant to petrol, oils, acids
• Typical Applications: Automotive, marine, and industrial harnesses
