Description

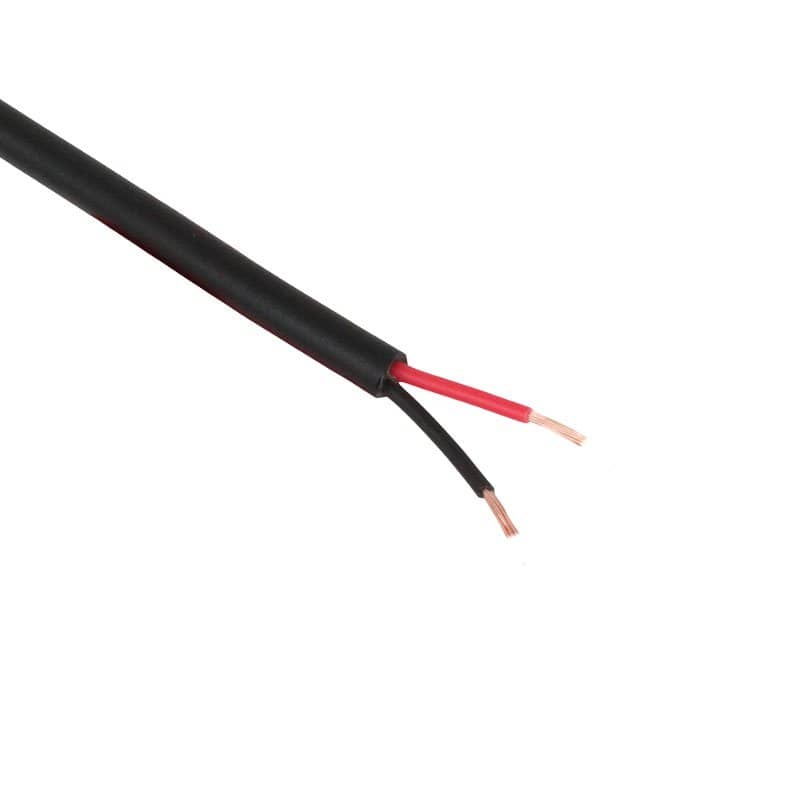

The 2 Core Round Thinwall Automotive Cable – 0.75mm 14A (C201RTW-100BRB) is a high-performance wiring solution for use in automotive, marine, and other low voltage applications. It is a technologically advanced alternative to the traditional BS6862 PVC cables and is widely used by leading OEM manufacturers across Europe.
Constructed with hard-grade, lead-free thermoplastic PVC insulation, this cable complies with ISO 6722 Class B standards and features plain copper conductors for excellent conductivity. Its thinwall insulation allows for up to 30% reduction in volume, providing weight savings and easier routing – especially beneficial in complex wiring harnesses.
Despite its reduced diameter, this cable supports a higher amp rating than older equivalents, allowing for cable downsizing without performance compromise. It operates reliably within a -40°C to +105°C temperature range, with short-term excursions up to +120°C, and is resistant to fuels, oils, and diluted acids—making it ideal for demanding environments.
Designed for vehicles manufactured after 1995, the cable is a durable, efficient, and cost-effective solution for professional and DIY automotive wiring projects.
Key Features
- 0.75mm² conductor cross section with a 14A current rating
- High-temperature thinwall insulation – up to 30% smaller volume
- Lightweight design for efficient vehicle wiring
- Suitable for 12V and 24V systems (up to 60V max)
- Hard-grade, lead-free PVC insulation for increased lifespan
- Fuel, oil, and acid resistant for harsh environments
- Plain copper conductors for superior conductivity
- Compliant with ISO 6722 Class B and EN 13602 standards
- Commonly used in vehicles built post-1995
- Trusted by OEM manufacturers across Europe
Specifications
- Cable Type: 2 Core Round Thinwall Automotive Cable
- Conductor Cross Section: 0.75mm²
- Current Rating: 14A
- Voltage Rating: 12V & 24V systems (up to 60V max)
- Operating Temperature Range: -40°C to +105°C, excursions up to +120°C
- Conductor Material: Plain Copper (C-EPT1, EN 13602)
- Insulation Material: Hard Grade Thermoplastic PVC (Lead-Free)
- Insulation Standard: ISO 6722 Class B, LV112 Type B
- Resistance: Part resistant to fuels, oils, and diluted acids
- Typical Applications: Post-1995 vehicles, marine, industrial wiring
- OEM Usage: Used by leading manufacturers across Europe
