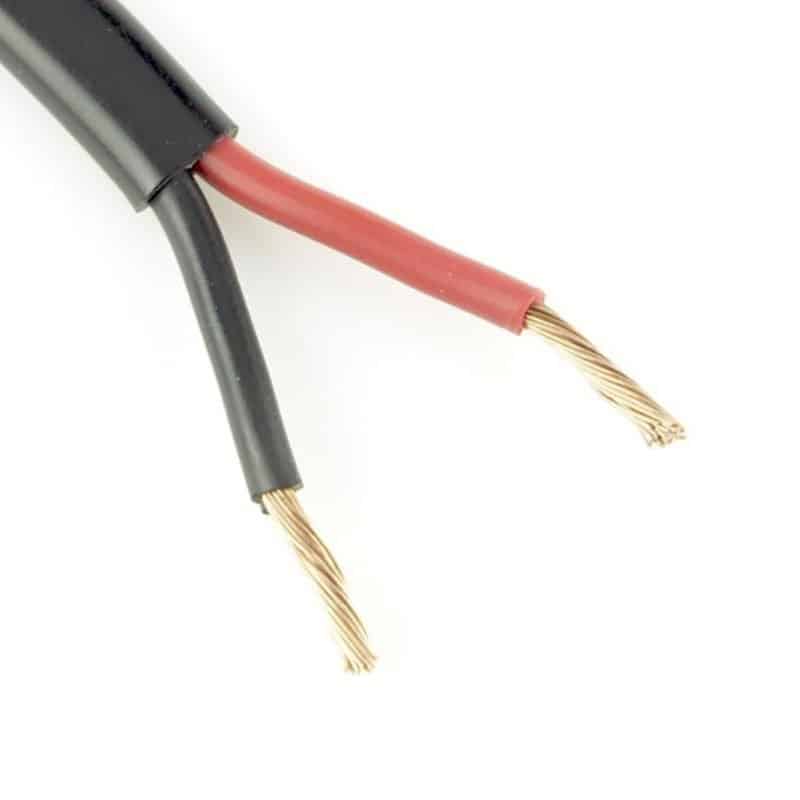

2 Core Flat PVC Cable - 4.5mm 35A

This 2 Core Flat PVC Cable - 4.5mm 35A (C207-100BRB) is designed for robust performance in low voltage automotive and industrial applications. With its flat twin-core configuration, it provides a compact, efficient solution for power distribution in environments where space is limited.

Constructed with plain copper conductors and a durable PVC insulation and sheath, this cable is engineered to perform reliably in conditions ranging from -30°C to +70°C. It is resistant to petrol, lubricating oils, and diluted acids, making it well-suited for harsh automotive or workshop environments.

Operating at up to 35 amps, the cable supports both 12V and 24V systems (maximum 100V), and complies with BS6862 Part 1:1971 standards where applicable. Its design is particularly suitable for use in vehicles manufactured before 1995, where such flat-core configurations were more commonly used.

This reliable and versatile twin-core cable is a go-to choice for automotive electricians, restorers, or anyone maintaining or modifying older vehicles or low voltage systems.

Key Features

• Twin-core flat cable design for space-saving installs
• 4.5mm² cross-sectional area with 35A current rating
• Suitable for 12V and 24V systems, up to 100V max
• PVC insulation and sheath for long-term durability
• Resistant to petrol, oils, and diluted acids
• Operating temperature range: -30°C to +70°C
• Plain copper conductor for reliable conductivity
• Commonly used in vehicles manufactured before 1995
• Manufactured to BS6862 Part 1:1971 (where applicable)

Specifications

• Cable Type: 2 Core Flat
• Conductor Cross Section: 4.5mm²
• Current Rating: 35A
• Voltage Rating: Suitable for 12V & 24V systems (max 100V)
• Operating Temperature Range: -30°C to +70°C
• Conductor Material: Plain Copper
• Insulation & Sheath: PVC
• Fluid Resistance: Petrol, oils, diluted acids
• Typical Applications: Pre-1995 vehicles, auto electrics, low voltage
• Standards Compliance: BS6862 Part 1:1971 (where applicable)
