Authorised Victron Energy InstallerVictron Quattro 48/15000/200-100/100 230V VE.Bus
Victron EnergyExcellent on Google

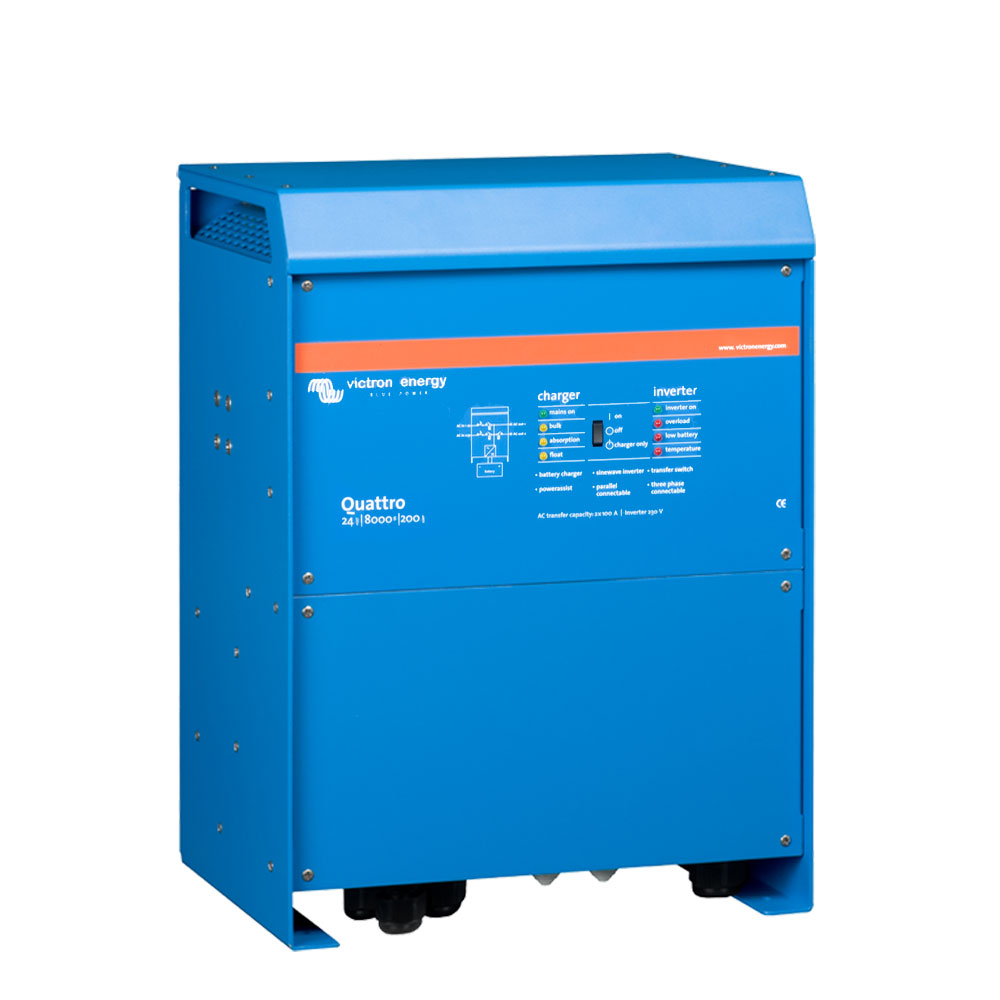

Victron Quattro 48/15000/200-100/100 230V VE.Bus

Victron part no. QUA483150000

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

£2,208.99Available to order, usually dispatched in 6 to 10 working days
Order with a free design check

Book a free 30-minute call with Tom. He will check the design and send you a quote or a basket link.

Excellent on Google5 out of 5, from 34 reviews
  • Authorised Victron Energy InstallerListed on Victron’s own where-to-buy finder.
  • Not sure it suits your build?Book a free 30-minute call with Tom and talk it through before you spend anything.

“Their schematics are incredible and have so much detail.”Callum Cadney-Moon, Google review, February 2026

Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

  • Voltage (V): 48
  • Transfer Switch (A):Yes
  • Cont. Output Power at 25°C (VA): 15000
  • Peak Power (W): 25000
  • Max Efficiency: 96%
  • Zero Load Power (W): 110
  • Charge Current House Battery (A): 200
  • Charge Current Starter Battery (A): 4 (12V and 24V models only)
  • Battery Temperature Sensor: Yes
  • Programmable Relay: 3x
  • Remote on-off: Yes
  • Protection Category: IP21
  • Dimensions: H572 x W488 x D344mm
  • Weight (kg): 72
  • Warranty: 5 Years

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

Monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for hire vehicles and more…

Split phase and three phase capability

Two units can be configured for split phase, and three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 144kW / 180kVA inverter power and more than 2500A charging capacity. For more detail please enter parallel in the search box on our website.

Solar energy: AC power available even during a grid failure

The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.

System configuring

  • In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
  • Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
  • Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
