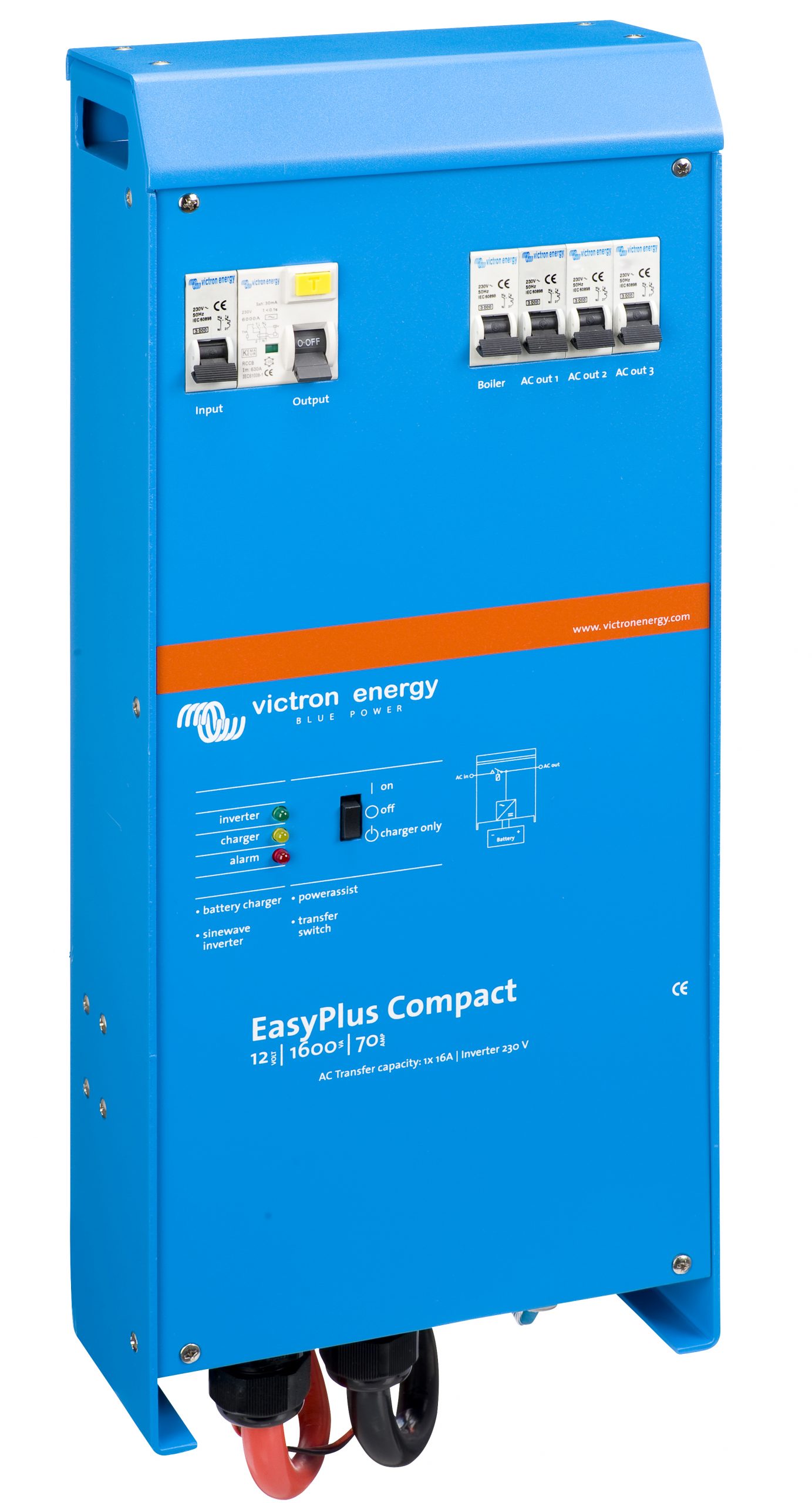

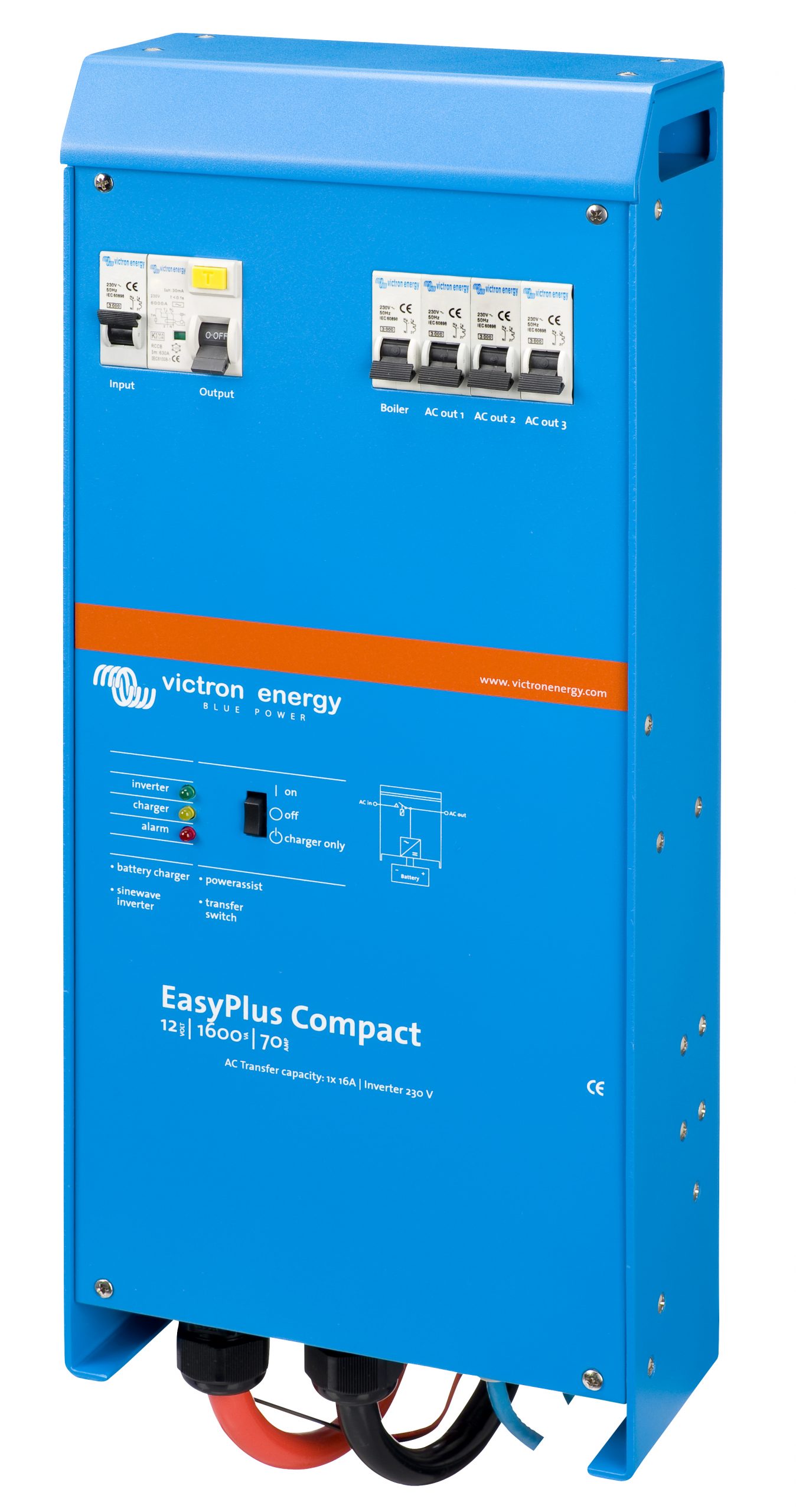

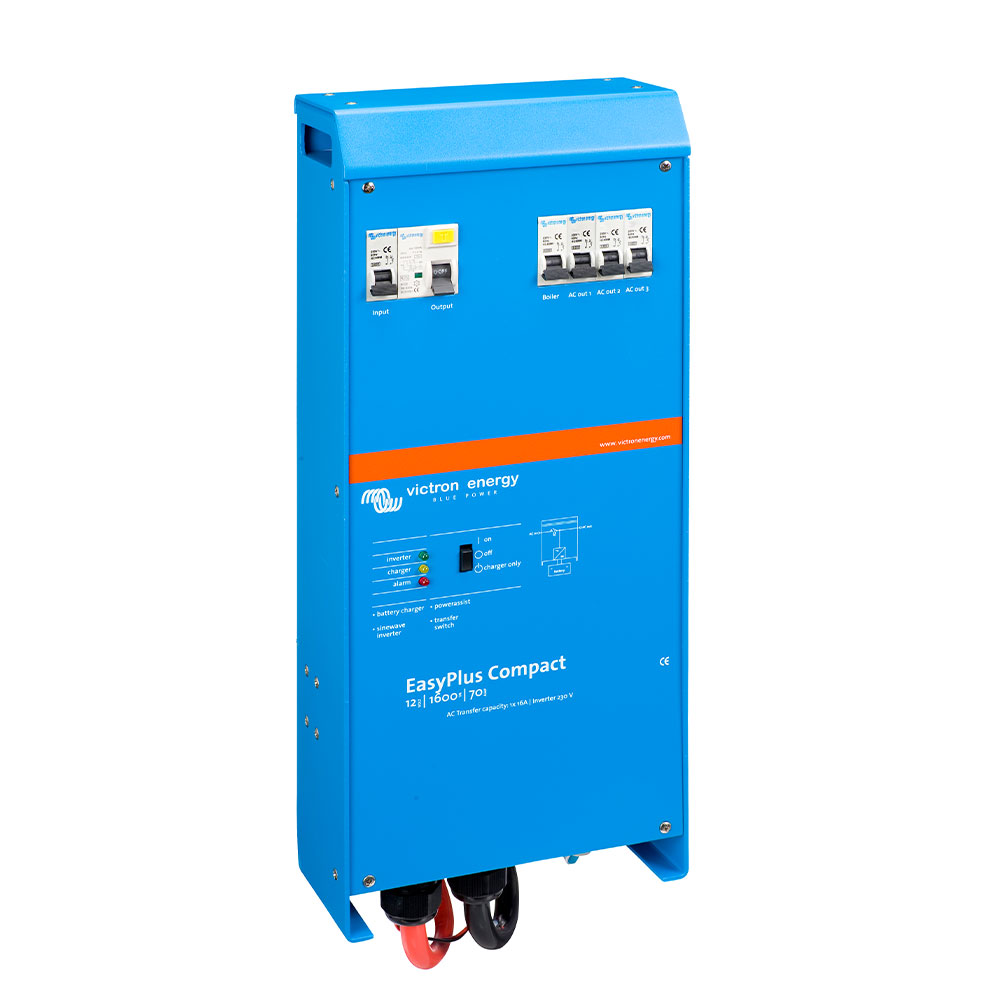

Victron EasyPlus Compact 12/1600/70-16 230v VE.BUS Inverter/Charger

• Weight: 11kg
• Length: 110mm
• Width: 215mm
• Height: 510mm
• Input Voltage: 9.5 to 17 V
• Output Voltage: 230VAC
• Continuous Output Power: 1300W at 25°C
• Peak Output Power: 3000W
• Charger Output Current: 70A
• Frequency: 45 to 65 Hz
• Operating Temperature Range: -40 to +65°C (fan assisted cooling)
• Output Wave Form: Pure Sine Wave
• Warranty: 5 Years

EasyPlus-functional

The EasyPlus is a powerful true sine wave inverter, a sophisticated battery charger that features

adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Beside these primary functions, however, the EasyPlus has several advanced features that

provide a range of new applications as outlined below.

Uninterrupted AC power

In the event of a grid failure, or shore or generator power being disconnected, the inverter

within the EasyPlus is automatically activated and takes over supply to the connected loads.

This happens so fast (less than 20 milliseconds) that computers and other electronic equipment

will continue to operate without disruption.

PowerControl: Dealing with limited generator or shore side power

With a Multi Control Panel a maximum generator or shore current can be set. The EasyPlus will

then take account of other AC loads and use whatever is extra for charging, thus preventing the

generator or shore supply from being overloaded.

PowerAssist: Boosting the capacity of shore or generator power

This feature takes the principle of PowerControl to a further dimension allowing the EasyPlus to

supplement the capacity of the alternative source. Where peak power is so often required only for a

limited period, it is possible to reduce the size of generator needed or conversely enable more to be

achieved from the typically limited shore connection. When the load reduces, the spare power is

used to recharge the battery.

Programmable relay

The EasyPlus is equipped with a programmable relay that by default is set as an alarm relay. The

relay can be programmed for all kinds of other applications, for example as a starter relay for a

generator.
