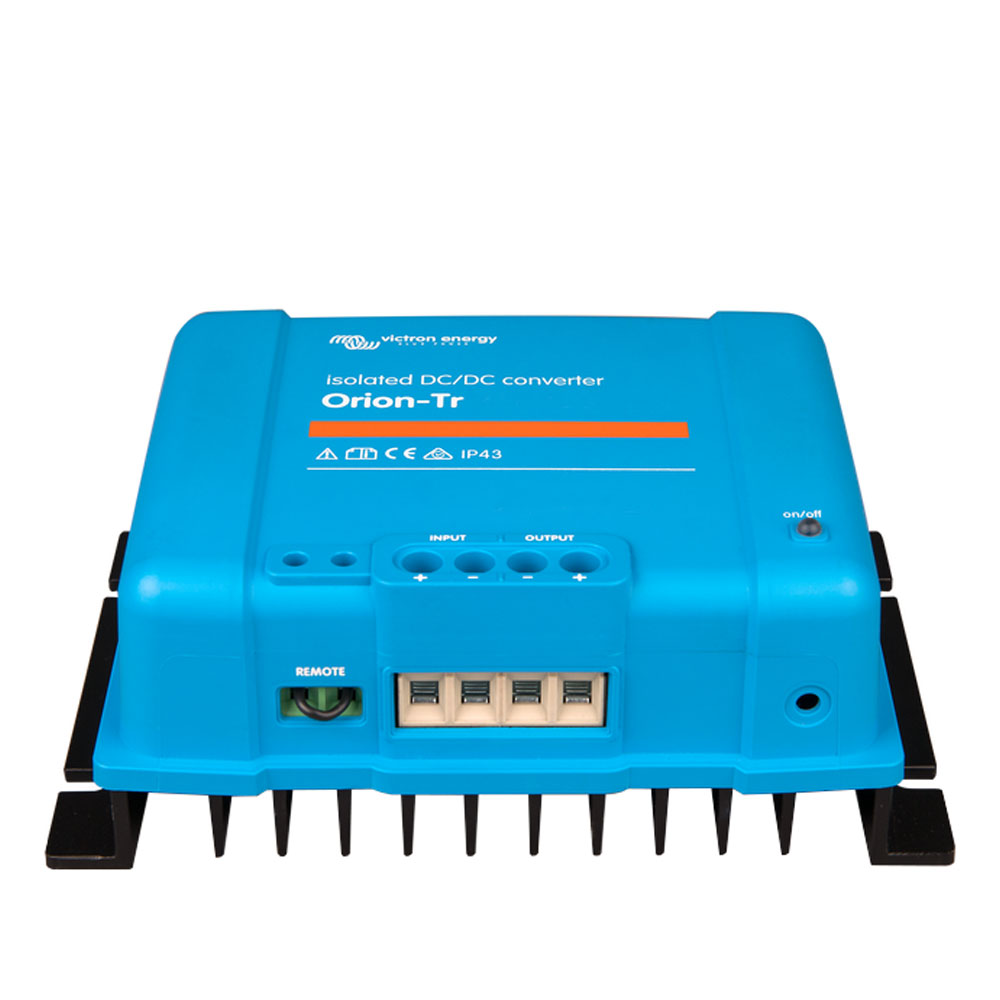

Victron Orion-Tr DC-DC Converter-Isolated 12/12-18A (220W)

Input voltage range: 8-17 V. Under voltage shut down / restart: 7V / 7.5 V. Nominal output voltage: 12,2 V. Output voltage adjust range: 10-15 V. Output voltage tolerance: +/- 0,2 V. Output noise: 2 mV rms. Cont. output current at nominal output voltage and 40°C: 18 A. Maximum output current (10 s) at nominal output voltage: 25 A. Short circuit output current: 40 A. Cont. output power at 25°C / 40°C: 280 W / 220 W.

£104.90In stock · 1 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

Orion-Tr DC-DC converters isolated: 100 Watt series.

Remote on-off - The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger - For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.

All models are short circuit proof and can be paralleled to increase output current - An unlimited number of units can be connected in parallel.

IP43 protection - When installed with the screw terminals oriented downwards.

Screw terminals - No special tools needed for installation.

Input fuse - On 12V and 24V input models only.

  • Galvanic isolation: 200 V dc between input, output and case.
  • Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C).
  • Humidity: Max. 95% non condensing.
  • DC connection: Screw terminals.
  • Maximum cable cross-section: 13 mm² AWG6.
  • Dimensions (HxWxD) / Weight: 130 x 186 x 70 mm / 1.3 kg.
  • Standards:.
  • Safety: EN 60950.
  • Emission: EN 61000-6-3, EN 55014-1.
  • Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2.
  • Automotive Directive: EN 50498.
