Description

DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines)

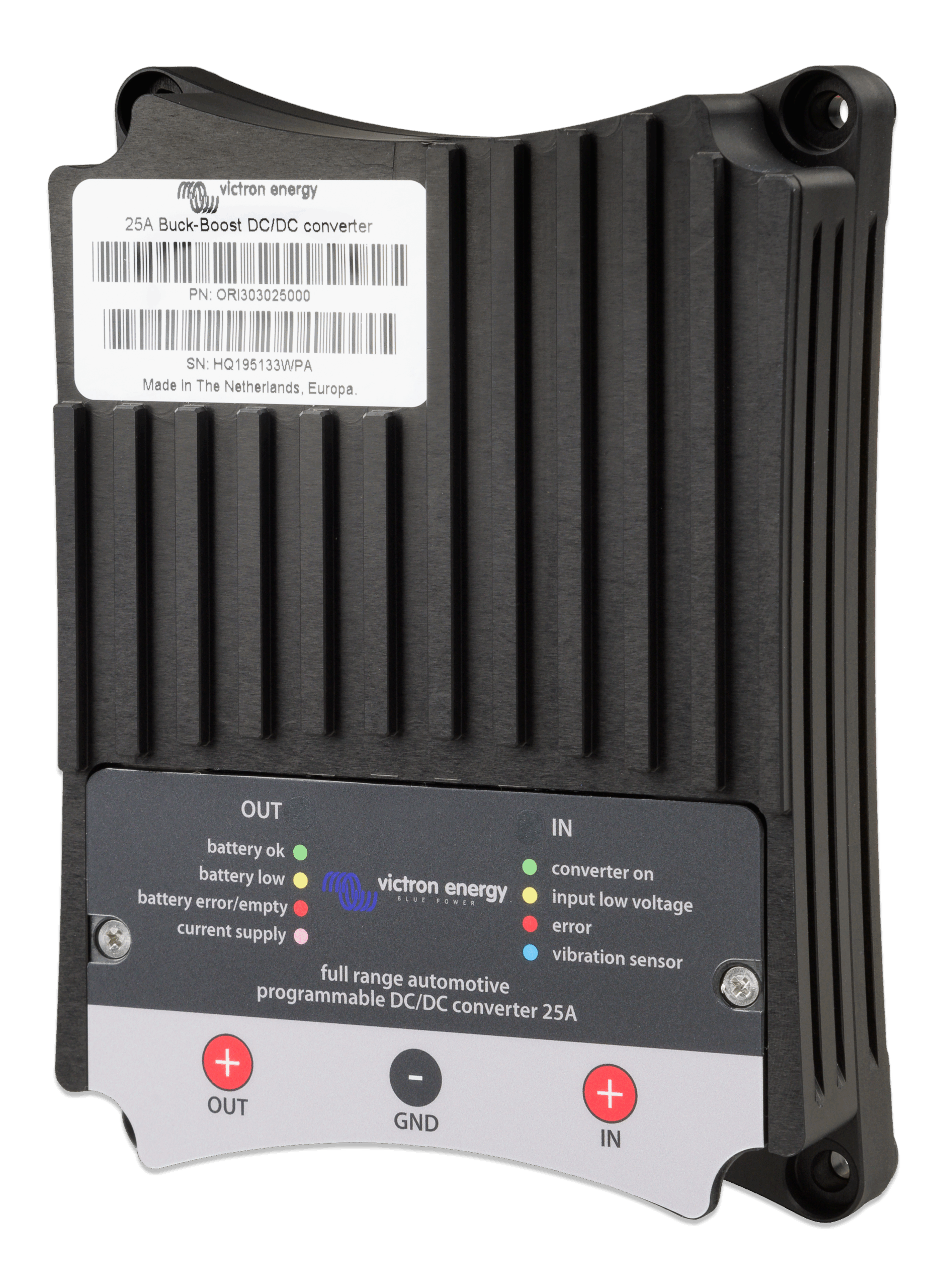

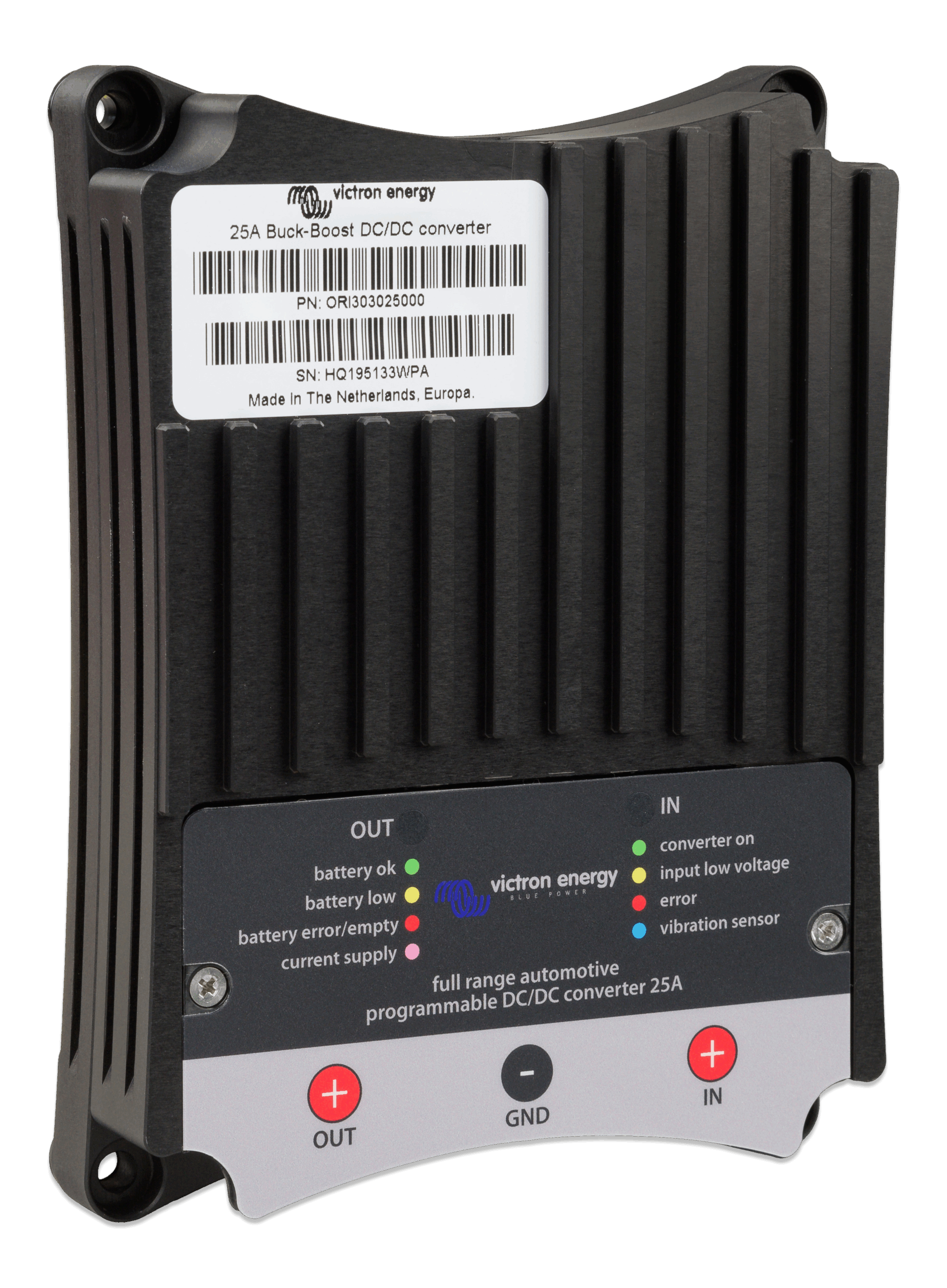

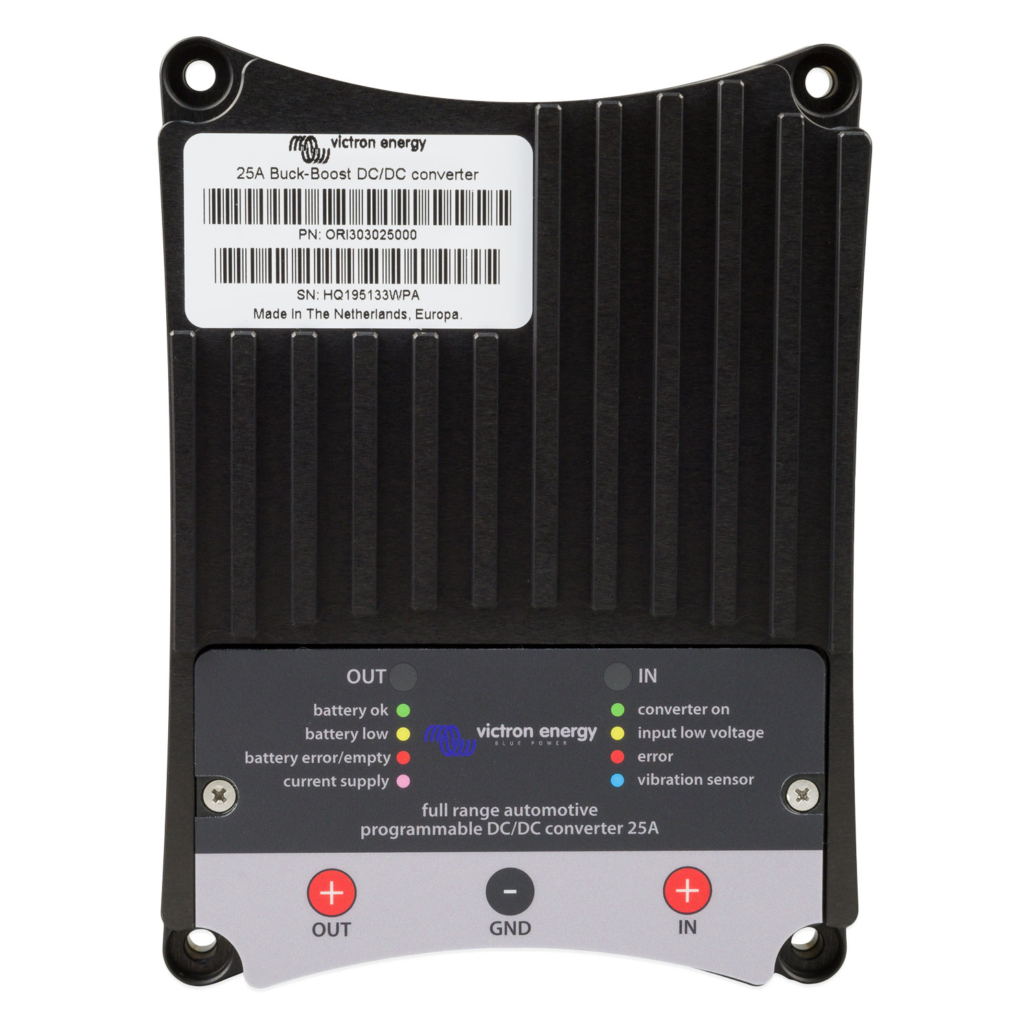

The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.

‘Engine running’ detection system

Deep discharge of the vehicle’s starting battery is avoided by a built-in ‘engine running’ detection system.

Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).

Fully programmable

The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)

One product for 12V, 24V and 12/24V systems

The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.

Charge current and input current limiter

The output current is determined by the following factors:

• The maximum charge current setting.

• The maximum input current setting.

• The maximum operating temperature limit of the converter

Brand

Victron Energy

Manufacturer Part Number

ORI303025000

Input Voltage Range

10-30V

Output Voltage Range

10-30V

Under Voltage Threshold

10V

Max. Input Voltage

30V

Max. Charge Current

12V : 25A, 24V : 15A

Dimensions

L165 x W120 x D30mm

Weight (kg)

0.6

Warranty

5 Years

Country of Manufacture

Netherlands
