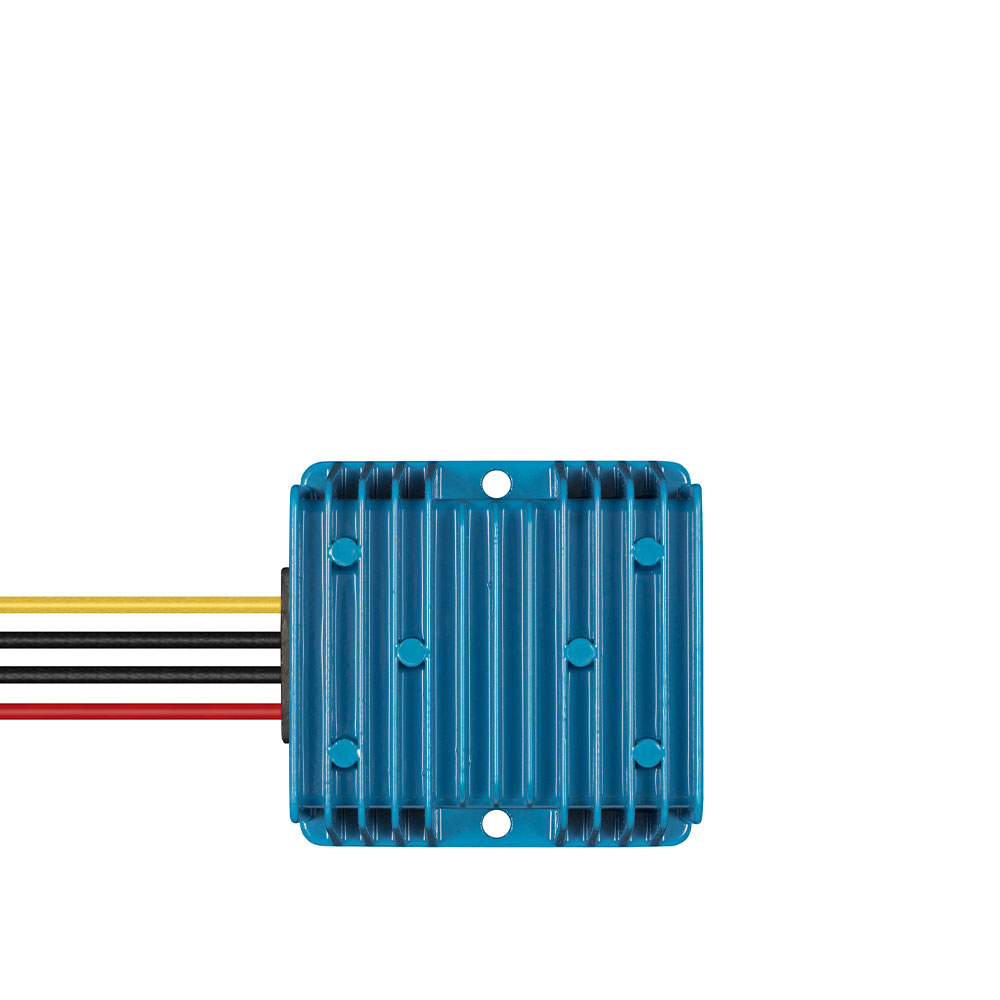

Victron Orion IP67 DC/DC Converter Not isolated 24/12-20A (240W)

Need help with choosing which Orion-TR DC-DC Converter is best for you?  Click here to download an information sheet on available models.

£40.16In stock · 1 available
Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

  • Input Voltage Range: 15-40VDC
  • Under Voltage Shutdown: 13V
  • Under Voltage Restart: 14V
  • Max. Continuous Output Current: 20A
  • Short Circuit Proof: Yes
  • Protection Category: IP67
  • Dimensions: H74 x W74 x D32mm
  • Weight (kg): 0.3
  • Warranty: 5 Years
  • Completely encapsulated: waterproof, shockproof and ignition protected

Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

Extra-long input and output cables

Thanks to the cables of 1.8 metres in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.

Wide input voltage range

With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.

Protected against overheating

It can be used in a hot environment such as a machine room.
