Description

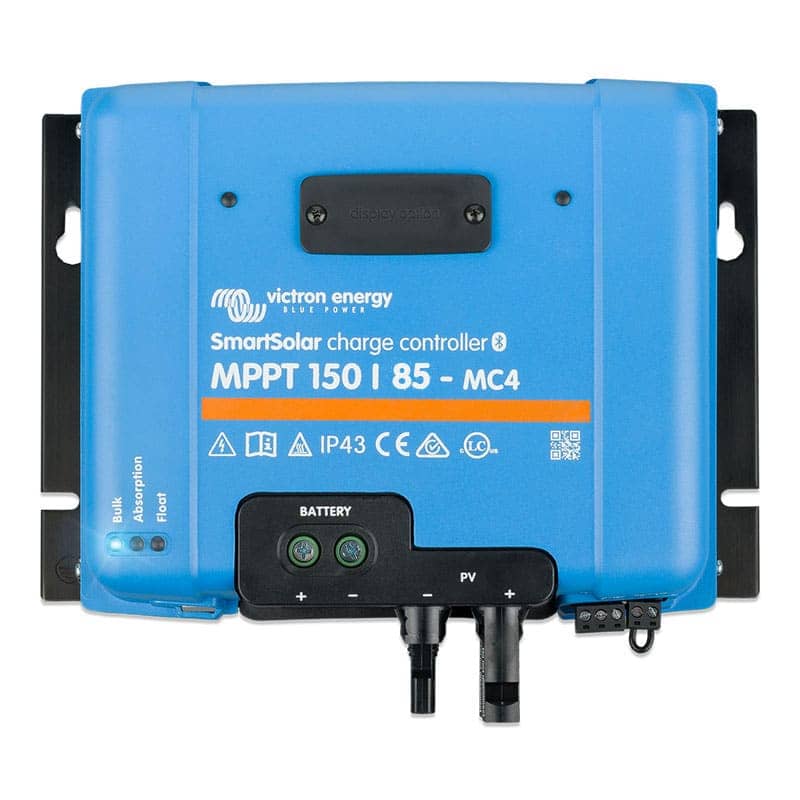

Designed for 12V, 24V, and 48V battery systems, the Victron SmartSolar MPPT 150/85-MC4 VE.Can maximises the efficiency of solar panels using advanced MPPT technology. This ultra-fast tracking ensures optimal power conversion, even in changing weather conditions.
With built-in Bluetooth connectivity, users can monitor and control the system remotely via the VictronConnect App. When paired with a GX device, the Victron Remote Management Portal (VRM) enables access to system performance from anywhere.
The unit supports daisy-chaining multiple controllers using VE.Can technology, ensuring synchronised charging stages and streamlined communication. For added convenience, it offers VE.Direct connectivity for single-unit monitoring and compatibility with GlobalLink 520 for off-grid monitoring.
With a high efficiency of 98%, robust IP43 protection, and a five-year warranty, the Victron SmartSolar MPPT 150/85-MC4 VE.Can is an ideal solution for off-grid solar installations, RVs, boats, and home energy systems.
Key Features
Features of the SmartSolar MPPT 150/85-MC4 VE.Can
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.
Control Your Charger Remotely
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy Chain Additional Units
The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).
For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.
SmartSolar Control Display
The SmartSolar MPPT 150/85-MC4 VE.Can charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: SCC115085511
- GTIN: 8719076050346
- Voltage: 12/24/48V
- Rated Charge Current: 85A
- Nominal PV Power, 12V: 1200W
- Max. PV Short Circuit Current: 70A (max 30A per MC4 conn.)
- Max. PV Open Circuit Voltage: 250V absolute maximum coldest conditions 245V start-up and operating maximum
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Efficiency: 98%
- Bluetooth Enabled: Yes
- Dimensions: H246 x W295 x D103mm
- Weight: 4.5Kg
- Warranty: 5 Years
- Country of Manufacture: India
